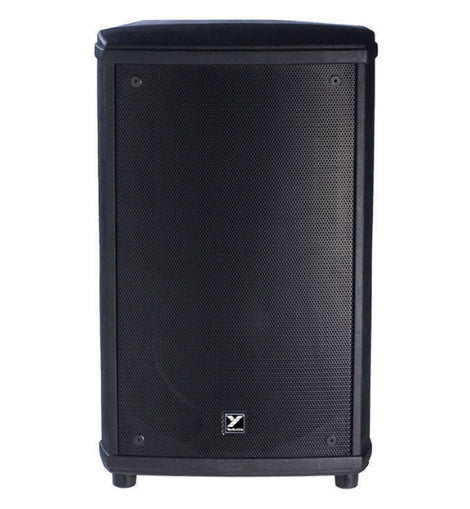

Yorkville Sound NX55P-2 12-Inch 2-Way Powered Loudspeaker (12 Inch)

NX 12" Powered Loudspeaker

NX loudspeakers have earned a reputation for proven reliability for over twenty years. The traditional analog design works equally well as a front-of-house speaker or stage monitor. Featuring a 12" woofer and 2000 watts of peak power (1000 watts program), the NX55P-2 is the most powerful speaker in the NX series. The rear panel features a master level control, a selectable LF roll off for use with a subwoofer or as a vocal monitor, and a switchable onboard mixer section. When enabled, this provides an XLR microphone input and 1/4" line inputs with level controls and 2-band EQ. Link inputs and outputs provide balanced connectivity to other cabinets. Up to three onboard mixers can be active in a linked system, providing up to three mic and six line inputs without requiring an external mixer. The NX55P-2's inputs and controls are well-protected so that it can be used in any orientation. It was carefully designed for low operating temperatures and reduced heat production to be placed close to walls, floors, and other speakers.

General Features:

• 2000 W Peak Power (1000 W Program)
• 12" LF Driver with 3" Voice Coil
• 1.4" HF Driver
• 1x XLR Mic Input, 2x 1/4" Line Inputs, 1x XLR and 1x 1/4" Link Inputs
• 1x XLR and 1x 1/4" Link Outputs
• Integrated Mixer with 2-Band EQ
• Switchable LF Rolloff for Use with Subwoofers
• Integrated Flying Hardware
• Made in Canada

• System Type: Powered Loudspeaker
• Power Rating: 2000 W Peak (1000 W Program)
• Biampable: Self-Powered
• Biamp Operation Only: Yes
• Sensitivity (dB AT 1Watt/1m): 100 dB
• Max SPL: 134 dB Peak (128 dB Continuous)
• Frequency Response (Hz +/- 3dB): 45 Hz - 18 kHz
• Crossover Frequency: 2 kHz
• HF Driver(s): 1.4" Aluminum Diaphragm, 1" Exit
• HF Dispersion (°H x °V): 80° x 50°
• HF Protection: Thermal / Peak Limiter
• LF Driver(s): 12" with 3" Voice Coil
• LF Protection: Thermal / Overcurrent
• HF Amplifier Type: 2-Tier Class H
• LF Amplifier Type: Class D
• Power Consumption (typ/max): 120 / 310 VA
• Inputs: 1x XLR (Mic)
• 2x 1/4" (Line / CD)
• 1x XLR
• 1x 1/4" Link Inputs
• Input Sensitivity (Vrms Sine): 1.23 Vrms Sine, +4dBv
• Controls: Master Level, LF Rolloff (60 Hz / 100 Hz)
• Mixer On / Off
• Mic Level
• Line / CD Level
• Treble
• Bass
• Mixer Controls: Line Level
• Mic Level
• Bass
• Treble
• Limiter: Yes
• LED Indicators: Power, Clip, Limit
• Bar Handles: 1 (Side)
• Flypoints : 4 (2x Top, 2x Bottom), 1x Pullback
• Flying Hardware: 1/4-20
• Optional Flying Hardware: NXF Flyware
• Pole Mount Adapter (1 3/8 1 (Bottom)
• Enclosure Materials: Molded Polypropylene
• Dimensions (DWH) : 12.25" x 16" x 26.5" (31.1 cm x 40.6 cm x 67.3 cm)
• Weight: 41 lbs / 18.6 kg
