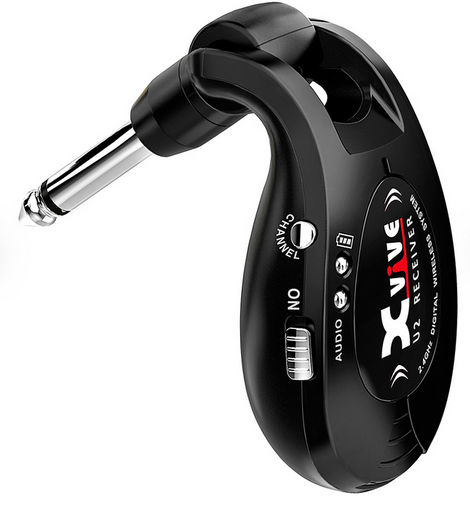

Xvive Audio U2R Receiver Used with a U2 Transmitter

THE SYSTEM

The system comprises a transmitter unit, which connects to your audio source (typically an electric guitar or bass), and a receiver, which connects to an amplifier, effect pedal/pedalboard, DI box, or audio interface.

PRESERVE YOUR TONE

The U2 system features crystal-clear 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz and a signal-to-noise ratio of 107 decibels. Going wireless with the U2 system will not compromise your precious tone!

TAKE CHARGE

The internal battery in the transmitter and receiver lasts 5 hours. Both units can be easily charged simultaneously using the included dual-USB cable and any standard 5V USB charger. Depending on the charger's current, charging takes between 1.5 and 2.5 hours.

APPLICATIONS

U2 can be used to replace any ¼” instrument cable. The most common application is to wirelessly run a guitar or bass to an amplifier—in a live performance, at home or in the studio. But there’s a lot more you can do with the U2 System!

UNCHAINED

Going wireless at home is liberating, especially if you feel most comfortable with your instrument in hand. Wander from room to room, sit anywhere, stretch your legs… you’re free. When recording at home or in the studio, having less cables means no tangles—and no tonal compromise thanks to the system’s 24-bit audio.

QUICK SWITCH

If you have more than one transmitter, you can connect one to each guitar. When switching guitars, power off the transmitter before you remove the first guitar, then power on the second unit as you strap on the second guitar. Just make sure all units are set to the same channel!

General Features:

• WIRELESS TYPE
      2.4 GHz ISM worldwide open band
• BIT DEPTH/SAMPLE RATE
      24-bit / 48 kHz
• SWITCHABLE CHANNELS
      4
• SIMULTANEOUS CHANNELS
      4
• FREQUENCY RESPONSE
      20 Hz – 20 kHz (-3dB)
• DYNAMIC RANGE
      103 dB (-3 dB)
• SIGNAL-TO-NOISE RATIO
      103 dB
• TOTAL HARMONIC DISTORTION
      0.2%
• LATENCY
      5 ms
• OPERATING RANGE
      21.3 m / 70 ft (line-of-sight)
  TRANSMITTER
• CONNECTOR
      1/4" TS
• DIMENSIONS
      75 x 44 x 30 mm / 2.95" x 1.73" x 1.18" (with plug extended, L: 123 mm / 4.84")
• WEIGHT
      40.7 g / 1.43 oz
• MUTE
      Yes

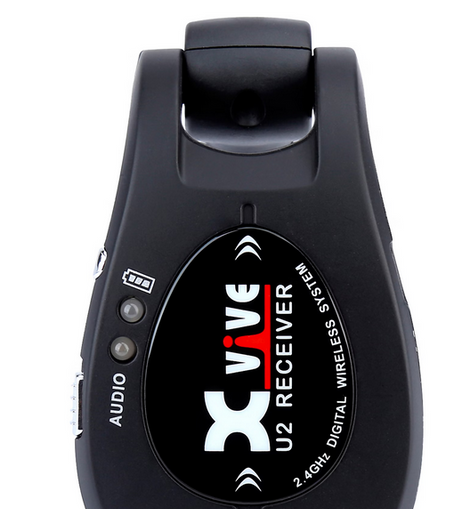

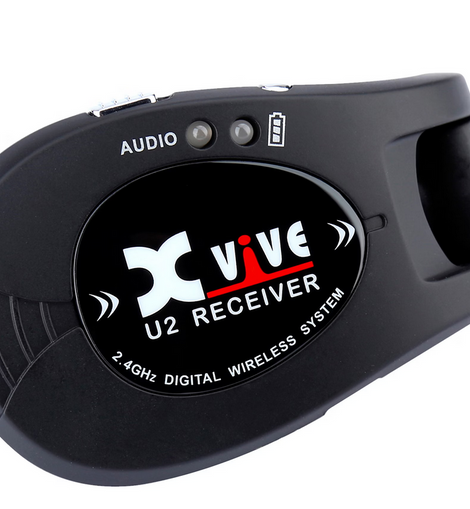

  RECEIVER
• CONNECTOR
      1/4" TS
• DIMENSIONS
      75 x 44 x 30 mm / 2.95" x 1.73" x 1.18" (with plug extended, L: 123 mm / 4.84")
• WEIGHT
      40 g / 1.41 oz
  BATTERY
• TYPE
      Rechargeable Lithium-ion (internal)
• BATTERY LIFE
      5 hours
• CHARGING TIME
      2 hrs (full charge)
• CHARGING VOLTAGE
      5V (USB)
• USABLE WHILE CHARGING
      Yes
• U2 Guitar Wireless System
• U2T Transmitter - Black

• Compact and lightweight transmitter for sending a wireless signal to a U2 Receiver
• Add to a complete U2 system when using two or more instruments on a gig
• High-fidelity 24-bit / 48 kHz digital audio
• Ultra-low latency of 5 ms
• Wireless signal broadcasts on the 2.4 GHz band over a range of 70 ft
• Onboard rechargeable lithium battery lasts for 5 hours
• Model Number: U2TBLACK
