Universal Standard Cab Truck Alpine W12D4 Single 12" Loaded Sub Box Enclosure
Alpine W12S4 12" Loaded Subwoofer Bundle with Absolute SAG12 Single Sealed Truck Enclosure
Upgrade your vehicle's bass performance with this complete Alpine Bass Package, featuring the Alpine W12S4 12-inch Single 4-Ohm Subwoofer pre-installed in the Absolute SAG12 Single 12-inch Sealed Truck Enclosure. Designed for regular cab trucks and vehicles with limited space, this bundle delivers deep, accurate bass while maintaining a compact footprint.
The Alpine W12S4 combines a Polypropylene-Mica cone, high-excursion poly-foam surround, and Progressive Wavelit Rib (P.W.R.) cone technology for tight, controlled bass and outstanding durability. Housed in the rugged Absolute SAG12 5/8" MDF sealed enclosure, this package is ready to enhance your factory or aftermarket audio system.
Features
-
Complete 12" loaded subwoofer package
-

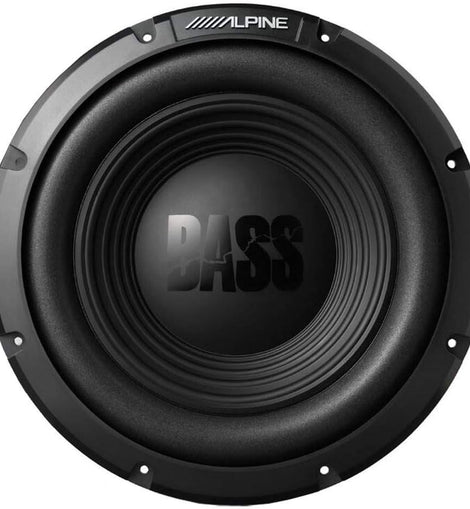

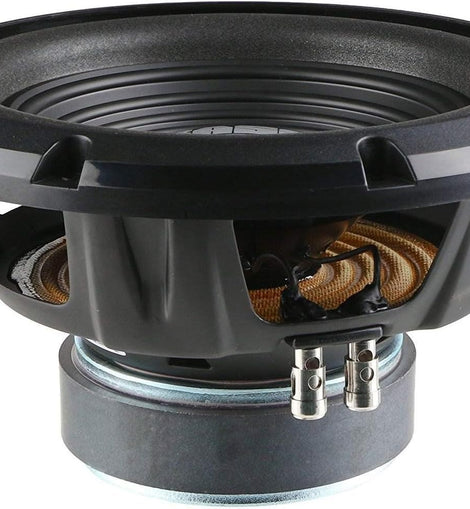

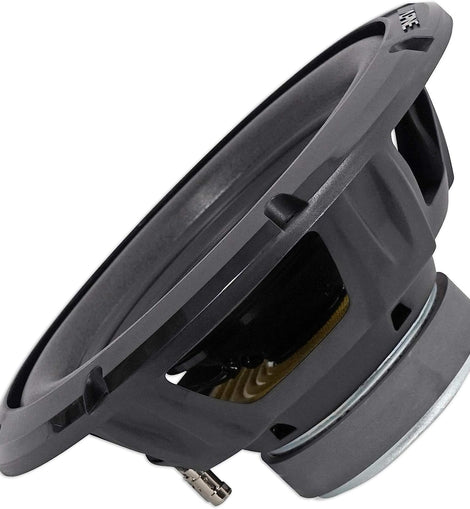

Alpine W12S4 12" Single 4-Ohm Subwoofer
-
Absolute SAG12 Single 12" Sealed Truck Enclosure
-
High-excursion Poly-Foam Surround
-
Polypropylene-Mica Cone
-
Progressive Wavelit Rib (P.W.R.) Cone Design
-
High-strength Steel Basket
-
Heavy-duty 5/8" MDF Sealed Enclosure
-
Carpeted Finish
-
Spring Terminal Connections
-
Ideal for Regular Cab Trucks and Compact Installations
Subwoofer Specifications
-
Model: W12S4
-
Speaker Size: 12"
-
Voice Coil: Single 4 Ohms
-
Peak Power Handling: 750 Watts
-
RMS Power Handling: 250 Watts
-
Recommended Amplifier Power: 50-250 Watts RMS
-
Cone Material: Polypropylene-Mica
-
Surround: High-Excursion Poly-Foam
-
Voice Coil: 2"
-
Magnet Weight: 52 oz.
-
Frequency Response: 22Hz-200Hz
-
Resonance Frequency (Fs): 30Hz
-
Sensitivity: 87.9 dB
-
Mounting Depth: 5-5/16"
-
Cutout Diameter: 10-5/8"
Recommended Enclosure Volume
-
Sealed: 1.09 ft³
-
Ported: 1.91 ft³
Enclosure Features
-

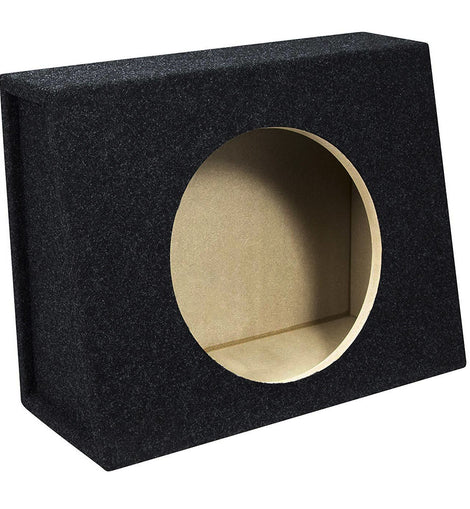

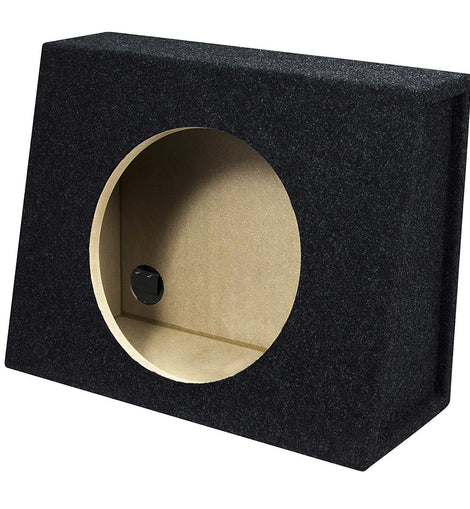

Model: Absolute SAG12
-
Single 12" Sealed Enclosure
-
Constructed from 5/8" MDF
-
Fully Carpeted Finish
-
Heavy-Duty Spring Terminal
-
Compact Angled Design
-
Ideal for Regular Cab Trucks and Space-Saving Installations
Applications
-
Factory audio upgrades
-
Truck bass systems
-
Compact audio installations
-
Cars
-
Regular Cab Trucks
-
SUVs
-
Hatchbacks
Package Includes
-
1 × Alpine W12S4 12" Single 4-Ohm Subwoofer
-
1 × Absolute SAG12 Single 12" Sealed Enclosure
-
Adhesive Foam Gasket
-
Installation Hardware
-
Owner's Manual
