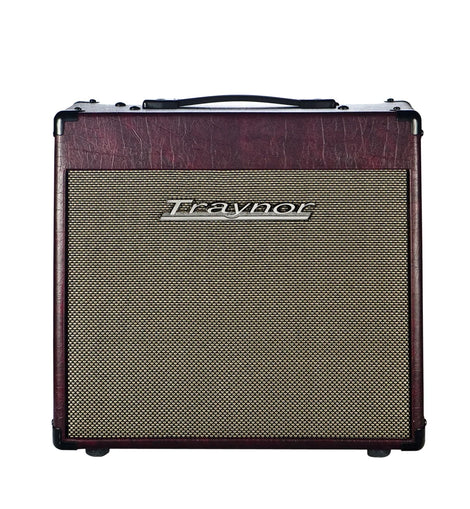

Traynor YCV20WR 15 Watt All-tube Guitar Combo – Wine Red
Traynor YCV20WR 15 Watt All-tube Guitar Combo - Wine Red
The Traynor Custom Valve 20WR answers the need for guitar players looking for superior sounding all-tube tone in a smaller, yet still feature loaded, lower-powered amplifier.
The Traynor Custom Valve 20WR is perfect for the studio or for any gig where 15 tube watts is more than enough power, but full functionality is required. Unlike competitive amplifiers in this class, the YCV20WR offers the discriminating player two discrete footswitchable channels with true independent gain and volume controls on each channel. A master three band EQ, effects loop, as well as an internal spring reverb are all standard equipment. Additional controls include bright switch on the clean channel and boost switch on the lead channel.
The YCV20WR is a "Class A" power amplifier driven by three EL84's and two 12AX7A's and features a Celestion "Greenback" G12M 12 speaker for classic tone.
General Features:
- Class "A" Cathode bias amplifier
- DC filaments on preamp tubes eliminate hum
- Fully regulated power supply with tube rectifier emulation
- Long Accutronics spring reverb

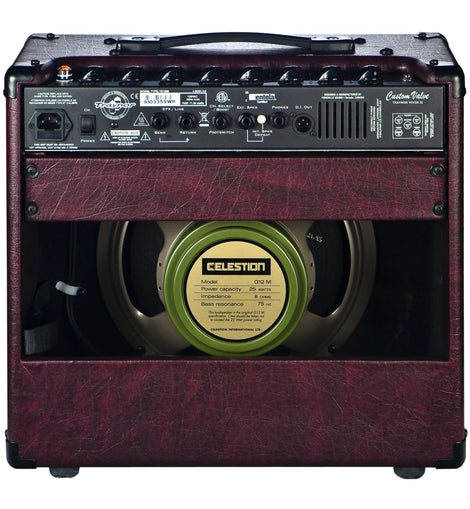

- Classic Celestion G12M "Greenback" speaker
- Speaker jack and selectable defeat for disabling the internal speaker
- Headphone jack for silent practicing
- D.I. output for connections straight to the board
- Custom design "Chicken Beak" knobs
- All plywood enclosure
- Wine red leatherette finish
- Oatmeal grille cloth on perf-steel grill
- TFS-2B Traynor dual footswitch included
- Made In Canada
Specifications:
| Cabinet Impedance (Ohms) | 8 |
| Power @ min. impedance (Watts) | 15 |
| Minimum Impedance (Ohms) | 4 |
| Speaker Configuration - LF | 12-inch / 40 Watts |
| Preamp Tube | 3 x 12AX7WA |
| Power Amp Tube | 2 x EL84 |
| Inputs | 2 |
| Channel 1 - Inputs | 1/4-inch phone |

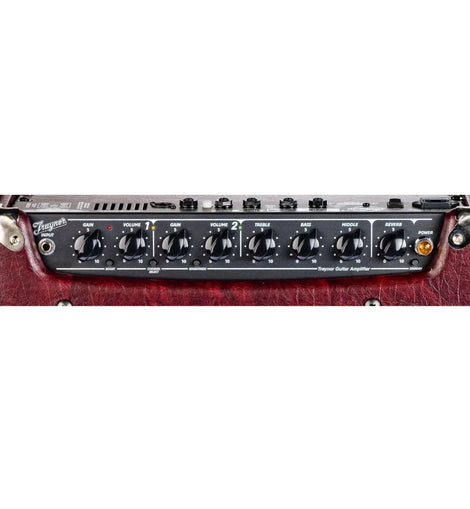

| Channel 1 - Controls | Gain, Volume, Treble, Bass, Middle |
| Channel 1 - Switches | Boost |
| Channel 2 - Inputs | Shares channel 1 input |
| Channel 2 - Controls | Volume, Treble, Bass, Middle |
| Channel 2 - Switches | Channel Select, Brightness |
| Channel Switching | Yes |
| Main Tone Controls | Presence, Reverb |
| Line Out (type / configuration) | 1/4-inch TRS / Rear (Effects Send) |
| Effects Volume | Yes |
| Effects Loop / Location | Yes / Rear |
| Effects Footswitch / Function | Yes / Channel Select, Boost |
| Internal Reverb / Effects | Spring Reverb |
| LED Indicators | Channel Select, Boost, Power, Standby |
| External speaker output / location | 1/4-inch / Rear |
| Dimensions (DWH, inches) | 9.5 x 23 x 18 |
| Dimensions (DWH, cm) | 24 x 58 x 46 |
| Weight (lbs / kg) | 49.8 / 22.6 |
**Specifications subject to change without notice
