Use the mute function/level control on the rear channels when you want a better sense of what's going on around you without losing all your tunes or adjust the output level of a subwoofer. Add additional amplifiers with minimal wiring thanks to the Aux output RCA's, and you can even stream Bluetooth directly to this mighty amp just by adding an iSimple ISBT23 Weather Proof BT receiver to your set-up.

General Features:

• Target Voltage: 8-16 Volts
• 350x2 at 4 Ohm 175x4 at 2 Ohm 125x4 at 4 Ohm
• 3CH MODE: 350x1 at 4 Ohm + 175x2 at 2 Ohm or 125x2 at 4 Ohm

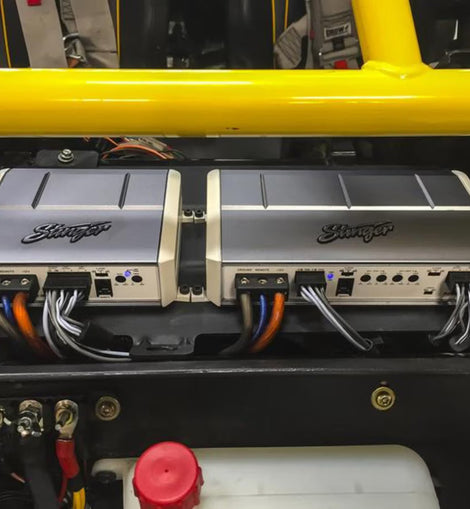

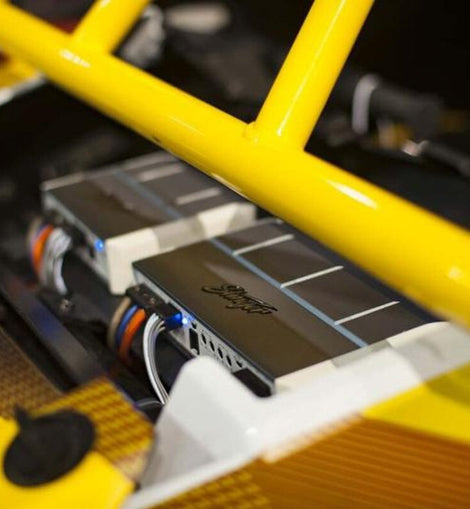

• Perfect for motorcycles, ATV, marine and mobile applications
• Small footprint with a low profile
• IPX-4/5 weather-resistant design
• Full-range Class D
• Unregulated power supply

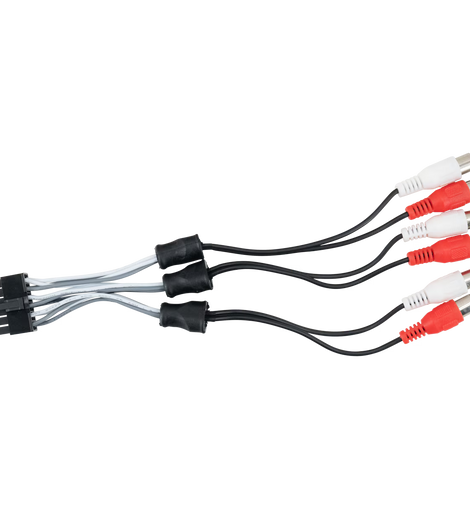

• Aux RCA output (to link to additional amplifiers)
• Diecast endcaps with removable mounting feet
• Volume control with mute function (rear channels only)
• Robust 16 gauge Marine Grade harness with quick connectors for seamless installation

RMS Power (14.4Vdc ≤1% THD):

• 125 x 4 @ 4 ohm Stereo
• 175 x 4 @ 2 ohm Stereo
• 125 x 2 @ 4 ohm Stereo +
• 350 x 1 @ 4 ohm Bridged* (Rear Channels only)

Lowest Recommended Load:

4 ohm Bridged* or 2 ohm Stereo

Specifications:

• Frequency Response: ± 1dB from 20Hz to 20kHz
• Signal to Noise Ratio: >110dB
• High and Low Pass Crossovers: 12dB per Octave
• Low Pass Crossover Range: 40Hz to 400Hz
• High Pass Crossover Range: 40Hz to 400Hz
• Input Range: 200 millivolts to 12 volts
• Typical Efficiency: 80%
• Damping Factor: Greater than 200
• Recommended Fuse Size: 60 amp
• Power/Ground Wire Size: 8 Gauge
• CASE HEIGHT (INCH): 8.75


• CASE LENGTH (INCH): 15


• NET WEIGHT (KG): 9.66


• GROSS WEIGHT (LB): 25.65


• GROSS WEIGHT (KG): 10.2
