Soundstream BXT1.5000D Built-in Digital Bass Reconstruction Amplifier

Features:

1-OHM MINIMUM IMPEDANCE STABILITY

An amplifier’s impedance stability is its ability to continuously power speaker(s) of no less than the given impedance per channel without the risk of damage. Subwoofers are available in various voice coil configurations and impedances, so be sure yours will be no less than 1 ohm.

ACTIVE 12DB/OCTAVE CROSSOVERS & PHASE SHIFT

Active crossovers built into an amplifier are the most efficient crossovers to use in-car audio systems. Active crossovers protect speakers from damage by harmful frequencies and preserve optimum performance.

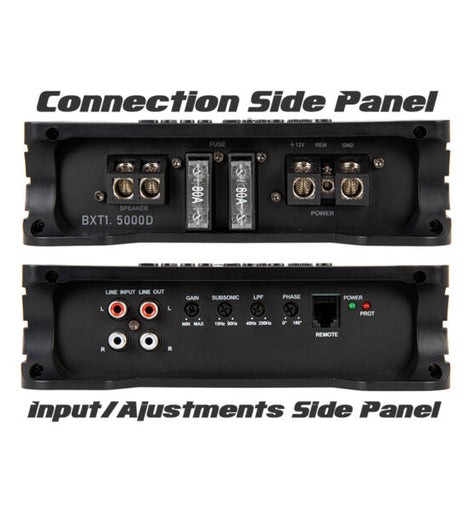

LOW-LEVEL RCA INPUT & PRE-AMP OUTPUT

Connect the car stereo's low-level (pre-amp) audio output to the amplifier using good quality twisted pair RCA interconnect cables. The amplifier pre-amp output daisy-chains the audio signal to multiple amplifiers of complex audio systems.

SWEEP Control

selects the frequency boosted by the equalizer. This is the “center frequency,” which can be as low as 27Hz or 63Hz. Choosing this frequency depends on your taste in music.

WIDTH Control

increases or decreases the bandwidth range, or “Q,” boosting frequencies near the “center frequency.” Narrow Q focuses on harmonics immediately surrounding the center frequency. Wide Q unlocks harmonics all around the center frequency.

MAX BASS INDICATOR

lights above the equalizer controls are a visual representation of the boost level. Bright, continuous illumination indicates maximum bass enhancement levels have been reached. Remember, more isn’t necessarily better…

DASH MOUNT CONTROL

Included with this amplifier can be mounted anywhere in the vehicle, but near the driver seat is recommended. The output level of the Bass Equalizer can be controlled, as well as the amp.
