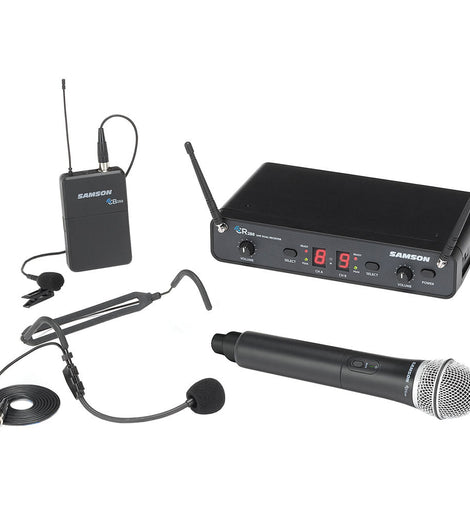

Samson SWC288ALL-I Dual Channel Wireless All-In-One System I-Band
Samson SWC288ALL-I Dual Channel Wireless All-In-One System I-Band
ITEM DESCRIPTION
- Concert 288 All-In-One System
- Dual-channel, high-performance UHF wireless system
-
1/4" audio cable, AC adapter and rackmount kit included
CR288 Wireless Receiver - Multiple frequency options for interference-free performance in any environment
- Up to 24 systems can be operated simultaneously (region dependent)
- Separate Volume controls for each wireless signal
- Dual balanced XLR outputs for routing signals to two separate mixer channels
-
1/4" unbalanced mix output to combine signals to one output channel
CH288 Handheld Transmitter - Q6 Dynamic Microphone capsules
- Offers up to eight hours of battery life using two AA batteries
-
300' operating range
CB288 Beltpack Transmitter - LM5 Lavalier Microphone with locking connector
- HS5 Headset Microphone with locking connector
- Offers up to eight hours of battery life using two AA batteries
-
300' operating range
Specifications:
- System
- Working Range: 300' (100m) line of sight
- Audio Frequency Response: 50Hz - 15kHz
- T.H.D. (Overall): <1% (@AF 1kHz, RF 46dBu)
- Dynamic Range: >100 dB A-weighted
- Signal to Noise: >85 dB
- Operating Temperature: 14° to +140°F (-10° to +60°C)
-
Tone Key Frequency: 32.768 kHz
CB288 Belt pack Transmitter - Input Connector: Mini-XLR (P3)
- Input Impedance: 1MΩ
- Input Gain Range: 38 dB
- RF Power: 10 mW EIRP
- Power Requirements: Two AA (LR6) alkaline batteries
- Battery Life: 8 hours
- Dimensions (HxLxD): 3.75 x 2.44 x 0.75" (96 x 62 x 18.5mm)
-
Weight: 0.2Lbs (93g)
CH288 Handheld Transmitter - Microphone Element: Q6 Dynamic
- Input Gain Range: 28 dB
- RF Power: 10 mW EIRP
- Power Requirements: Two AA (LR6) alkaline batteries
- Battery Life: 8 hours
- Dimensions (HxØ): 10.23 x 2.1" (260 x 54mm)
-
Weight: 0.48Lbs (218g)
CR288 Receiver - Audio Output Level - Mix Unbalanced: +14 dBu
- Audio Output Level - Balanced: +14 dBu
- Audio Output Impedance - Unbalanced: 1k Ohms
- Audio Output Impedance - Balanced: 470 Ohms
- Sensitivity: -100 dBm / 20 dB sinad
- Image Rejection: >50 dB
- Operating Voltage: 15 VDC 300mA
- Dimensions (LxWxH): 8.25 x 4.9 x 1.75" (210 x 125 x 44mm)
- Weight: 0.99Lbs (450g)
