Rockford Fosgate TMS65 Harley-Davidson 6.5" Full Range Upper/Lower Fairing and Tour-Pak Speakers (2014+)
Rockford Fosgate TMS65 Harley-Davidson 6.5" Full Range Upper/Lower Fairing and Tour-Pak Speakers (2014+)
The TMS65 is a full range coaxial speaker designed to fit the upper fairing, lower fairing (non-cooled), and TourPak locations on 2014+ Harley-Davidson® BOOM!™ Audio and BOOM!™ Audio Stage-I systems. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with three grille assemblies for Sharknose, Batwing and TourPak installations.

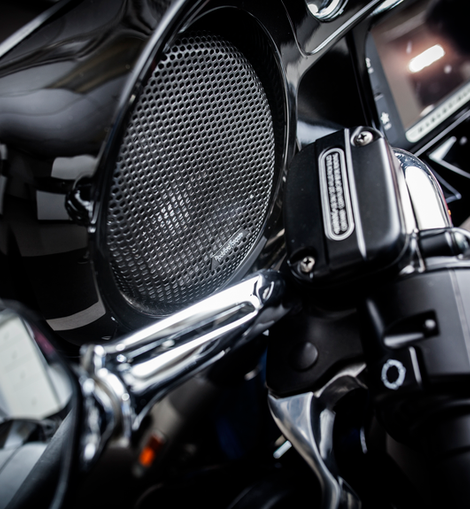

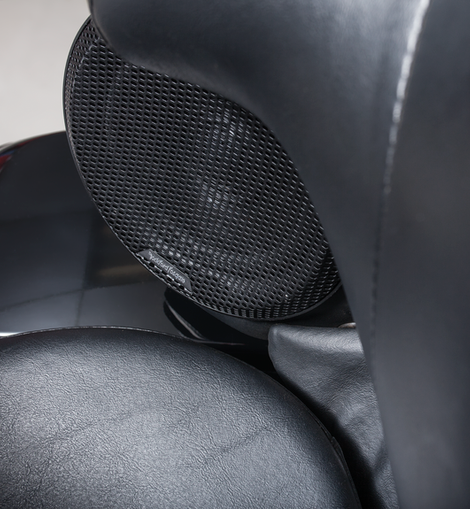

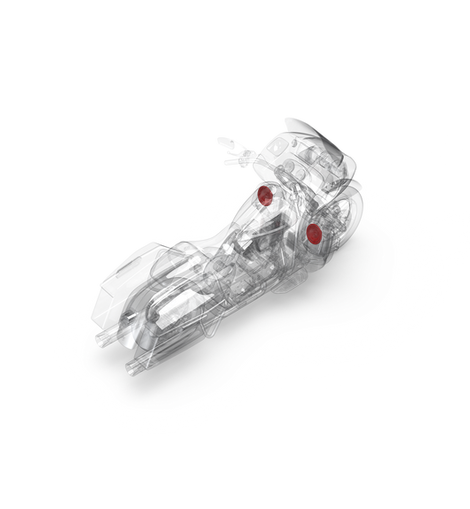

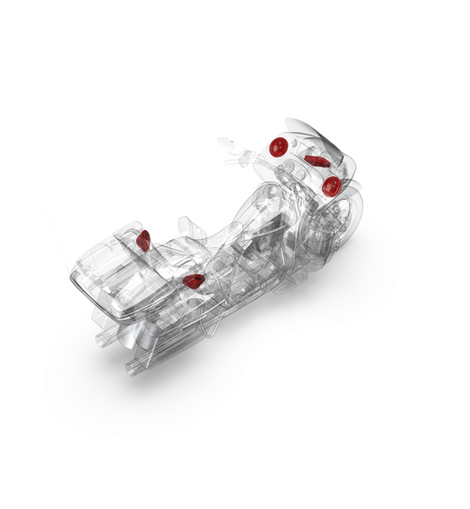

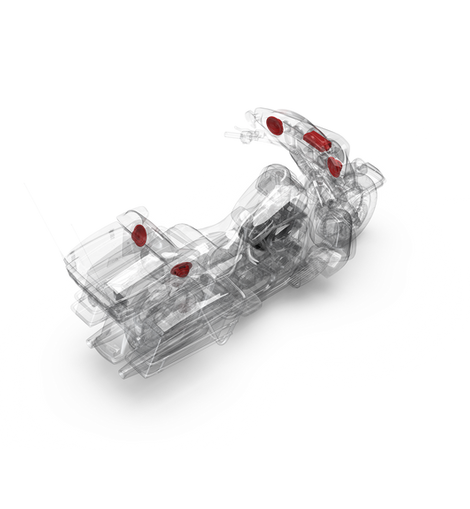

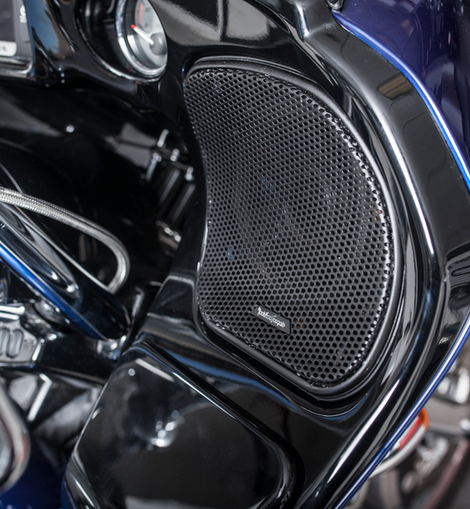

The TMS65 full range coaxial speaker is designed for direct fitment application in 2014 and newer Harley-Davidson® motorcycle in the upper fairing, lower fairing (non-cooled), and TourPak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with three grille assemblies for Sharknose, Batwing and TourPak installations.
Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
FEATURES AT A GLANCE
- 2-Year Warranty
- Grilles for upper fairing, lower fairing (non cooled) and Tour-Pak® included
- Carbon Fiber Reinforced Polypropylene Cone
- Santoprene VAST Surround
- Co‐Molded Cone and Surround
- Poly‐Cotton Spider
- Santoprene Front Isolation Spider
- High Power 35mm Voice Coil
- Ultra‐Efficient Neodymium Ring Magnet Motor
- Ultra‐High Temperature Glass Reinforced Polymer Frame
- Integrated Spade Terminals
- Integrated 6dB Crossover with High Power Polyester Capacitor
- Ultra-Efficient 25mm Proprietary Film Dome Tweeter
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Low Profile Coaxial Tweeter Design
- Discreet (Hidden) Tweeter Wire
- Designed for 2014+ Harley-Davidson® Street Glide®/Road Glide® and Tour-Pak®
- Element Ready design that is weather and water resistant
- CEA-2031 Compliant
- CEA-2031 Guidelines
- Midrange Size (Nominal Diameter) 6.5"
- Speaker Type 2-Way Coaxial
- Nominal Impedance (Ohms) 4-Ohm
- Voice Coil Diameter (in/mm) 1.40" 35.56 mm
- Power Handling (MAX) 150 Watts MAX
- Sensitivity (dB @ 1W/1M) 91 dB
- Sensitivity (dB @ 2.83V/1M) 94 dB
- Frequency Response (Hz) 56 Hz - 20 kHz
- Power Handling (RMS) 75 Watts RMS
- Crossover Built-in tweeter crossover
- Mounting Hardware Yes
- Grille/Trim Ring Included Yes

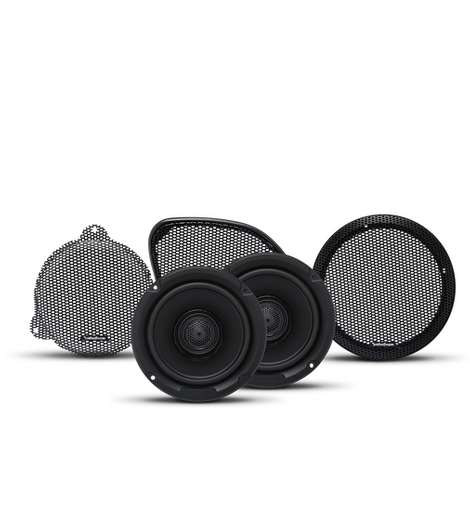

- Included In The Box
- (2) Speakers
- (2) 2015+ Road Glide Grilles
- (2) 2014+ Street Glide Grilles
- (2) 2014+ Tour-Pak Grilles
- (1) Hardware Pack
