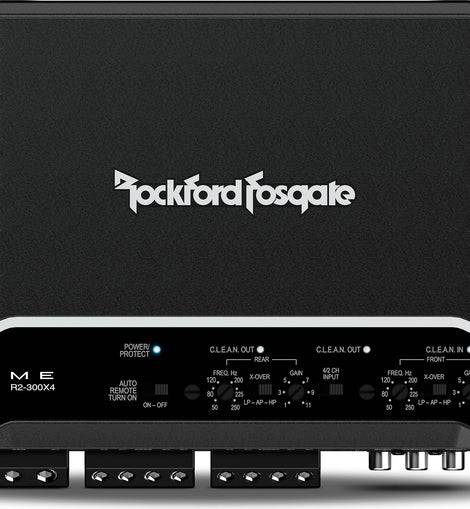

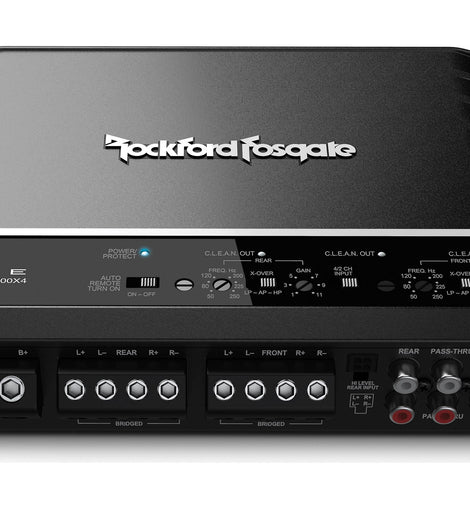

Rockford Fosgate R2-300X4 Prime Series 300 Watts 4-Channel Class D Amplifier

Primed for performance, the R2-300X4 is a 300-watt, full-range Class-D amplifier capable of operating at 4Ω or 2Ω stereo and 4Ω bridged/mono. This amplifier is extremely efficient because of its Class-D technology, which reduces the vehicle's electrical system demand. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases.

General Features:

• Rockford Fosgate Prime R2-300X4
• Class-D Full-Range 4-Channel Amplifier
• 50 watts RMS x 4 at 4 ohms
• 75 watts RMS x 4 at 2 ohms
• 150 watts RMS x 2 bridged output at 4 ohms bridged mode
• Total power output: 3000 watts

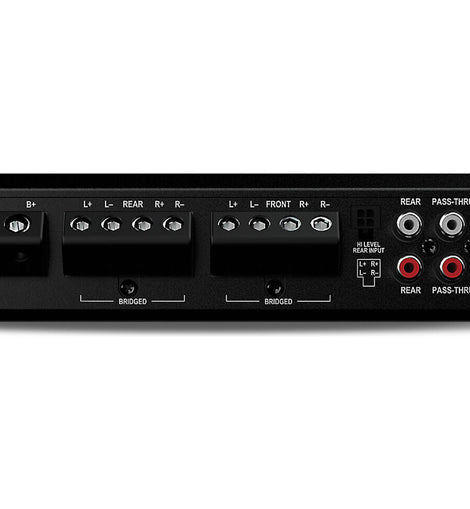

• Balanced Differential Inputs with RCA Pass Through Outputs
• High-Level Input Capable
• Defeat able Auto Turn-On Circuit
• Features C.L.E.A.N. Set-up
• 2/4 Channel Input Selection Switch
• Front and Rear Variable Input Gain adjustment level
• Continuously Variable on-Board Punch EQ
• Top Mounted Control Panel
• Short Circuit & Over Current Protection
• CEA-2006 Compliant & CE Compliant
• Full Range Class D
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• 1 Year Warranty
• Low level: 125mV-5V
• High level: 250mV-10V
• Frequency Response: 20 Hz - 20 kHz Hz
• Total Harmonic Distortion (THD): <1%
• Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
• Recommended Fuse Rating: 60A
• Dimensions: 1.9" x "6.8" x "10.1"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

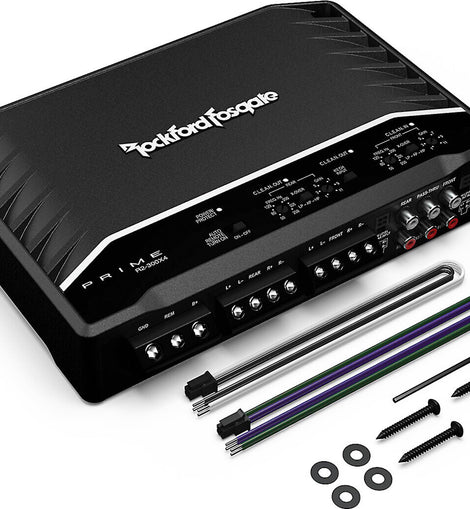

What is in the R2-300X4 package:

• R2-300X4 Owner's Manual
• 4-Channel amplifier
• Two 7" Speaker input harnesses
• 3mm Allen Hex key
• Four 3/4" Screws
• 4 Flat washers
• Installation and Operation Instructions
• Certificate of Performance
• Rockford Fosgate contact information
