Rockford Fosgate Punch P500X1BD 500W RMS Punch Series Monoblock Class D Car Power Amplifier & 2 X P2D4-12 800W Max 12" Punch P2 Dual 4-Ohm Subwoofer

The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-ohm load. The Class-BD technology produces bass more efficiently than traditional amps, and its frequency response allows it to be optimized for subwoofers.

General Features:

• Punch BD Series Monoblock Class BD Car Amplifier
• RMS Power Rating: 4 ohms: 150 watts x 1 channel
• RMS Power Rating: 2 ohms: 300 watts x 1 channel
• RMS Power Rating: 1 ohm: 500 watts x 1 channel
• CEA-2006 compliant amplifier
• MOSFET power supply
• Muted turn-on.
• Cast aluminum heatsink.
• 12dB/octave Butterworth crossover
• Stealth top-mounted control panel
• LED power, thermal, and protection indicators.
• Nickel-plated captive C-clamp terminals.
• Ultra-efficient Class BD circuitry to maximize amplifier power efficiency.
• On-board differential inputs eliminate noise picked up by the signal cable.
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• High-level input capable with Auto Turn-On circuit ( RFIF2SW required, sold separately)
• MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span.
• Built-in NOMAD is a "real-time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across the entire amplifier heatsink to efficiently keep the amplifier temperatures low.
• DSM (Discrete Surface Mounted Components) utilizes 1% tight tolerances, improving the circuit's efficiency and lowering the operating temperature and potential for noise-like circuit boards designed by aerospace manufacturers.
• Input sensitivity: 150mV - 12V
• On-board Punch EQ with +18dB boost @ 45Hz.
• Variable low-pass filter: 50-250 Hz
• Selectable infrasonic filter: off / 28 Hz
• Frequency response: 20 - 250 Hz
• Total Harmonic Distortion: <1.0%
• Dimensions: 11"L x 7-3/4"W x 2-3/8"H
• 8 AWG to 18 AWG speaker wire output terminals
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

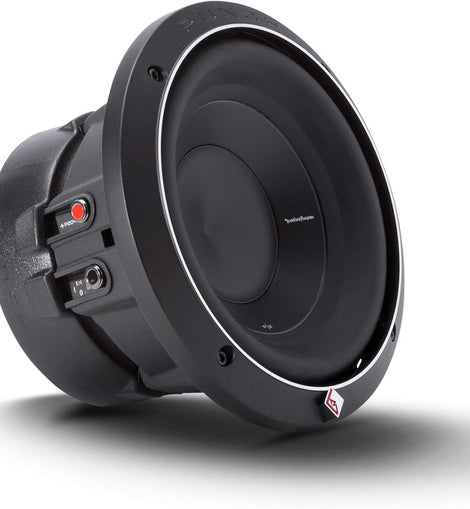

2 Rockford Fosgate P2D4-12 12" 1600W Car Audio Subwoofer

Rockford Fosgate has always been known as "The PUNCH," and the P2 12" subwoofer continues this tradition. Kevlar fiber-reinforced paper cones deliver a bass impact you can feel, and VAST technology increases surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. They include a diamond-cut cast aluminum trim ring. An optional grille insert is available.

General Features:

• 12" Dual 4 ohm Punch Stage 2 Subwoofer
• Power Handling: RMS: 400 watts
• Power Handling: Peak: 800 watts
• Recommended power range: 300 - 500 watts RMS
• Klippel Verified
• Flex-fit Mounting pattern
• Proprietary spider venting/cooling technique
• StampCast basket with integrated spider venting
• Sturdy 16-gauge compound-bend frame geometry
• High modulus Kevlar reinforced paper-pulp cone
• Semi-flexible, PVC removable protective motor cover
• Multi-point high-temp/high-strength neck joint bonding technique
• Tall-profile VAST; Santoprene surround for larger surface area
• Dual tear & fatigue-resistant poly-cotton spider with woven tinsel leads
• Fatigue-resistant and reduced-strain "stitched on" flexible lead wire design
• Proprietary all-metal, radially oriented compression input terminal assembly
• Optimized motor magnetics with extended pole and bumped vented backplate
• High temp 2.25" voice coil w/ spun-laced Nomex insulating reinforcement collar
• Die-cast aluminum soft-touch painted trim ring allows for optional integrated grill
• Mounting Depth: 6.40"
• Cutout Diameter: 11.22"
• Magnet Weight: 72.80 oz
• Frequency Response: 27.2 - 250 Hz
• Xmax: 13.3mm
• Sensitivity: 86 dB @ 1 watt / 1 meter
• Weight: 16 Lbs
• 1-year Manufacturer's Warranty
• Authorized Internet Dealer

What is in the P2D4-12 package:

• P2D4-12 owner's manual
• Two 12" Dual 4-ohm voice coil subwoofer
• Trim ring
• Eight 1-1/8" Allen head screws
• 4mm Allen head bit
• Installation/Operation manual
