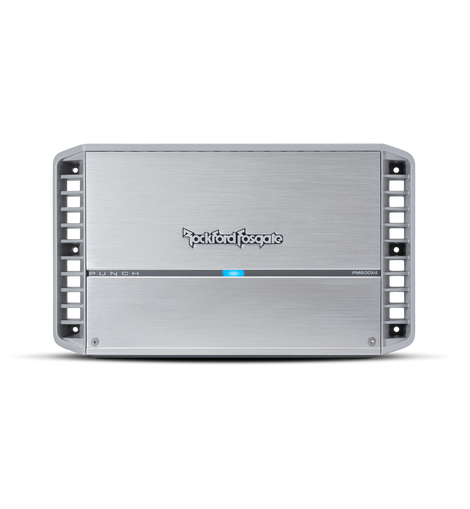

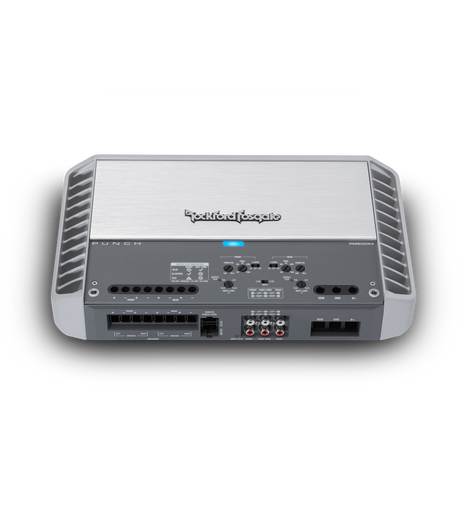

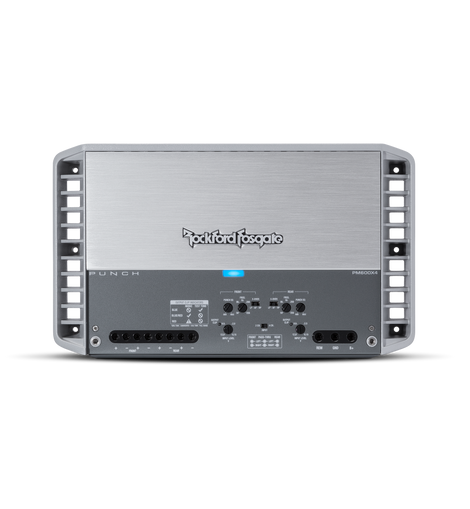

Rockford Fosgate PM600X4 Punch Marine 600 Watt 4-Channel Amplifier
Rockford Fosgate PM600X4 Punch Marine 600 Watt 4-Channel Amplifier
The Punch PM600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high-power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allow for precise tuning of Bass frequencies, and the pass-through RCA jacks provide flexibility as your system grows, keeping Y-adapters to a minimum.
General Features:
- Features C.L.E.A.N. Set-up
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- On-board Punch EQ with +18dB boost @ 45Hz
- High-level input capable of an Auto Turn-On circuit
- Cast aluminum heatsink
- Overcurrent protection
- Stealth top-mounted control panel
- Muted turn on
- Marine-grade two-part epoxy coating on circuit boards
- Marine-grade stainless steel hardware
- Short circuit protection
- 2-Year Warranty
- Number of Channels: 4
- Total Power (Sum of Rated Power): 600 Watts
- Rated Power (RMS Continuous Power)
- 75 Watts x 4 @ 4-Ohm
- 150 Watts x 4 @ 2-Ohm
- 300 Watts x 2 @ 4-Ohm Bridged
- Dynamic Power
- (PVC/PowerCube®)
- 129 Watts x 4 @ 4-Ohms 0° Res
- 211 Watts x 4 @ 2-Ohms 0° Res
- Bridgeable: Yes
- Frequency Response: 20Hz to 20kHz +/- 1.0dB
- Input Sensitivity: 150 mV - 12 V
- Circuit Topology Class: Class A/B
- Efficiency (average): 68% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0%, 2-Ohm: <1.0%
- Signal Input: Hi/Low level: 2 RCA pair
- Signal Output: Low level: 1 RCA pair
-
Tone Controls
- Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
- Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
- Function depends upon the LP/AP/HP switch position
- Crossover Controls
- Front/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
- Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
- All-Pass: Yes
