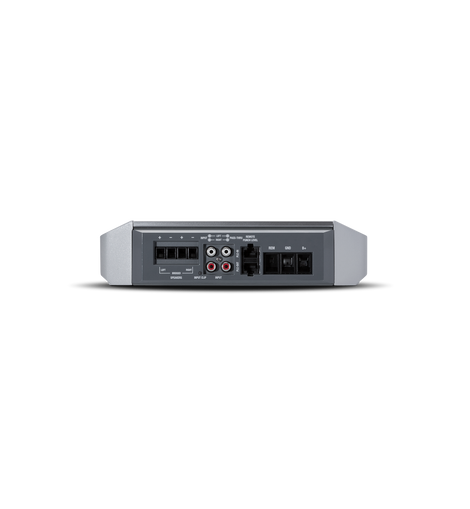

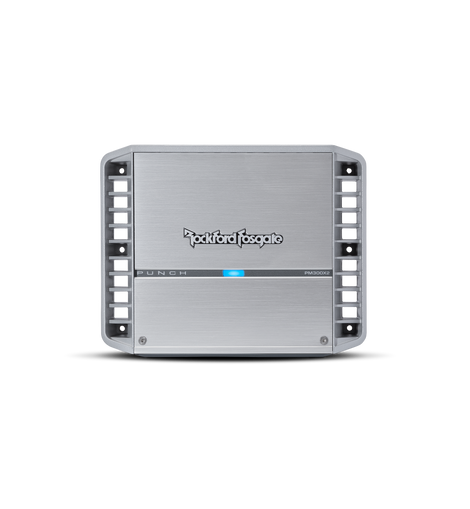

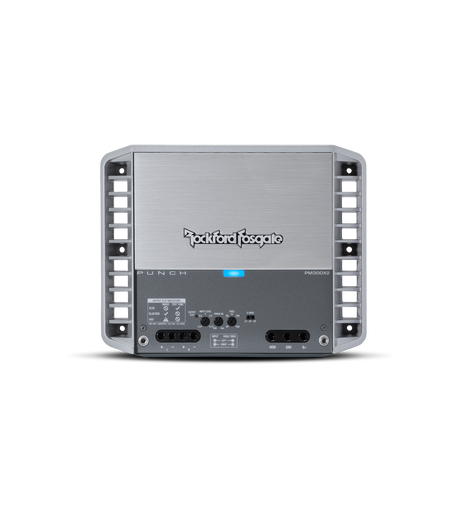

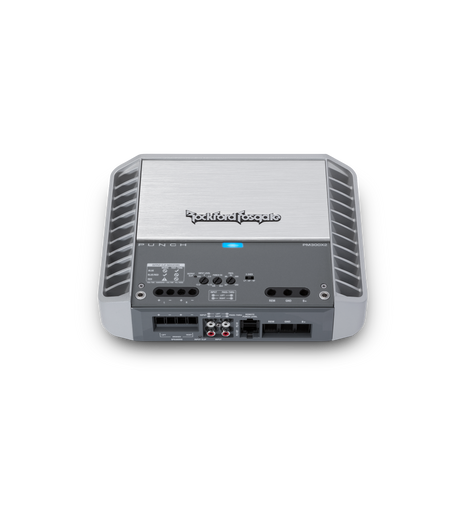

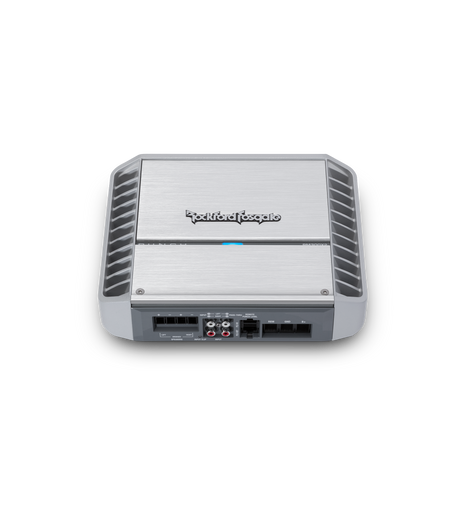

Rockford Fosgate PM300X2 Punch Marine 300 Watt 2-Channel Amplifier
Rockford Fosgate PM300X2 Punch Marine 300 Watt 2-Channel Amplifier
The PM300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the PM300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.
FEATURES AT A GLANCE
- Features C.L.E.A.N. Set-up
- RCA pass-thru outputs
- On-board Punch EQ with +18dB boost @ 45Hz
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- High level input capable with Auto Turn-On circuit
- Cast aluminum heatsink
- 2-Year Warranty
- Over current protection
- 12dB/octave Butterworth crossover
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- Muted turn on
- Short circuit protection
- Stealth top mounted control panel
Number of Channels: 2
Total Power
(Sum of Rated Power):
300 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
- 100 Watts x 2 @ 4-Ohm
- 150 Watts x 2 @ 2-Ohm
- 300 Watts x 1 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
- 120 Watts x 2 @ 4-Ohms 0° Res
- 203 Watts x 2 @ 2-Ohms 0° Res
Bridgeable: Yes
Frequency Response: 20Hz-20kHz
Input Sensitivity: 150 mV - 12 V
Circuit Topology Class: Class A/B
Efficiency
(average):
69% @ 4-Ohm
Total Harmonic Distortion
(THD+Noise)
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
Signal Input: Hi/Low Level: 1 RCA Pair
Signal Output: Low Level: 1 RCA Pair
Tone Controls
- 0dB to +14dB @ 12.5kHz
- 0dB to +18dB @ 45Hz
Crossover Controls
- High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
- Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
