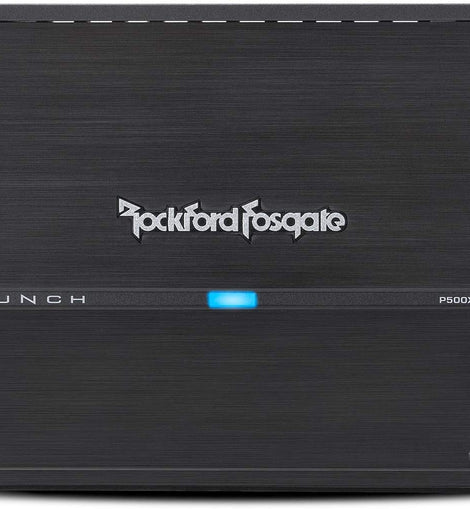

Rockford Fosgate P500X1bd Punch 1-Channel Class BD Amplifiers
Rockford Fosgate Punch P500X1BD 500W RMS Punch Series Monoblock Class D Car Power Amplifier
The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-ohm load. The Class-BD technology produces bass more efficiently than traditional amps, and its frequency response allows it to be optimized for subwoofers.
General Features:
- Punch BD Series Monoblock Class BD Car Amplifier
- RMS Power Rating: 4 ohms: 150 watts x 1 channel
- RMS Power Rating: 2 ohms: 300 watts x 1 channel
- RMS Power Rating: 1 ohm: 500 watts x 1 channel
- CEA-2006 compliant amplifier
- MOSFET power supply
- Muted turn-on.
- Cast aluminum heatsink.
- 12dB/octave Butterworth crossover

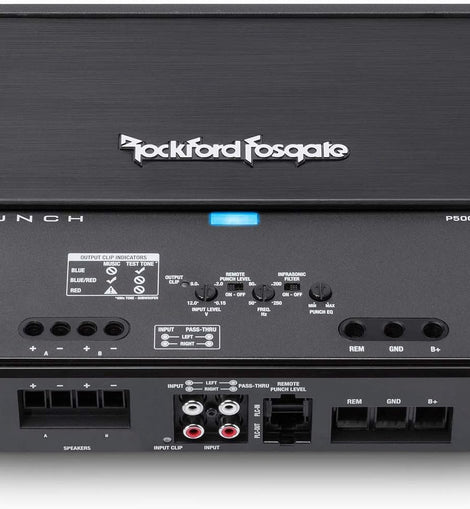

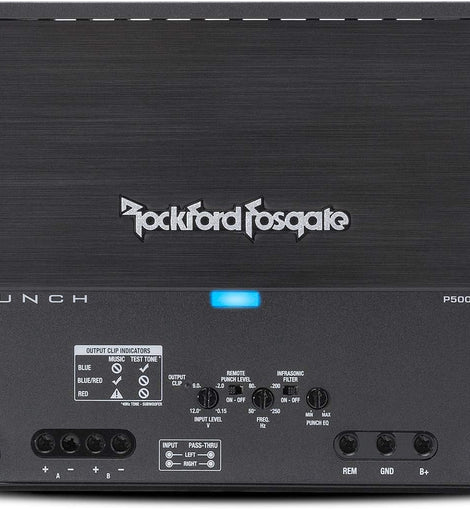

- Stealth top-mounted control panel
- LED power, thermal, and protection indicators.

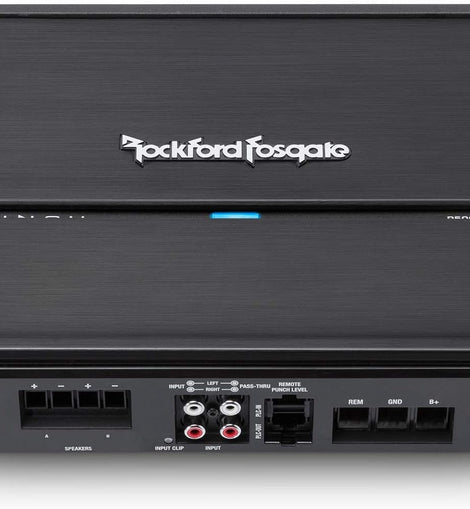

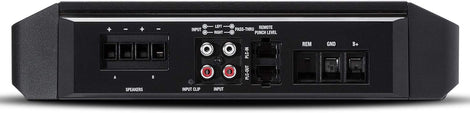

- Nickel-plated captive C-clamp terminals.
- Ultra-efficient Class BD circuitry to maximize amplifier power efficiency.
- On-board differential inputs eliminate noise picked up by the signal cable.
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- High-level input capable with Auto Turn-On circuit ( RFIF2SW required, sold separately)
- MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span.
- Built-in NOMAD is a "real-time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
- Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across the entire amplifier heatsink to efficiently keep the amplifier temperatures low.
- DSM (Discrete Surface Mounted Components) utilizes 1% tight tolerances, improving the circuit's efficiency and lowering the operating temperature and potential for noise-like circuit boards designed by aerospace manufacturers.
- Input sensitivity: 150mV - 12V
- On-board Punch EQ with +18dB boost @ 45Hz.
- Variable low-pass filter: 50-250 Hz
- Selectable infrasonic filter: off / 28 Hz
- Frequency response: 20 - 250 Hz
- Total Harmonic Distortion: <1.0%
- Dimensions: 11"L x 7-3/4"W x 2-3/8"H
- 8 AWG to 18 AWG speaker wire output terminals
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
What is in the P500X1bd box?
- Mono subwoofer amplifier
- Four 1-1/2" Self-tapping screws
- 2.5mm Allen wrench
- Quick setup instructions
- Certificate of Performance
- P500X1bd owner's manual
