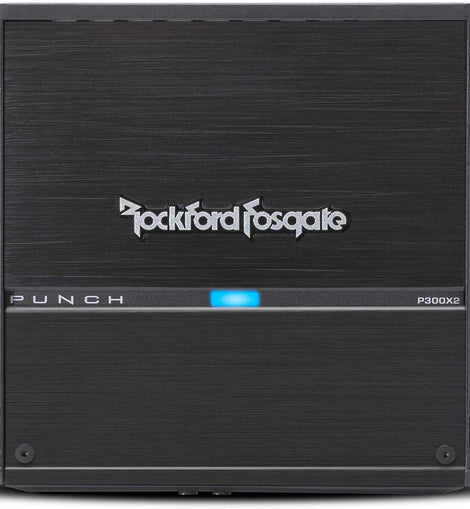

Rockford Fosgate Punch P300X2 300W RMS Punch Series 2-Channel Stereo Class AB Car Power Amplifier
The Punch P300X2 is a 2-channel stereo amplifier capable of producing 150 Watts into each channel at 2-Ohms. The P300X2 amplifier is great to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the P300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.
General Features:
- Punch Series 2-Channel Class AB Car Amplifier
-
RMS Power Rating:
- 4 ohms: 100 watts x 2 Channel
- 2 ohms: 150 watts x 2 Channel
- Bridged, 4 ohms: 300 watts x 1 chan.
- CEA-2006 compliant amplifier
- Features C.L.E.A.N. Set-up with input/output clip detection and indicator LEDs
- MOSFET power supply
- Muted turn on
- Cast aluminum heatsink
- 12dB/octave Butterworth crossover
- Stealth top-mounted control panel
- LED power, thermal, and protect indicators
- Nickel-plated captive C-clamp terminals
- Ultra-efficient Class BD circuitry to maximize amplifier power efficiency
- On-board differential inputs eliminate noise picked up by the signal cable
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- High-level input capable with Auto Turn-On circuit (RFIF2SW required, sold separately)
- MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
- Built-in NOMAD is a "real-time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
- Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across the entire amplifier heatsink to efficiently keep the amplifier temperatures low
- DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving the efficiency of the circuit and lowers the operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
- Input sensitivity: 150mV - 12V
What is in the box:
- 2-Channel amplifier
- Four 1-1/2" Screws
- 5mm Allen wrench
- Quick setup instructions
- Certificate of Performance
- Rockford Fosgate Punch P300X2 owner's manual
