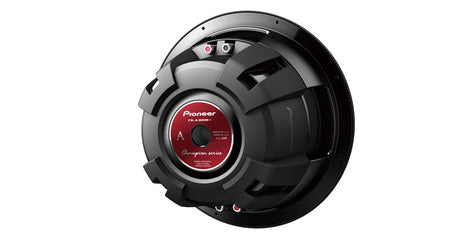

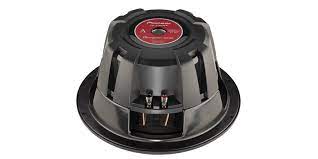

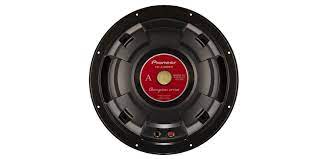

Pioneer TS-A301S4 1600W Max (500W RMS) 12" Champion Series Single 4-Ohm Voice Coil Component Subwoofer
Pioneer TS-A301S4 1600W Max (500W RMS) 12" Champion Series Single 4-Ohm Voice Coil Component Subwoofer
DescriptionDelivery
Pioneer TS-A301S4 1600W Max (500W RMS) 12" Champion Series Single 4-Ohm Voice Coil Component Subwoofer
Peak Power: 1600 watts
RMS Power: 500 watts
Injection Molded Polypropylene - IMPP Cone
Elastic Polymer Surround
Impedance: Single 4 ohms
Mount depth: 6.125"
Sensitivity: 92 dB
12" Single 4 ohms Pioneer Champion Series Subwoofer
Power Handling:
Peak: 1600 watts
RMS: 500 watts
Injection Molded Polypropylene - IMPP Cone
Elastic Polymer Surround
Steel Basket
High Temperature Aluminum Voice coil
7.7 mm Xmax
90 oz. Double Stacked Ferrite magnet motor structure
Frequency Response: 20 - 1,600 Hz
Resonance Frequency (Fs): 38 Hz
Sensitivity: 92 dB
Sealed box volume: 1.25 cubic feet
Ported box volume: 1.5 cubic feet
Top-mount depth: 6.125"
Cutout diameter: 11.125"
Authorized Internet Dealer
Protective subwoofer grille: No
1-year Manufacturer's Warranty
