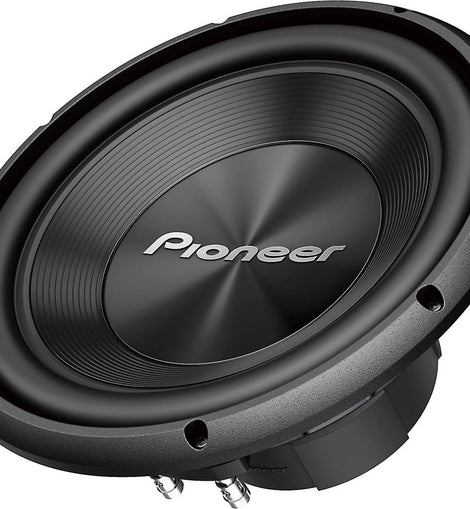

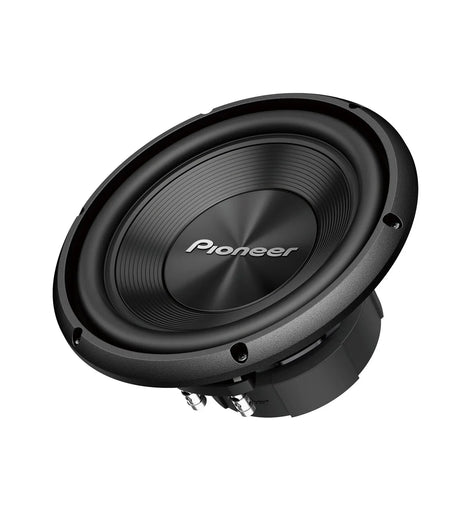

Pioneer TS-A120D4 12" Dual 4-Ohm Component Subwoofer 1500W Max Power
Upgrade your car audio system with the Pioneer TS-A120D4 12-inch component subwoofer featuring a dual 4-ohm voice coil, glass-fiber- and mica-reinforced IMPP™ cone, oversized double-stacked magnet, and powerful 1500-watt max power for deep, accurate bass.
Key Features:
🔊
1500 WATTS MAX POWER HANDLING
- Handles up to 1500 watts peak and 500 watts RMS for powerful, clean bass performance.
🎵
DUAL 4-OHM VOICE COIL DESIGN
- Dual 4-ohm voice coils provide flexible wiring options for single or multiple subwoofer installations.
💪
IMPP™ REINFORCED CONE CONSTRUCTION
- Glass fiber and mica-reinforced Injection-Molded Polypropylene (IMPP™) cone with butyl rubber surround delivers accurate, distortion-free bass with exceptional durability.
⚡
OVERSIZED DOUBLE-STACKED MAGNET
- Massive 60-oz double-stacked ferrite magnet and vented motor structure maximize power handling, efficiency, and cooling.
🚗
OPTIMIZED FOR HIGH-PERFORMANCE CAR AUDIO
- Ideal for sealed or ported enclosures, delivering deep, dynamic bass for daily drivers and competition-quality sound systems.
The Pioneer TS-A120D4 A-Series 12-inch Component Subwoofer is engineered to deliver powerful, accurate bass while maintaining excellent musical detail and reliability. Designed as part of Pioneer's A-Series lineup, this subwoofer features a glass fiber and mica-reinforced IMPP™ cone that combines lightweight construction with exceptional rigidity for improved bass accuracy and reduced distortion.

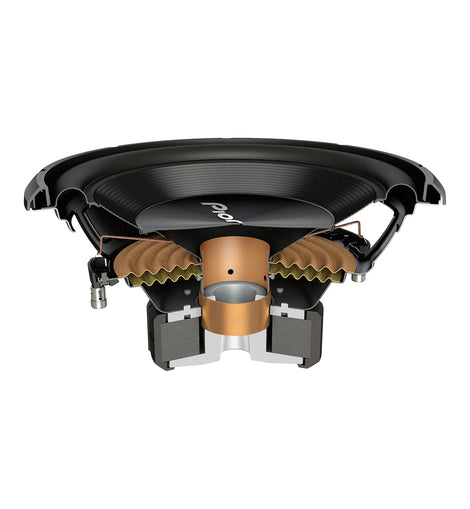

Its dual 4-ohm voice coil configuration offers flexible wiring options for a wide variety of amplifier and system designs. A butyl rubber surround, dual polycotton spiders, oversized 60 oz double-stacked ferrite magnet, and vented pole yoke provide outstanding linear excursion, improved cooling, and long-lasting durability even during high-output operation.
Whether you're upgrading your factory audio system or building a custom high-performance bass system, the TS-A120D4 delivers the legendary Pioneer sound with deep, impactful bass and dependable performance.
General Features:
• 12" A-Series Component Subwoofer
• Dual 4-Ohm Voice Coil
• 1500 Watts Peak Power
• 500 Watts RMS Power
• Glass Fiber & Mica Reinforced IMPP™ Cone
• Butyl Rubber Surround
• Dual Polycotton/Cotton Spider
• Oversized 60 oz Double-Stacked Ferrite Magnet
• Vented Pole Yoke
• High-Excursion Suspension Design
• Flexible Wiring Configurations
• Sealed or Ported Enclosure Compatible
Specifications:
Speaker Specifications
• Speaker Size: 12"
• Speaker Type: Component Subwoofer
• Voice Coil Configuration: Dual 4 Ohm
Power Handling
• Peak Power: 1500 Watts
• RMS Power: 500 Watts
Audio Performance
• Frequency Response: 20Hz - 2,300Hz
• Sensitivity: 77dB
Construction
• Cone Material: Glass Fiber & Mica Reinforced IMPP™
• Surround Material: Butyl Rubber
• Spider: Dual Polycotton/Cotton
• Magnet Material: Double-Stacked Ferrite
• Magnet Weight: 60 oz
Installation Specifications
• Mounting Depth: 5.8"
• Cutout Diameter: 11-1/8"
• Recommended Sealed Enclosure: 1.25 cu. ft.
• Recommended Ported Enclosure: 1.5 cu. ft.
Perfect For:
• Car Audio Systems
• High-Power Bass Systems
• Sealed Enclosures
• Ported Enclosures
• Daily Driver Systems
• Custom Car Audio Builds
• Trucks
• SUVs
• Bass Enthusiasts
• Professional Audio Installations
Package Includes:
• Pioneer TS-A120D4 12" Dual 4-Ohm Component Subwoofer
• Trim Ring
• Mounting Hardware
• Foam Gasket
• Owner's Manual
