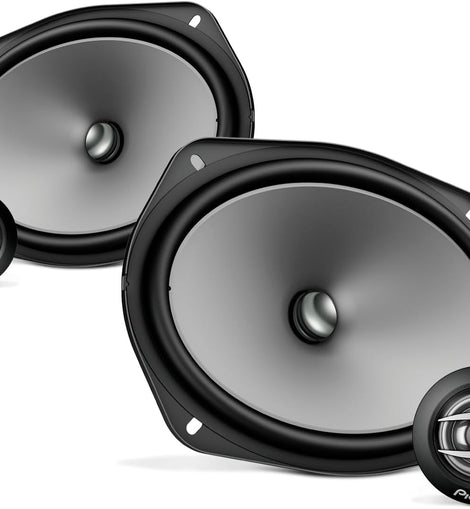

Pioneer TS-A692C A-Series 6"x9" Component Speaker System

Pair this TS-A692C 6"x9" component system with an outboard amp and power it with up to 100 watts RMS for immaculate sound.
Optimized materials and design

A woofer cone made of carbon- and mica-reinforced polypropylene means excellent rigidity, low-frequency responsiveness, and weather-resistance. Pioneer also gives you versatile woofer brackets for use across all kinds of makes and models. Use the included tweeter mounts to install the separate 3/4" tweeters in a good spot up high in your vehicle for better stereo imaging. Inline crossovers eliminate the need to find a place for crossover modules.
Product highlights:

• A component speaker system includes 2 woofers and two tweeters
• 6"x9" multilayer carbon- and mica-reinforced IMPP woofer cone with elastic polymer surround
• 3/4" polyimide hard dome tweeter with inline crossover
• woofer adapter and tweeter mounting equipment included
• grilles not included
• handles up to 100 watts RMS (450 watts peak power)
• frequency response: 33-49,000 Hz
• impedance: 4 ohms
• sensitivity: 87 dB
• woofer top-mount depth: 2-7/8"

What's in the box:

• Pioneer TS-A692C owner's manual
• If you need assistance accessing this owner's manual, please give us a call.
• Two woofers
• Two tweeters (with attached 10" speaker leads terminated with quick-connects)
• 2 Multi-application woofer mounting brackets
• 2 Lengths of speaker wire (each has quick slides to connect to the woofer 40" tweeter output leg with integrated crossover-and an 11" input leg)
• 2 Tweeter angled surface mount housings
• 2 Tweeter flush mount rings
• 2 Tweeter factory mount brackets
• Eight 1-1/8" Screws
• Eight 3/8" Screws
• Six 1/2" Screws
• 2 Speed clips
• 2 Adhesive-backed foam discs
• Warranty information
• Template and specs on the box
