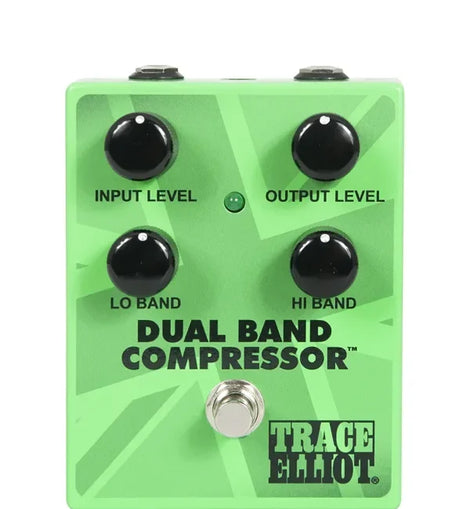

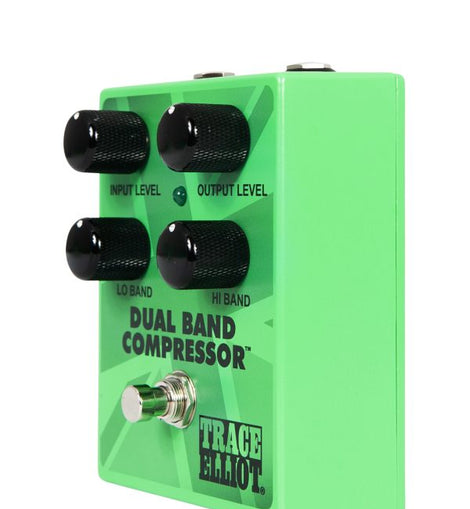

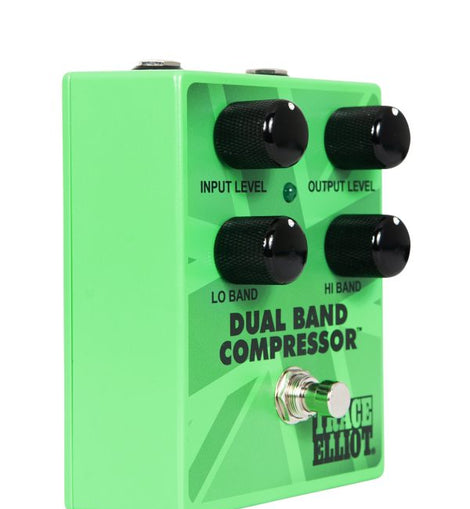

Peavey Trace Elliot® Dual Band Compressor Pedal

The Trace Elliot Dual Band Compressor enhances both ends of your sonic spectrum, allowing you to dial in the perfect balance of weight, growl, snap and clarity. Automatic make-up gain makes operation simple, while the internal 18V power supply maintains a wide dynamic range with zero chance of clipping.

The new Trace Elliot® Dual Band Compressor™ delivers classic dual band compression for any bass guitar application. The sturdy, compact pedal gives bass players control over their tone under any circumstances.

Whether in the studio or live on stage, compression is critical to a bass guitar signal. The compression enhances consistency in dynamics and allows the instrument to simply sit better in the mix. With separate LO BAND and HI BAND controls, the Dual Band Compressor allows the player to adjust the amount of compression separately for the best results. Built in make-up gain is applied after the compression to maintain the original volume level or desired loudness. The separate INPUT LEVEL allows the player to adjust the input volume of the instrument while the OUTPUT LEVEL adjusts the volume of the output leaving the pedal. Having the individual controls makes this pedal adaptable to all types of signal and line level scenarios. And with its true bypass operation, this pedal integrates seamlessly into any signal chain.

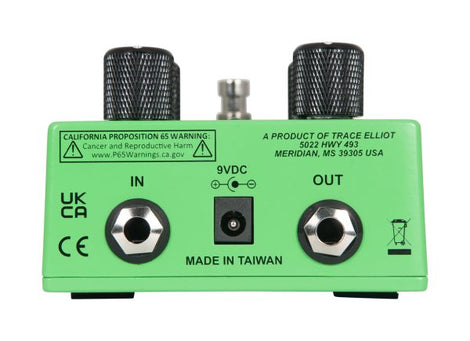

With its ¼" input and outputs and black domed knobs, the Dual Band Compressor is built to endure any hard-hitting performance with a rugged die cast enclosure and top shelf components. Bipolar 18v internal supply is achieved from any standard 9VDC power supply or battery.

General Features:

• Dual Hi-band and Lo-band Compression controls for dialing in the signature Trace Elliot bass tone
• Classic dual band compression for bass guitar applications
• True bypass operation
• Simple single control interface, per band
• Compression has integrated make-up gain for seamless balancing
• Bipolar 18V internal supply from standard 9VDC supply or battery
• Input and Output Gain controls make the DBC adaptable to all types of signal and line level scenarios
• Item Number: 3619450

Classic Dual Band Compression

Separate controls for Low and High bands allow you to achieve your ideal balance of sub-pumping weight, midrange punch, and top-end snap and definition.

Optimized Make-Up Gain

Make-up gain is automatically applied for seamless balancing with other components in your signal chain.

Wide Dynamic Range

The bipolar 18V (-9V/+9V) internal power supply preserves the full dynamic range of your bass signal from a 9V battery or DC power source.

Input and Output Gain Controls

Maintain optimal gain staging in your signal path whether you're using passive pickups, active pickups, or even line-level signals.
