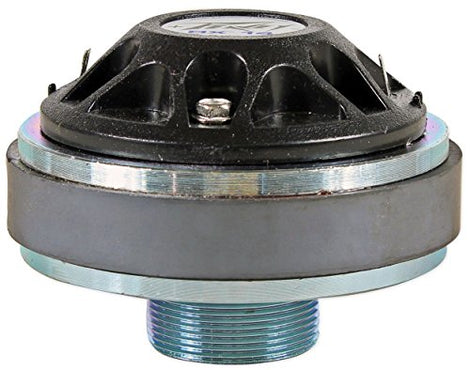

Peavey RX14 Professional 1.4" Professional High-Frequency Horn Drivers

Features:

• Peavey RX14 1.4" High Frequency Drivers. Throat Parameter: .938" / 23.8 mm. Nominal Impedance: 8 Ohms. Minimum Impedance: 7.1 Ohms. DC Resistance: 6.8 Ohms
• Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous. Sensitivity: 104 dB SPL 1 Watt at 1 meter On-axis on 90 H x 45 V horn
• Nominal Efficiency: 30%. Frequency Response: 1.5 kHz to 20 kHz. Recommended Crossover: 1,800 Hz at 12 dB / Octave. Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
• Diaphragm: Commercially pure titanium. Voice Coil Diameter: 1.4" / 34.4 mm. Voice Coil Material: Edge-wound ribbon with high-temperature Kapton bobbin. Flux Density: 11,500 gauss (1.15T)
• Dimensions: 3.54" (90 mm) diameter 2.40" (61 mm) depth. Horn Coupling Diameter: .938" (23.8 mm). Horn Coupling Threads: Standard 1 3/8" / 18". Net Weight: 33.6 oz.

Details: Save with this bundle: Peavey 03495480 RX14 - 1 High-Frequency Compression Driver (Set of 2). The RX14 1" compression driver is known for excellent performance, reliability, and power handling. The voice coil is a copper-clad aluminum wire wound on a Kapton high-temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the driver's high-frequency response. Ferrofluid cooling improves reliability and smooths the frequency response.

Package Dimensions: 4.2 x 4.2 x 3.2 inches
