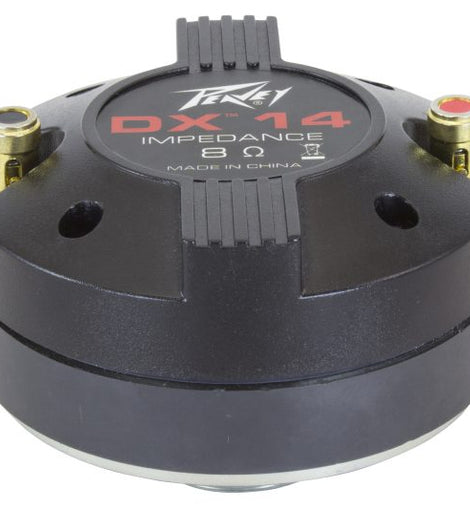

Peavey DX 14™ Compression Driver Tweeter Horn
Peavey DX 14™ Compression Driver Tweeter Horn
The Peavey DX 14 High Frequency Driver is a direct replacement driver for the Peavey DM 112 and DM 115 enclosures.
General Features:
- Voice Coil Diameter: 1.35" / 34.3 mm
- Throat Parameter: .962" / 24.4 mm
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 6.7 Ohms
- DC Resistance: 6.2 Ohms
- Power Capacity 2000 Hz to 20,000 Hz: 140 W peak, 70 W program, 35 W continuous using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
- Sensitivity: 103 dB / 1W 1m On-axis on 90(deg) H x 40(deg) V horn
- Nominal Efficiency: 28%
- Frequency Response: 1.0 Hz to 20,000 Hz
- Recommended Crossover: 2000 Hz at 12 dB / Octave
- Lowest Recommended Crossover: 1500 Hz at 12 dB / Octave
- Diaphragm: Titanium
- Voice Coil Material: Copper Clad Aluminum Wire with a High temp Kapton bobbin
- Dimensions: 3.44" (87.3 mm) diameter x 2.44" (62 mm) depth
- Horn Coupling Diameter: .962" (24.4 mm)
- Horn Coupling Threads: Standard 1 3/8" - 18"
- Net Weight: 2 lbs.
- Shipping Weight: 2 lbs. 4 oz.
- Diaphragm Kit: N/A
- Packed Weight: 2.12 lb (0.96 kg)
- Packed Length: 5.625" (14.29 cm)
- Packed Width: 3.5" (8.89 cm)
- Packed Height: 2.75" (6.99 cm)
Specifications:
-
Item Number - 3616200
-
Shipping Weight : 0.96 kg
-
Shipping Dimensions : 5.625 × 3.5 × 2.75 in
