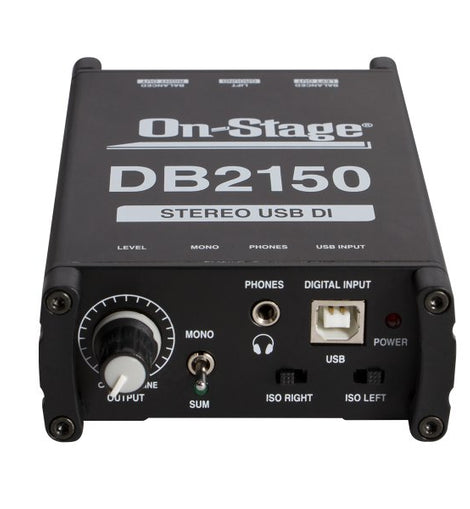

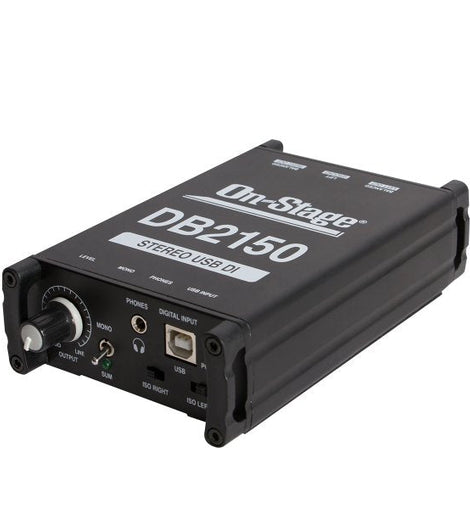

On-Stage DB2150 Passive USB DI Box

Our DB2150 Stereo USB DI Box converts digital audio to discrete stereo analog XLR signals ready to send via long cable runs to a mixer or PA system. For convenient plug-and-play use with laptops, when connected via USB, Windows and Mac computer operating systems automatically recognize this box as an available soundcard. Features include low-distortion passive circuitry, monitoring via a 3.5 mm headphone output, a ground-lift switch to eliminate ground-loop hum, transformer isolation switches for defeating channel-specific ground-loop hum, and a mono-sum switch to convert a stereo source to a mono output. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

General Features:

• Connects via USB for compatibility with a wide range of computers
• Automatically configured by Windows and macOS for easy, plug-and-play use
• Transformer isolation eliminates noise caused by ground loops

Product Properties:

• Application
• Computers, mp3 players, projectors, and DJ equipment

• Construction
• Metal w/ nylon bumpers

• Dimensions
• 5.75" x 3.5" x 1.5"

• Dynamic Range
• 90dB

• Frequency Response
• 10Hz - 20kHz

• Ground lift
• Yes

• Input
• USB 2.0 Type A

• Iso Switch
• Yes

• Mono Sum
• Yes

• Output
• XLR (stereo), 3.5mm headphone

• Output Impedance
• 200 Ohms

• Sample Rate
• 96k

• Weight
• 0.70 lb
