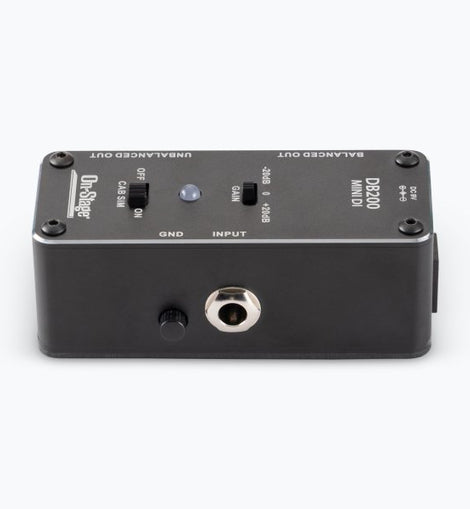

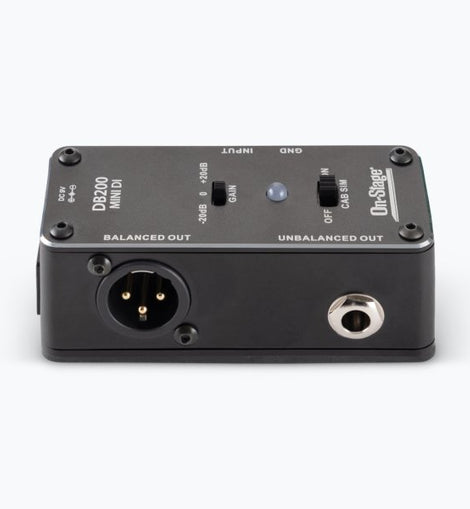

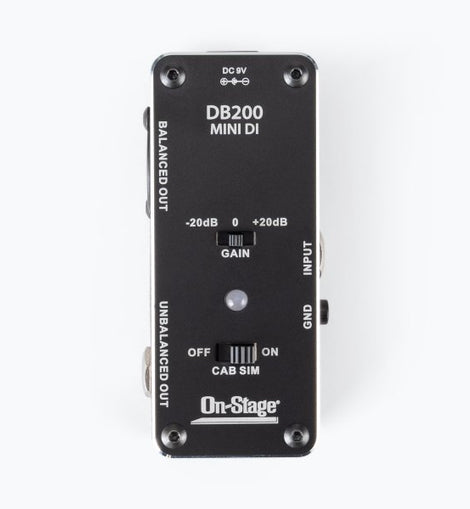

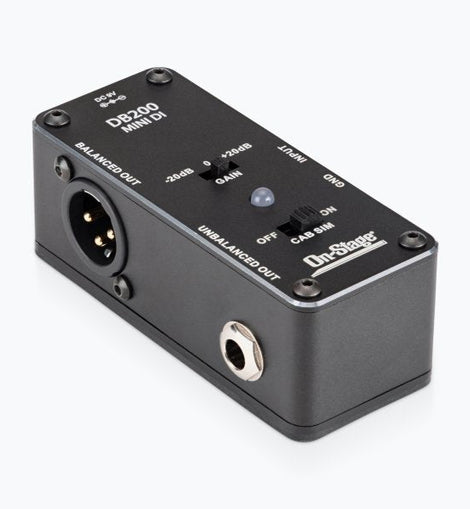

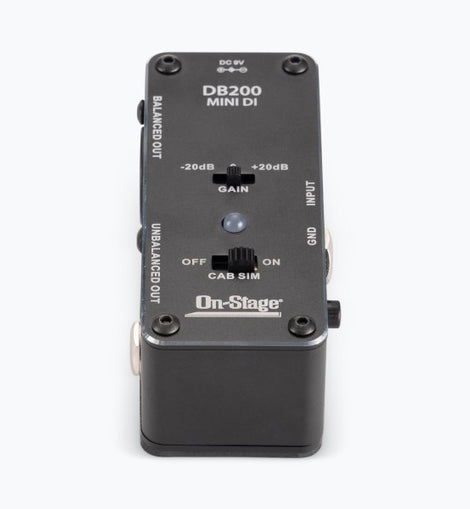

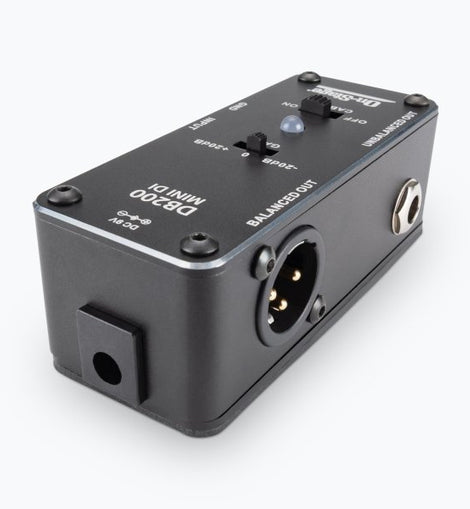

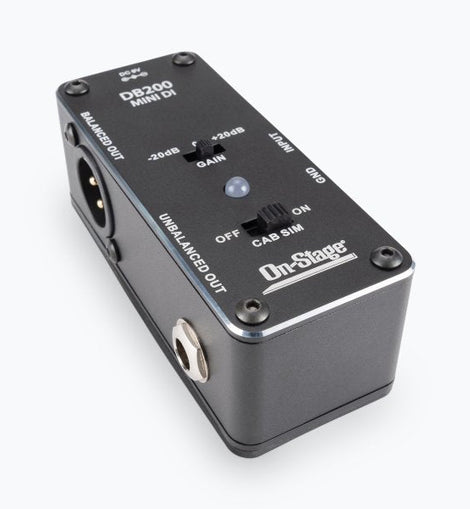

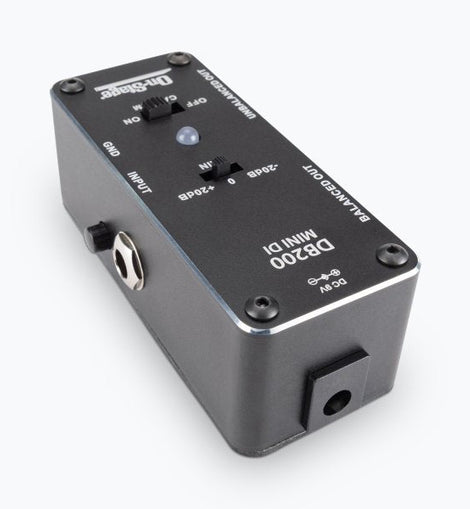

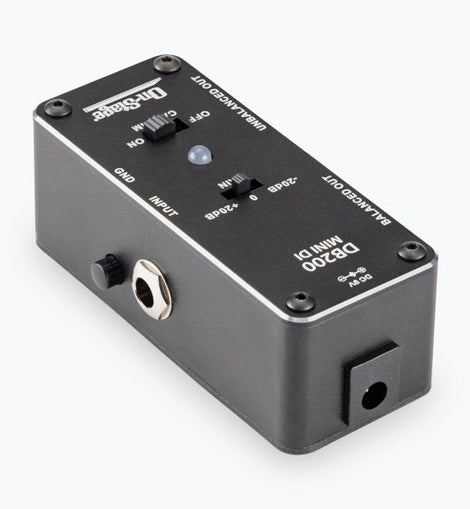

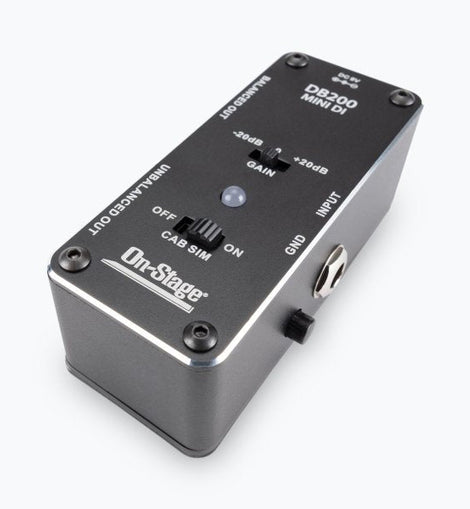

On-Stage DB200 Mini DI Box

Our DB200 Mini DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. A cab simulator switch enables sending the input signal through an emulated amp directly to a mixer without using a physical amp. There's a switch for either +20 dB of gain to boost weak signals or a -20 dB pad to prevent clipping from louder sources. A ground-lift switch defeats ground-loop hum. When not using the DI, the true-bypass switch eliminates the circuitry of the pedal from the signal path. Balanced and unbalanced outputs provide the option to send the signal to an amp, a mixer, or both. This pedal includes hook-and-loop strips for convenient pedalboard mounting. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

General Features:

• Accepts a wide range of audio sources including guitars, basses, and keyboards
• Compact footprint saves space on pedal boards (includes hook-and-loop mounting strips)
• Cab simulator sends the input signal through an emulated amp to a mixer or PA system
• Gain/pad switch boosts weak signals or prevents clipping

Product Properties:

• Color
• Black

• Current Draw
• 12mA

• Dimensions
• 3.6" x 1.5" x 1.3"

• Input Impedance
• 1M Ohms

• Output Impedance
• 1k Ohms

• Power Supply
• 9V DC, center negative (not included)
