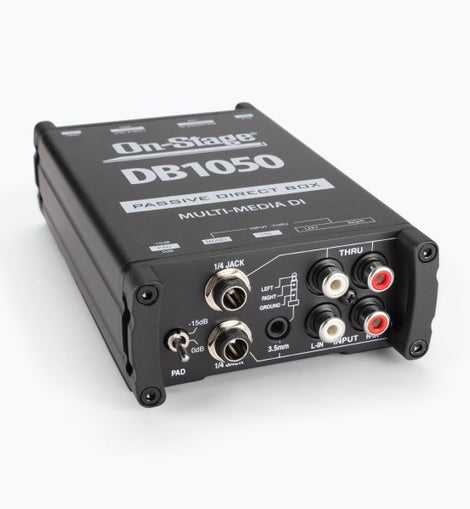

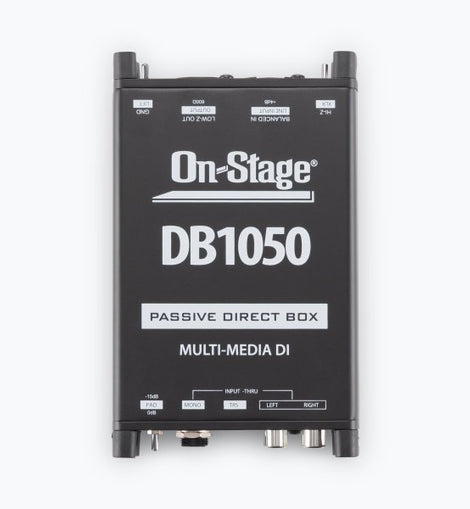

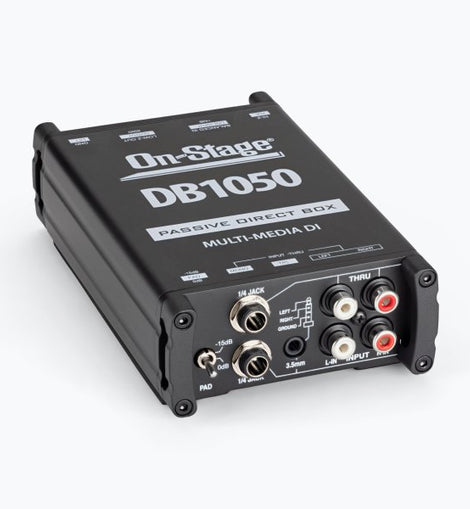

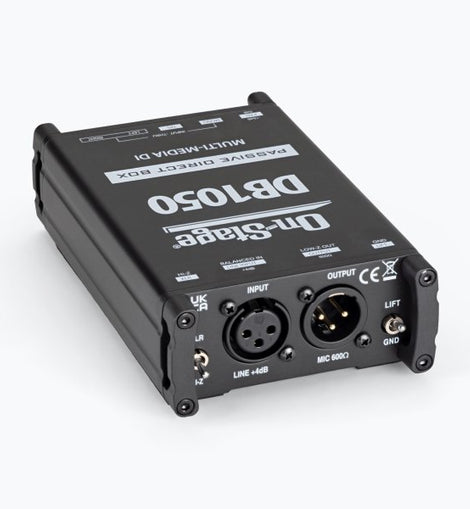

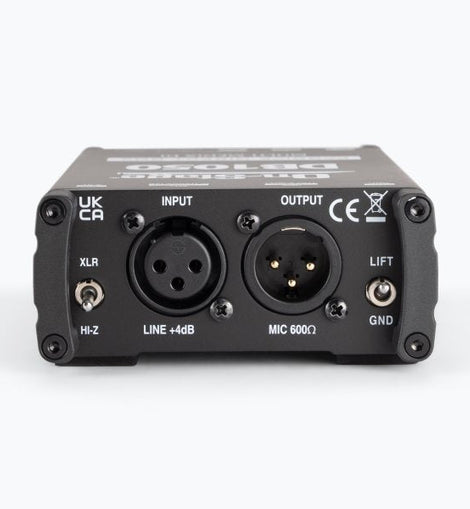

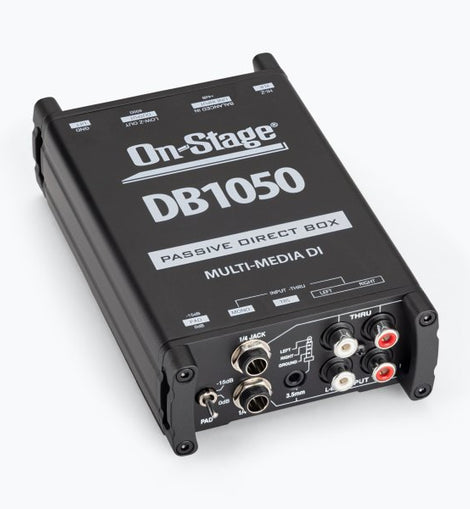

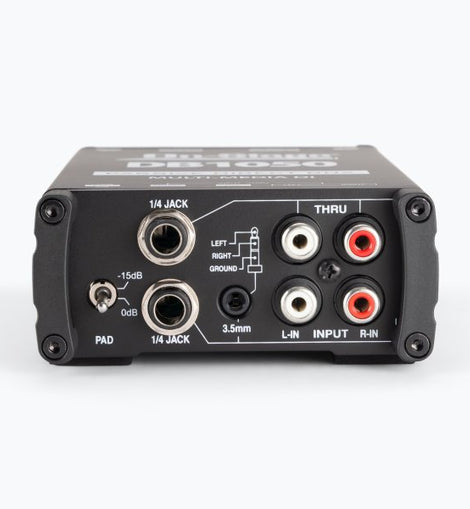

On-Stage DB1050 Passive Multimedia DI Box

Our DB1050 Passive Multimedia DI Box converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -15 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, throughput connectors to pass unaltered signal to a stage amp, a Hi-Z/XLR input selector, and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

General Features:

• Output signal can be sent via a long cable to a mixer or PA system without frequency loss
• Passive circuit does not require a power supply or batteries
• High-quality transformer for low distortion and an isolated signal path
• Converts a line-level stereo input to a balanced, low-impedance mono (XLR) output

Product Properties:

• Application
• Computers, mp3 players, keyboards, projectors, and DJ equipment

• Construction
• Metal w/ nylon bumpers

• Dimensions
• 6" x 3.5" x 1.5"

• Frequency Response
• 10Hz - 40kHz

• Ground lift
• Yes

• Input Resistance
• 220K Ohms

• Inputs
• Stereo 1/4", 3.5mm, stereo RCA, and XLR

• Output
• Mono XLR Low-Z out

• Pad
• 15dB

• Power
• Passive/not required

• Product Type
• Direct Box

• Weight
• 0.70 lb
