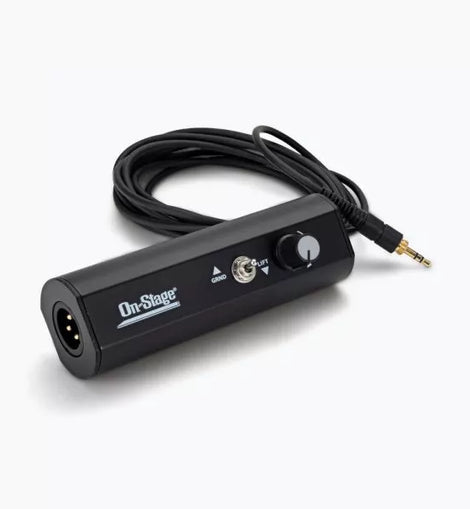

On-Stage DB100 Consumer to Pro DI

The DB100 Laptop DI Box eliminates noise and ground loops that often occur when using consumer audio devices with a PA system. Simply connect its 3.5 mm plug to the headphone jack of a laptop or digital music player, and this compact DI automatically converts the audio signal to a balanced, mic-level XLR output suitable for use with high-powered amplifiers. The volume knob enables additional adjustment of the output level while the ground-lift switch provides control over hum caused by ground loops. Passive and transformer based, this DI does not use a power supply and delivers electrical isolation for convenient, reliable sound preservation.

General Features:

• Converts an unbalanced audio input to a balanced, mic-level output signal
• Integrated 10' cable for ease of reaching audio sources

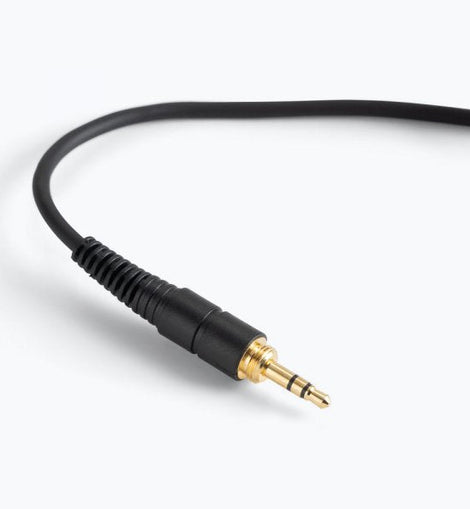

• 3.5 mm plug connects to common audio sources such as laptops, tablets, and MP3 players
• XLR output jack for compatibility with stage snakes and PA-system inputs
• Volume knob enables adjustment of the output level between the source and amp
• Transformer and ground-lift switch eliminate electrical and ground-loop noise
• Passive operation does not require a power supply
• Rugged metal enclosure ensures reliable performance

Product Properties:

• Application
• Convert consumer products to balanced output

• Cable Length
• 10'

• Color
• Black

• Dimensions
• 4.7" (L) x 1.6" (W) x 1.3" (H)

• Distortion
• 0.008%

• Frequency
• 20 Hz-20 kHz

• Input Attenuation
• 20 dB

• Input Impedance
• 100K ohms/1KHZ

• Input to Output
• Stereo to mono

• Output Impedance
• 2.5K-7.5K ohms/1KHZ

• Product Type
• DI Box

• Signal-to-Noise Ratio
• 87 dB
