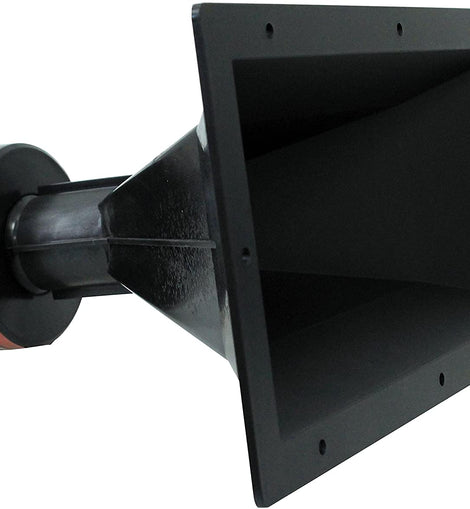

MR DJ TE-714 7"x14" 300W PRO Audio PA/DJ Wide Screw-ON Type PIEZO Horn Tweeter
MR DJ USA TE-714 7" x 14" 300W PRO PA/DJ Piezo Compression Horn Tweeter - Wide Screw-On Driver, 108dB High Efficiency
Upgrade your sound system with the MR DJ TE-714 Compression Horn Tweeter, engineered for powerful high-frequency output, exceptional clarity, and wide dispersion. Designed for PA/DJ speakers, DIY builds, and replacement applications, this high-efficiency horn delivers crisp highs with low distortion—perfect for professional and enthusiast setups.
General Features
- High-Power Performance - 300W Peak / 100W Max / 50W RMS for strong, clean high-frequency output
- Wide Dispersion Horn Design - 7" x 14" horn tweeter speaker provides broad sound coverage for PA and DJ systems
- High Sensitivity (108 dB) - Delivers loud output with minimal power input
- Extended Frequency Response - Covers 1.5kHz-20kHz for crisp highs and detailed sound reproduction
- Screw-On Compression Driver - Standard 1" throat for easy installation and compatibility
- Titanium Diaphragm + Ferrofluid Cooling - Enhances durability, clarity, and heat dissipation
- Universal Replacement Tweeter - Works with JBL, Peavey, Cerwin Vega, EV, Yamaha, Pyle-Pro & more
- Multi-Application Use - Ideal for PA speakers, DJ systems, stage monitors, home cabinets, and automotive audio
- Durable ABS Construction - Lightweight yet rugged housing for long-lasting performance
- DIY Friendly - Perfect upgrade from entry-level tweeters for custom speaker builds
Technical Specifications
- Type: Compression Horn Tweeter with Driver
- Horn Size: 7" x 14"
- Impedance: 8 Ohms
- Frequency Range: 1.5kHz - 20kHz
- Extreme HF Response: 3.5kHz - 30kHz
- Sensitivity: 108 dB
- RMS Power: 50 Watts
- Max Power: 100 Watts
- Peak Power: 300 Watts
- Voice Coil / Cooling: Ferrofluid Cooled
- Diaphragm Material: Titanium
- Magnet: 22 oz
Dimensions & Weight
- Front Dimensions: 7.25" x 14.43"
- Mounting Cutout: 6.06" x 13.31"
- Depth (Front to Magnet): 8.81"
- Item Weight: 1.95 lbs
- Overall Size: 14" x 4" x 7"
Applications
- PA / DJ Speaker Systems
- Stage Monitors
- Home Speaker Cabinets
- Car Audio Custom Builds
- Replacement for Damaged Horn Tweeters
What's in the Box
- (1) MR DJ TE-714 Compression Horn Tweeter
