MR DJ USA AMP5000DSP Class AB 2-Channel 5000W Rackmount PA/DJ Power Amplifier with DSP, Bluetooth 5.3, USB Playback & Dual Microphone Inputs

The MR DJ USA AMP5000DSP is a professional Dynamic Series 2-channel Class AB power amplifier engineered for high-performance sound reinforcement, live events, DJs, houses of worship, karaoke systems, and commercial audio installations. Featuring built-in DSP processing, Bluetooth 5.3 wireless streaming, USB media playback, dual microphone inputs, and a high-efficiency switch-mode power supply, the AMP5000DSP delivers exceptional power, crystal-clear audio, and reliable performance for demanding professional applications.

Key Features

• 5000W PROFESSIONAL POWER OUTPUT - Delivers powerful, dynamic sound for PA speakers, subwoofers, stage monitors, DJ systems, karaoke setups, live performances, and commercial sound reinforcement.

• ADVANCED DSP AUDIO PROCESSING - Built-in Digital Signal Processing (DSP) provides precise speaker tuning, crossover control, system optimization, and enhanced audio performance.

• BLUETOOTH 5.3 & USB MEDIA PLAYBACK - Stream music wirelessly from smartphones, tablets, and laptops or play audio directly from USB storage devices.

• DUAL MICROPHONE INPUTS - Ideal for karaoke, public speaking, live performances, churches, DJs, entertainers, and event production.

• PROFESSIONAL RACKMOUNT DESIGN - Features dual cooling fans, oversized aluminum heatsinks, a high-efficiency switch-mode power supply, professional twist-lock speaker outputs, and comprehensive protection circuitry for dependable operation.

Product Description

The MR DJ USA AMP5000DSP Professional Power Amplifier combines proven Class AB amplification with advanced DSP technology to deliver outstanding sound quality, reliability, and performance for professional audio applications.

Featuring onboard DSP processing, Bluetooth 5.3 wireless streaming, USB media playback, and dual microphone inputs, the AMP5000DSP provides an all-in-one solution for professional DJs, musicians, live sound engineers, karaoke systems, houses of worship, schools, clubs, and commercial audio installations.

The amplifier supports Stereo, Parallel, and Bridge operating modes, providing flexible system configurations for full-range speakers, stage monitors, and subwoofer systems. The integrated DSP processor enables precise speaker optimization, while the large LCD display provides convenient setup and real-time amplifier status monitoring.

Designed and engineered in the USA, the AMP5000DSP features a rugged rackmount chassis, high-efficiency switch-mode power supply, oversized aluminum heatsinks, dual cooling fans, and a flow-through cooling system to ensure dependable performance during extended high-output operation.

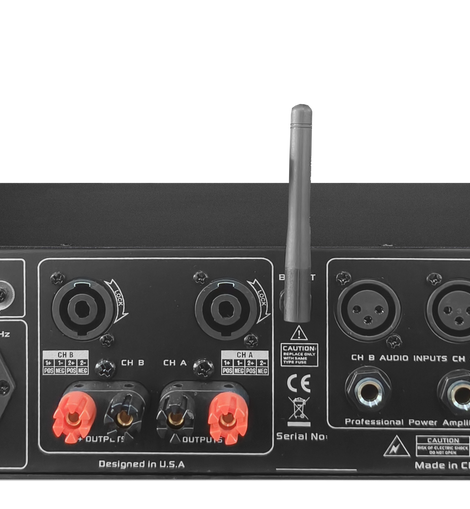

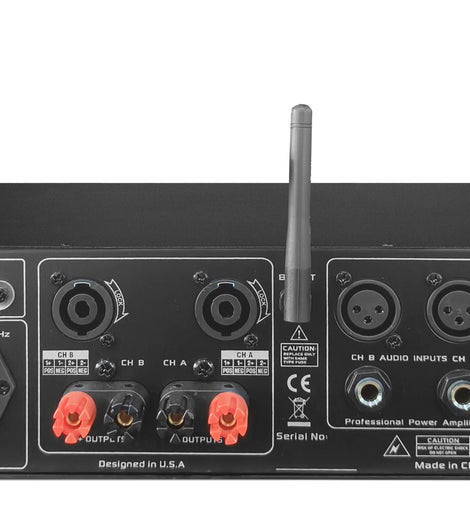

Balanced XLR and XLR / 1/4" TRS combo inputs provide seamless integration with mixers, digital processors, wireless microphone systems, and other professional audio equipment. Professional twist-lock speaker outputs provide secure connections for touring, rental, and permanent installation applications.

Comprehensive protection circuitry safeguards both the amplifier and connected speakers by providing overload, short-circuit, overheating, and excessive signal protection for years of dependable operation.

General Features

• Professional 2-Channel Dynamic Series Power Amplifier
• Class AB Amplifier Design
• Built-In DSP Audio Processing
• Large LCD Status Display
• Bluetooth 5.3 Wireless Audio Streaming
• USB Media Playback
• Dual Microphone Inputs
• High-Efficiency Switch-Mode Power Supply
• Stereo / Parallel / Bridge Operating Modes
• Professional Rackmount Chassis
• Dual Cooling Fan System
• Heavy-Duty Aluminum Alloy Heatsinks
• Balanced XLR Inputs
• XLR & 1/4" TRS Combo Input Connectors
• Professional Twist-Lock Speaker Outputs
• Input Gain Controls
• 4-Segment Signal & Limit LED Indicators
• Flow-Through Air Cooling System
• Overload & Fuse Protection
• Switchable 110V / 220V Operation
• Designed & Engineered in the USA

Specifications

Amplifier Performance

• Model: AMP5000DSP
• Brand: MR DJ USA
• Amplifier Type: Class AB
• Channels: 2
• Maximum System Power: 5,000 Watts
• Maximum Power @ 4 Ohms: 1,600W × 2
• RMS Power @ 4 Ohms: 800W × 2
• RMS Power @ 8 Ohms: 400W × 2

Audio Performance

• Frequency Response: 20 Hz - 20 kHz (±0.5 dB)
• Total Harmonic Distortion (THD): <0.5%
• THD+N: <0.05% @ 8 Ohms, 1/3 Power
• Signal-to-Noise Ratio: >102 dB
• Slew Rate: 22 V/μs
• Channel Separation: >82 dB @ 1 kHz
• Crosstalk: >65 dB @ 8 Ohms / 1 kHz
• Damping Factor: >400
• Input Sensitivity: 1V

Inputs & Connectivity

• Bluetooth Version: 5.3
• USB Playback: Yes
• Microphone Inputs: 2
• Balanced Input Impedance: 20k Ohms
• Unbalanced Input Impedance: 10k Ohms
• Input Connectors: Balanced XLR, XLR / 1/4" TRS Combo Inputs

Cooling & Protection

• Dual Cooling Fans
• Heavy-Duty Aluminum Heatsinks
• Flow-Through Air Cooling
• Overload Protection
• Fuse Protection
• Signal & Limit LED Indicators

Physical Specifications

• Product Dimensions: 19" × 15" × 4"
• Shipping Weight: 20 lbs.
• Chassis Type: Rackmount
• Finish: Black

Perfect For

• Mobile DJs
• Live Sound Reinforcement
• Professional PA Systems
• High-Power Subwoofer Systems
• Karaoke Venues
• Houses of Worship
• Nightclubs & Bars
• Schools & Auditoriums
• Event Rental Companies
• Wedding Productions
• Conference Centers
• Stage Productions
• Entertainment Venues
• Permanent Commercial Audio Installations

Package Includes

• (1) MR DJ USA AMP5000DSP Professional Power Amplifier
• (1) Power Cord
• (1) User Manual

Warranty

• 1-Year Manufacturer's Warranty
