Metra 99-7502 2000 - 2006 Mazda MPV Single Din Installation Kit & Harness
Metra 99-7502 2000 - 2006 Mazda MPV Single Din Installation Kit & 70-7903 Harness
General Features:
- Allows for installation of an aftermarket Single-Din car stereo
- Compatible with select 2000-2006 Mazda MPV
- Made from the highest quality ABS plastic for an original factory-like fit and finish
- Includes brackets and hardware parts needed with detailed installation instructions
- Painted scratch-resistant black
- Authorized Internet Dealer
-
1-Year Manufacturer's Warranty

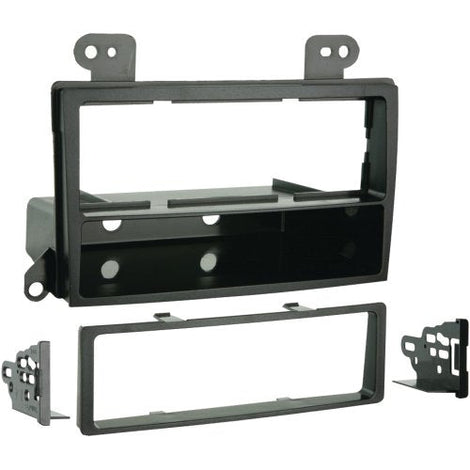

Kit Includes:
- Radio housing
- Trim plate
- ISO Snap in Brackets
- Step-by-step instructions
Metra 70-7903 Wiring Harness for 2001-up Mazda
- Plugs into car harness at radio
- Power/4 Speaker
- 24-pin connector
- For select 2001-2007 Mazda vehicles
- Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange - Dash Light Dimmer/Illumination
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
