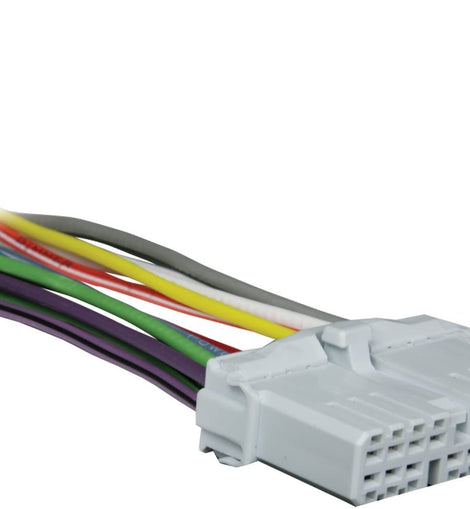

Metra 71-1720 Reverse Wiring Harness for 1986-1998 Honda/Acura Vehicles Factory Radio
Plugs into OEM Radio Power/4 Speaker 16-pin connector for select 1986-1998 Honda and Acura vehicles Harness is designed to plug into the factory radio and Can be used to repair a harness where the plugs have been cut off or damaged
General Features:
- Plugs Into Oem Radio
- 1986-1998 Honda or Acura
- Powers Speaker
- For select 1986-1998 Honda and Acura vehicles
- Power/4 Speaker
- 16-pin connector
- Harness is designed to plug into the factory radio
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
