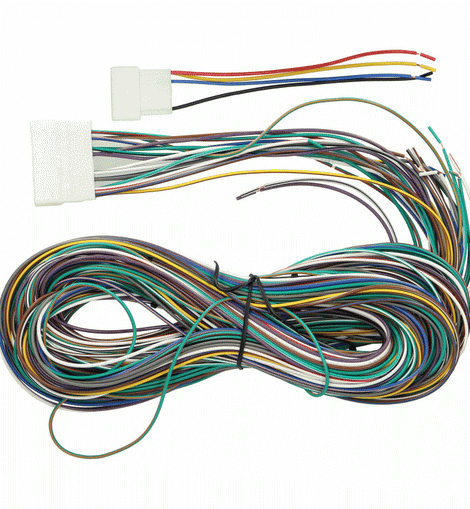

Metra 70-8117 Factory Amplifier Bypass Harness Fit Toyota 2003-2006 with JBL Sound System 204 inches long

This vehicle-specific wire harness connects your new car stereo and your vehicle's electrical system.

Compatible list:
Toyota:

• 4Runner 2003-2009
• Matrix 2005-2006
• Prius 2004-2005
• Sequoia 2005-2006
• Sienna 2004-2006
• Solara 2004-2006
• Tacoma 2005-2006
• Tundra 2004-2006

General Features:

• Features only power wires with no RCA Plugs
• Compatible with select 2003-2010 vehicles from Toyota
• 204" long factory amplifier bypass harness
• The harness is plugged into the factory amplifier and runs to the location of the aftermarket radio or amplifier
• Feature OEM-Quality Terminals For The Most Secure
• Connection Between Terminals And Connector
• Pre-Stripped Ends Allow For Easy Connections
• High Impact ABS OEM
• Quality Plastic Molded Connectors
• Provide Perfect Fit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty


Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Orange - Dash Light Dimmer/Illumination
• Green - Left Rear Speaker (+)
• Green With Black Stripe Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White With Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple With Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray With Black Stripe - Right Front Speaker (-)
