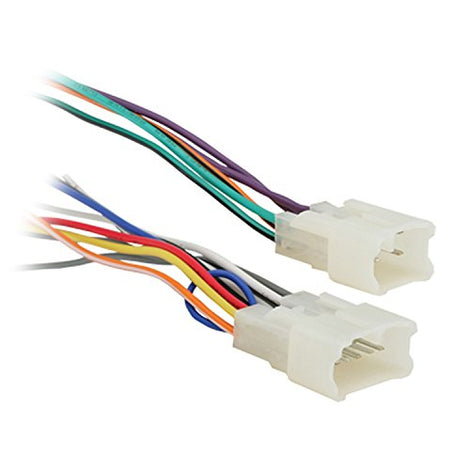

Metra 70-1761 Radio Wiring Harness For Toyota 87-Up Power & Speaker
METRA 70-1761 Wiring Harness Compatible Fit for Toyota 87-Up Power 4 Speaker
Interchange Part Number: American International TWH950, Metra 70-1761, Scosche TA02B
For Non-Amplified Vehicles, Some Vehicles will have an add-on amp that follows the wires back to the amp and unplugs the amp.
Color Codes:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Black with White Stripe - Factory Amplifier Ground
- Blue - Power Antenna / Factory Amplifier Remote Turn On
- Blue with White Stripe - Factory Amplifier Remote Turn on
- Orange - Dash Light Dimmer/Illumination
- Orange with White Stripe - Dash Light Dimmer/Illumination
- Brown - Mute / Not Used
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
General Features:
- 1989-1992 GEO PRIZM
- 1996-1997 LEXUS LX 450
- 1998-2006 LEXUS LX 470
- 2013-2016 SCION FR-S
- 2013-2016 SCION FRS
- 2012-2015 SCION IQ
- 2005-2016 SCION TC
- 2004-2006 SCION XA
- 2004-2015 SCION XB
- 2008-2014 SCION XD
- 2013-2016 SUBARU BRZ
- 2016-2018 SUBARU CROSSTREK
- 1986-1990 SUBARU DL
- 2016-2018 SUBARU FORESTER
- 2015-2018 SUBARU IMPREZA
- 2015-2017 SUBARU LEGACY
- 2015-2017 SUBARU OUTBACK
- 2016-2018 SUBARU WRX
- 2016 SUBARU XV CROSSTREK
- 1987-2016 TOYOTA 4RUNNER
- 1995-2016 TOYOTA AVALON
- 2018-2019 TOYOTA C-HR
- 1987-2017 TOYOTA CAMRY
- 1986-2006 TOYOTA CELICA
- 1987-2019 TOYOTA COROLLA
- 2017-2018 TOYOTA COROLLA IM
- 1987-1992 TOYOTA CRESSIDA
- 2000-2006 TOYOTA ECHO
- 2007-2014 TOYOTA FJ CRUISER
- 2001-2019 TOYOTA HIGHLANDER
- 1987-2002 TOYOTA LAND CRUISER
- 2005-2013 TOYOTA MATRIX
- 1985-2006 TOYOTA MR2
- 2000-2006 TOYOTA MR2 SPYDER
- 1992-1997 TOYOTA PASEO
- 1989-1995 TOYOTA PICKUP
- 1991-1997 TOYOTA PREVIA
- 2001-2020 TOYOTA PRIUS
- 1996-2018 TOYOTA RAV4
- 2001-2020 TOYOTA SEQUOIA
- 1998-2020 TOYOTA SIENNA
- 1999-2009 TOYOTA SOLARA
- 1986-1998 TOYOTA SUPRA
- 1993-1998 TOYOTA T-100 PICKUP
- 1995-2020 TOYOTA TACOMA
- 1987-1998 TOYOTA TERCEL
- 2000-2020 TOYOTA TUNDRA
- 1987-1990 TOYOTA VAN
- 2009-2015 TOYOTA VENZA
- 2007-2017 TOYOTA YARIS
