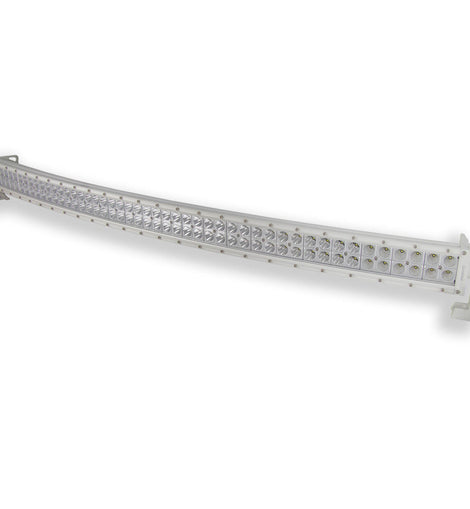

Marine HE-MDRC42 Curved Dual Row LED Lightbar - 42 Inch

Specs

• Input Voltage: 10-30V DC
• Wattage: 240 W (80-3W LED s)
• Raw Lumens: 19200
• LUX at 10M: 780
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°) / Spot(8°)

Construction

• Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
  • Hole Dimensions:
    • Brackets Turned Inward - 41"
    • Brackets Turned Outward - 43.5"
    • Mounting Bolt Drill - 25"
• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.5"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: - 40° C to +60° C
• Current Consumption: 12 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity
