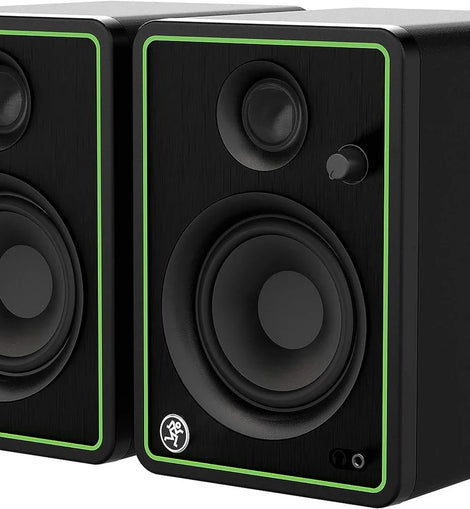

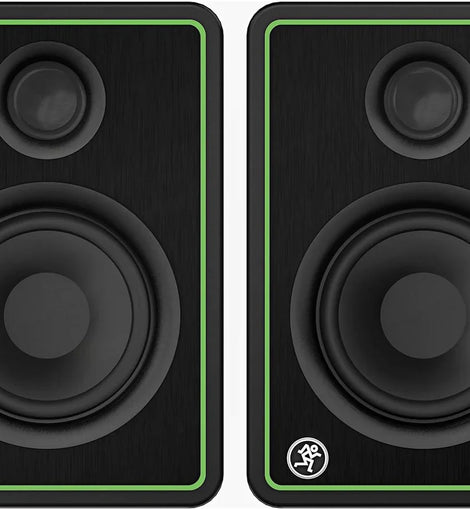

Tech Specs

• Powered: Yes
• Power Configuration: Single Amp
• LF Driver Size: 5" Woofer
• LF Driver Type: Polypropylene-coated
• HF Driver Size: 0.75" Tweeter
• HF Driver Type: Ferrofluid-cooled Silk-dome
• Total Power: 80W Class AB
• Frequency Response: 50Hz-20kHz (-10dB)
• Crossover Frequency: 3.0 kHz
• Maximum Peak SPL: 105 dB SPL
• Input Types: 1 x Dual RCA Stereo, 2 x 1/4" TRS, 1 x 1/8"
• Output Types: 1 x 1/8" (headphones), bare wire connectors +/- (connects pair)
• Enclosure Type: Rear Ported
• Enclosure Material: Solid MDF with Black Vinyl wrap
• Height: 10.2"
• Width: 6.9"
• Depth: 9.3"
• Weight: 14.9 lbs.

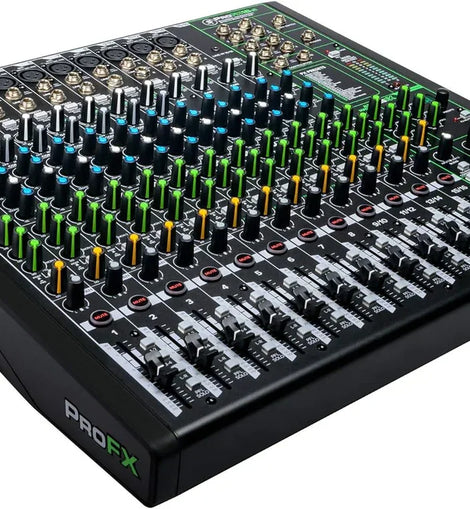

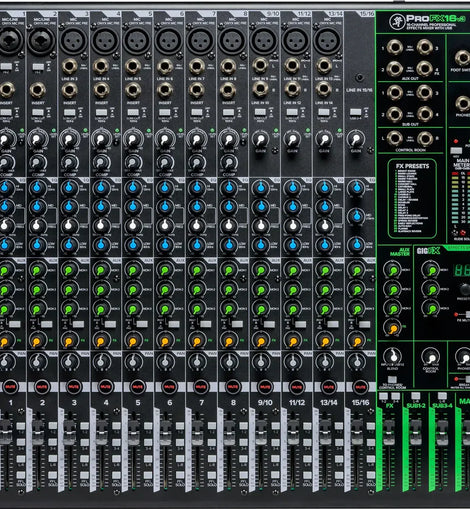

Mackie ProFX16v3 16-channel Mixer with USB and Effects

Looking for a mixer that makes your life easier when you're gigging? The Mackie ProFX16v3 16-channel USB mixer can do that and much, much more. The ProFX16v3 provides you with great sound and features found in larger mixers while remaining portable. This mixer is equipped with 11 Onyx preamps that provide top-notch sound for your keyboard, mics, and guitars. Once you're ready to go, you can use the onboard GigFX to add that little something extra to your mix. No matter if you're onstage or in your studio, the Mackie ProFX16v3 will always give you excellent audio quality.

Now with Onyx mic preamps that offer 60db of headroom, 24 built-in FX, and more. Record your tracks in 24-Bit/192kHz quality with 2x4 USB I/O and zero-latency hardware monitoring. Both Pro Tools and Waveform recording software/plug-in packages are included.

Legendary performance for stage, studio, and beyond - ProFXv3 Series Mixers.

General Features:

• GigFX effects engine delivers 24 effects, including reverbs, delays, and choruses
• 11 Mackie Onyx mic preamps deliver a clear signal and 60dB of gain
• Rugged design will stand up to the wear and tear of the road
• 3 Band EQ and 100Hz low-cut filter on all channels
• Built-in channel compression
• 48-volt phantom power on all mic channels
• 24-bit/192kHz A/D for unmatched audio quality
• USB for playing music and recording into your computer
• Balanced XLR and balanced/unbalanced outputs
• The headphone output has a separate volume control for comfortable monitoring.
• Type: Analog Mixer with USB Interface
• Channels: 16 (8 x mono, 4 x stereo)
• Computer Connectivity: USB (2 x 4)
• A/D Resolution: 24-bit/192kHz
• Faders: 16 x 60mm Faders
• Inputs - Mic Preamps: 2 x XLR-1/4" combo (mic/line/Hi-Z), 9 x XLR (mic)
• Phantom Power: Yes
• Inputs - Line: 6 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)

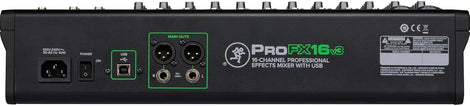

• Outputs - Main: 2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
• Outputs - Other: 4 x 1/4" (subgroup out)
• Aux Sends: 1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)
• Send/Return I/O: 1 x 1/4" (FX send), 3 x 1/4" (monitor send)
• Buses/Groups: 2 x Subgroup
• Inserts: 8 x 1/4" (channel)
• Headphones: 1 x 1/4"
• USB: 1 x Type B
• Other I/O: 1 x 1/4" (footswitch)
• EQ Bands: 3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter
• Signal Processing: 8 x Channel Compressors
• Effects: GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
• Software: Pro Tools First, Waveform OEM DAW, Additional Plug-in packages available
• Power Source: Standard IEC AC cable
• Weight: 15.2 lbs.
• Height: 4.4"
• Width: 17.7"
• Depth: 17.1"
