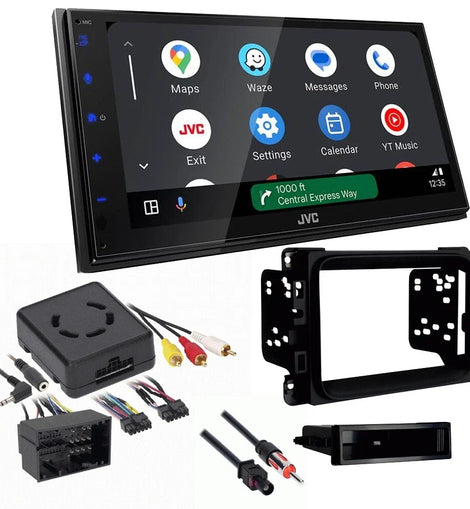

JVC KW-M690BW-AXDI-CH5 6.8" Car Stereo Compatible Fits for 2013-2023 Dodge RAM 1500 Package

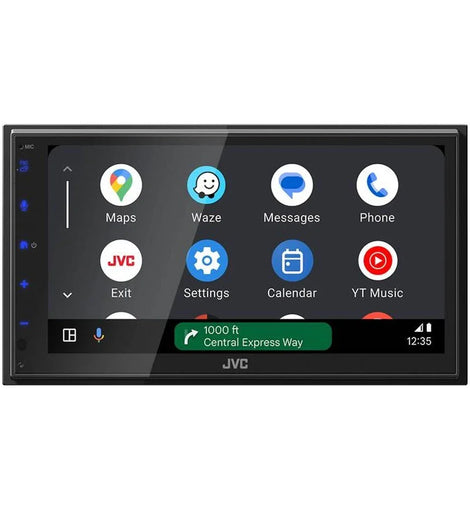

JVC KW-M690BW Digital multimedia receiver (No CD)

• digital multimedia player with AM/FM tuner

• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

• plays MPEG 1-2/MPEG 4/H.264/MKV/WMV video formats

• 6.8" capacitive touchscreen display

• customizable widget-style display

• shallow chassis design to fit wide range of vehicles

• fits double-DIN (4" tall) dash openings

• display and command of select music, navigation, and other apps with iPhone and Android

• wired or wireless Android Auto compatible

• wired or wireless Apple CarPlay compatible

• wireless USB mirroring for select Android and iPhone phones with with Mirror APP+ app

• built-in Bluetooth with dual phone connection for hands-free calling and music streaming

• built-in WiFi

• built-in iPhone and rapid Android charging via USB port

• 13-band graphic EQ

• digital time alignment

• inputs: rear USB input (2.1A), rear-camera input

• outputs: rear analog video output (RCA), 5-channel preamp outputs (2.5-volt front, rear, mono sub)

• wired connection to parking brake required to access settings and other features on
• this receiver (the brake must be connected and set for video display)

• built-in amplifier (22 watts RMS/50 peak x 4 channels)

• compatible with most factory steering wheel audio controls (adapter required)

***For Models with small factory radio only (4 inch screen) ***

***For Base models without factory Alpine amplified audio system***

**Interface will NOT retain steering wheel audio controls**

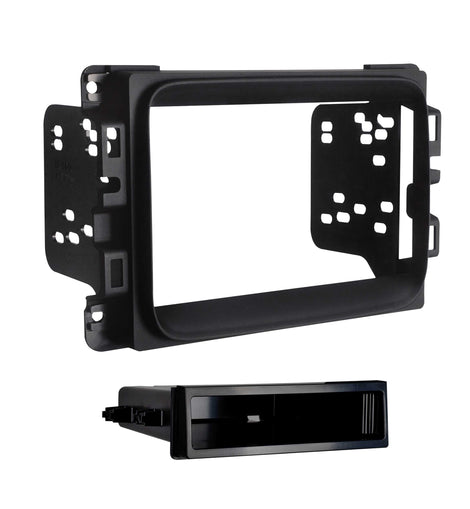

Car Stereo Install kit for RAM Pickup 1500, 2500

• For Models with small 4 inch factory radio

• For Double DIN receiver

• For 2019-UP RAM Classic

• For 2013-Up RAM 1500,2500

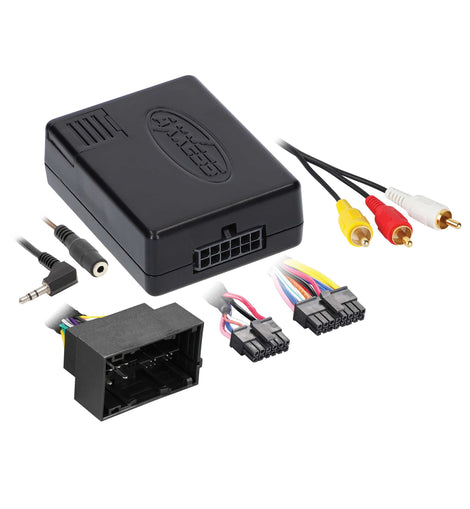

Chrysler 2013-Up* Radio Replace Interface w/Chime Retention

• Designed for non-amplified models

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Provides wires for multimedia radios (park brake, reverse, speed sense)

• Pre-wired AXSWC harness (AXSWC sold separately)

• Retains the factory backup camera (if displayed through the OE radio)

• Retains the 3.5mm AUX-IN jack

• Retains balance and fade

• Retains safety chimes

• Micro-B USB updatable

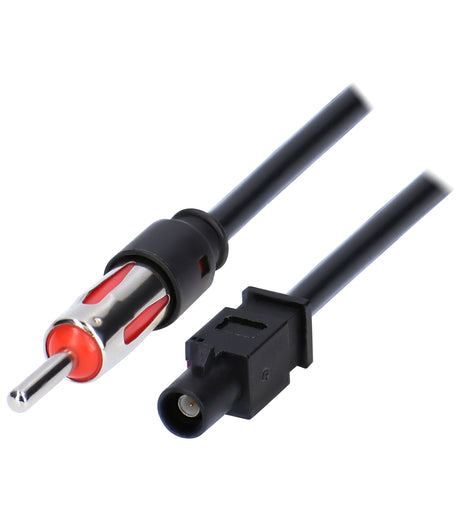

Antenna Connector Included
