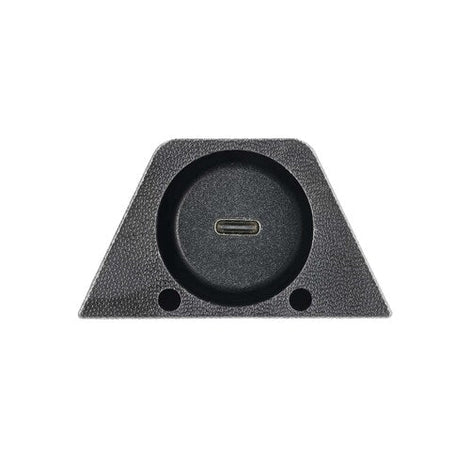

Install Bay IBR145 Flush Mount USB Type-C Charging Socket

This socket provides fast charging for smartphones, tablets, and other devices with a Type-C port. The PD3.0 power supply standard ensures a faster battery charge than traditional USB chargers and prevents devices from draining while in use. It has two installation options: either by mounting within a port in the vehicle's dash or center console or by mounting it to the dash surface with the supplied flush-mount bracket. This socket features weather-resistant components, including a protective cover and a pre-wired mini- ATC fuse holder, making it an ideal solution for marine applications.

General Features:

• Rapid charging of devices with power delivery of up to 18W
• Input: 12V/24V
• Output: 5V/3.1A, 9V/2A, 12V/1.5A
• Protects devices from overload, over-voltage, over-current, overheating, and short-circuit
• Ideal for car, van, marine, ATC , and RV applications
• Pre-wired weather-resistant mini- ATC fuse holder (3A)
• 7/8" (22mm) mounting diameter
• 1 1/8" overall diameter (1 11/32" with trim ring)
• 1 3/4" depth
• 1-year warranty

Includes:

• USB Type-C charging socket with pigtail connectors
• Weather-resistant cover
• Surface-mount bracket
• Sealing washers
