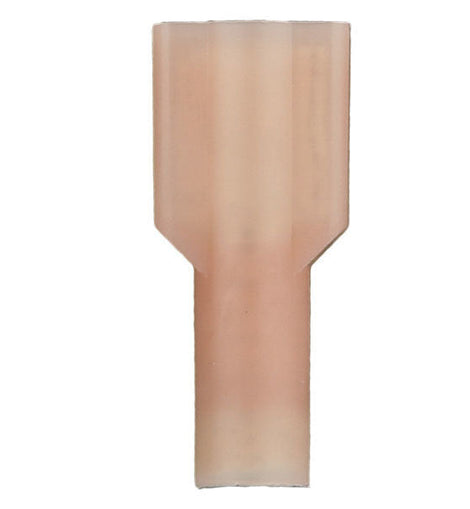

Install Bay 3MRNFD250F 3M™ Red Nylon Female Quick Disconnect 22-18 AWG .250
Install Bay 3MRNFD250F 3M™ Red Nylon Female Quick Disconnect 22-18 AWG .250
The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
General Features:
- This terminal has a wire range of 22-18 AWG
- Mates with male tab .250" Width
- Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Fully Insulated Grip
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Package of 100
Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
