iBeam TE-2MPC Accessory Camera With Multi-Mounts

Enjoy an unobstructed view while driving with a rear camera that stays active while the vehicle is on, not just when it is in reverse*. This universal camera is ideal for monitoring cargo, the trailer hitch, or reducing blind spots at the rear of the vehicle while driving. iBEAM's TE-2MPC camera includes a 27-foot extension harness and multiple mounts for installation behind the license plate, surface mounting, or flush mounting. This camera has a resolution of 640 TV lines ( CVBS ) or 1280 TV Lines ( AHD ), with a 1/3" CMOS sensor and a CVBS 140-degree viewing angle or AHD 145-degree viewing angle. It features an improved power circuit, is rated IP67 for water resistance, and has a durable metal housing.

General Features:

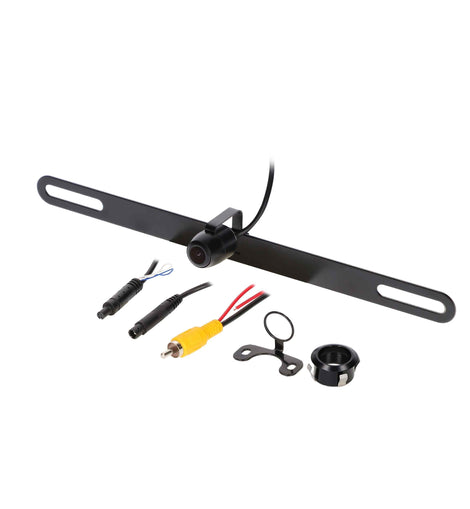

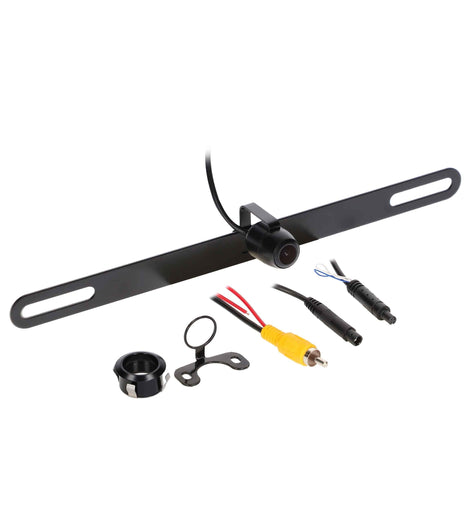

• Multiple mounts included - behind plate mount, surface mount, and flush mount
• Improved power circuit
• Selectable parking line
• Mirror image option
• Can be viewed while driving, with a compatible monitor
• Water-resistant to protect from the elements
• Mounting: Front or rear
• 3-year warranty

Specs:

• Image sensor: 1/3 inch CMOS
• TV system: CVBS 640TV lines; AHD 1280TV lines
• Effect pixels: 1280(H) x 720(V)
• Pixel size: 3.75 μmx 3.75 μm
• Min illumination: 0.1 lux
• Video out: 1MP, 720P@60fps
• Sensitivity: 12448mV/lux·s
• Power supply: 9-16VDC
• Lens spec: 6G+1IRF
• Diagonal viewing angle: AHD 145°; CVBS 140°
• Current consumption: ≤ 120mAh
• Operating temperature: -20 to +70°C
• Storage temperature: -30 to +85°C
• IP rating: IP67

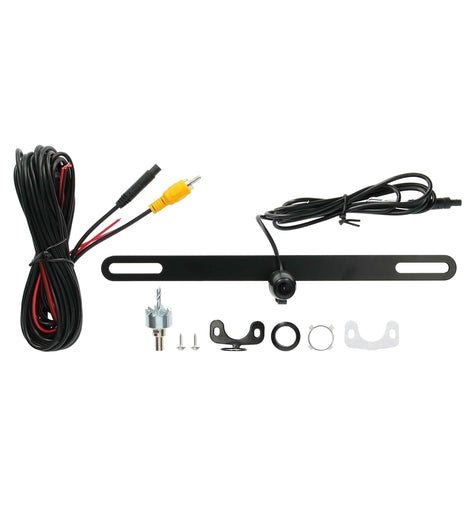

Wire Lengths:

• Extension cable: 8.2M / 27'
• Camera cable: 1.5M / 5'

Vehicle Applications:

• Universal

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
