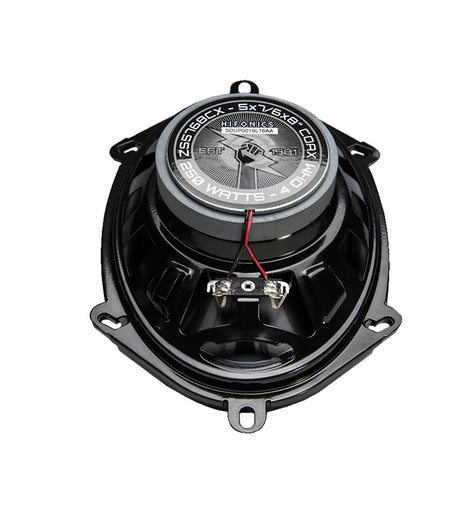

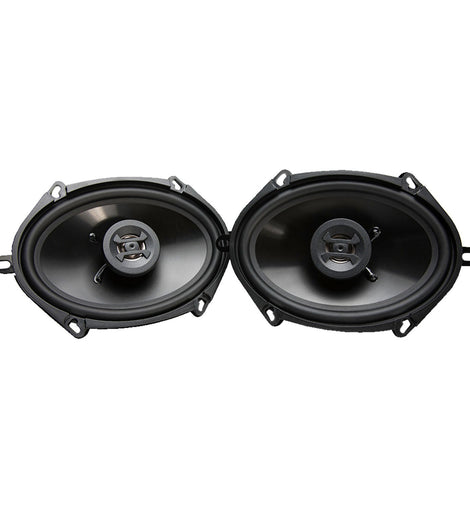

Hifonics ZS5768CX ZEUS 5×7/6×8 Inch Speakers

Hifonics ZS5768CX ZEUS 5 x 7 / 6 x 8 inch 2-way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair). Includes 6×8 inch adapter plate. (No Grills)

General Features:

• Tweeters
  1 inch: Clear highs while handling plenty of power without sound harsh. Neo-Mylar Soft Dome Tweeter: Impact Resistant Tweeter Elements, Great sound quality and increased reliability. Kapton: Lightweight and efficiently dissipates heat.
• Cone Material
  Alpha-Cellulose Cones: Light weight for speed and very rigid for deep bass.
• Surround / Cone Coupling
  Rubber: Moisture Resistant Rubber Surround with high Mid-Bass Impact. High Temperature Adhesive: Special adhesive is chosen to create a permanent bond between the cone and the surround.
• Voice Coil / Former Assembly
  Pure Copper: Creates strong magnetic field with a very thin extrusion. Kapton: Lightweight and efficiently dissipates heat.
• Spider
  Epoxy infused Natural Fiber: Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
• Cooling System
  Overcoil: Air is exchanged over the voice coil through the spider.
• Crossover
  Passive Butterworth: Smooth transition of frequencies from midrange/midbass to the tweeter element.
• Frame
  Anti-Resonant Stamped Steel Basket: Very strong with minimal harmonics or distortions from flex or ringing.
• Motor
  Ferrite Magnet: Creates a strong magnetic field while remaining small enough to fit nearly every application.
• Connectors
  Spade: Use spade connectors or solder direct for the best connection.
• Grills
  No: Typically used in factory dash replacement locations where grills are not required.

Specifications:

• Type
  Speaker
• Brand
  Hifonics
• Series
  ZEUS
• Category
  Mobile
• Condition
  New
• Color
  Black
• Warranty
  1 Year
• CEA Standards
  CEA426B
• Compatible Vehicles
  Universal
• Speaker RMS Power Handling (watts)
  90
• Speaker Peak Power Handling (watts)
  250
• Speaker Impedance (ohms)
  4
• Speaker Frequency Response
  46Hz-20kHz
• Speaker Sensitivity
  88dB
• Speaker Crossover Slope
  4kHz 12dB
• Speaker Mounting Diameter / Cut Out (in)
  5.67
• Speaker Outside Diameter (in)
  8.60 x 5.56 (No Grill)
• Speaker Mounting Depth / Chassis Depth (in)
  2.13
• Speaker Size (in)
  5 x 7 / 6 x 8

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
