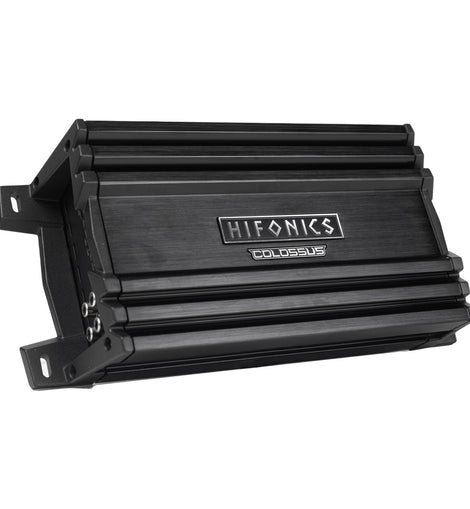

Hifonics HCM-800.4D Colossus Mini Ultra-compact 800 Watt Four Channel Amplifier

Hifonics HCM-800.4D COLOSSUS MINI ultra-compact four-channel amplifier delivers 800 watts in a small footprint design that suits a wide range of applications like motorcycles, UTVs, and automotive vehicles.

General Features:

• Compact Design
  Small-footprint design suits a wide range of applications, including motorcycles, UTVs, and automotive vehicles.
• Mass-Loaded Heat Sink
  The mass-loaded extruded aluminum heat sink results in better thermal management and output performance - no fan cooling required.
• High-End Preamplifier Circuit
  Accepts a wider range of input signals.
• RCA Inputs
  Nickel-plated RCA jacks provide a corrosion-resistant, efficient connection.
• High Tolerance Output Device
  Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method.
• Operation Mode
  4 channel operation mode allows either stereo or mono bridged operation.
• Clean Board Construction
  Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design.
• Class / Topology
  Full Range Class-D - All Colossus Mini amplifiers feature a full range Class-D chipset, including the mono models, making them compatible with a wide range of drivers, especially pro-style speakers.
• Power Supply
  Air core transformer is more effective for higher frequencies and energy loss due to its open-core design.
• Delayed Turn-On Function
  Ensures compatibility with a wide range of source units to eliminate unwanted turn-on/off noises, such as hisses and pops.
• Connection Type
  Secure molded connection terminal for all Power, Ground, and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
• Stylized Badging

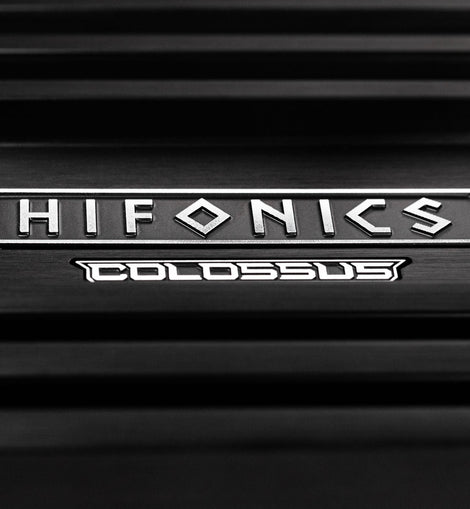

  Fly-Cut CNC Badging- The Hifonics and Colossus logo badges are CNC machined aluminum (giving a sleek and stylish finish).
• Triple Protection Circuits
  Over/under-voltage, short-circuit, and thermal-protection circuits give you peace of mind that your investment (audio system and vehicle) will be protected under nearly every circumstance.
• Bass Remote Included
  The included bass remote allows you to adjust the bass level relative to the setting on the amplifier end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect.

Specifications:

• Type
  Amplifier
• Brand
  Hifonics
• Series
  COLOSSUS MINI
• Category
  Mobile
• Condition
  New
• Color
  Black
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Amp Class
  Super D-Class®
• Amp Total Channels
  4
• Amp Max Power (watts)
  800
• Amp Power @ 2 Ohms (ch x watts)
  4 x 200
• Amp Power @ 4 Ohms (ch x watts)
  4 x 100
• Amp Mono Bridged @ 4 Ohms (ch x watts)
  2 x 400
• Amp Crossover
  Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave
  15Hz-1KHz
• Amp Variable Low Pass Crossover 12dB per Octave
  30Hz-250Hz
• Amp Tone Control / Parametric EQ
  Built-in Bass Control
• Amp Variable Voltage
  0.2-5V
• Amp Signal to Noise
  > 85dB
• Amp Frequency Response
  10Hz-25kHz
• Amp Total Harmonic Distortion (THD)
  < 0.5%
• Amp Speaker Level Audio Inputs
  Yes
• Amp Power Terminal 12v/GND
  4 AWG
• Amp Speaker Terminal Wire Gauge
  12 AWG
• Amp Fusing
  External 80A
