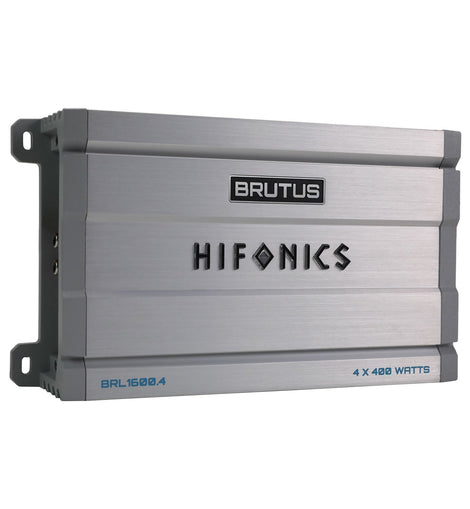

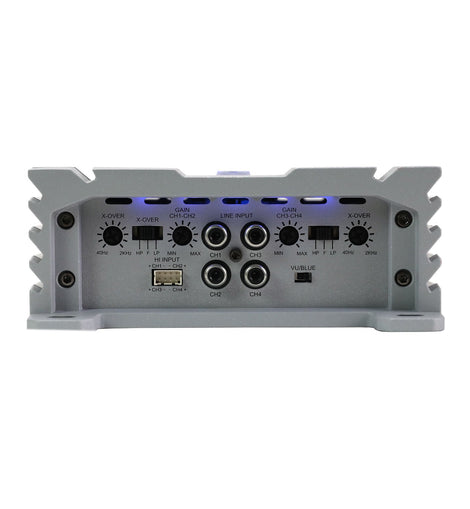

Hifonics BRUTUS BRL1600.4 four channel amplifier delivering 1600 watts RMS with a built-in VU meter and Intelligent Power Management System.

General Features:

• Ultra-High Efficient Design
  A thoughtful power supply design coupled with carefully selected parts results in ultra-high efficient amplifier.
• Half Bridge Design
  A more efficient design with fewer components results in higher power output.
• Ultra-Low EMI Design
  Minimal interface with other vehicle electronic systems.
• Mass-Loaded Heat Sink
  The mass-loaded extruded aluminum heat sink results in better thermal management and output performance.
• High-End Preamplifier Circuit
  Accepts a wider range of input signals.
• RCA Inputs
  Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant.
• High Tolerance Output Device
  Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method.
• Operation Mode
  4 channel operation mode allows either stereo or mono bridged operation.
• Clean Board Construction
  Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design.
• Class / Topology
  BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range.
• Power Supply
  Iron core transformer assists in the ultra-low EMI design while providing high power at an unmatched value.
• Delayed Turn-On Function
  Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops.

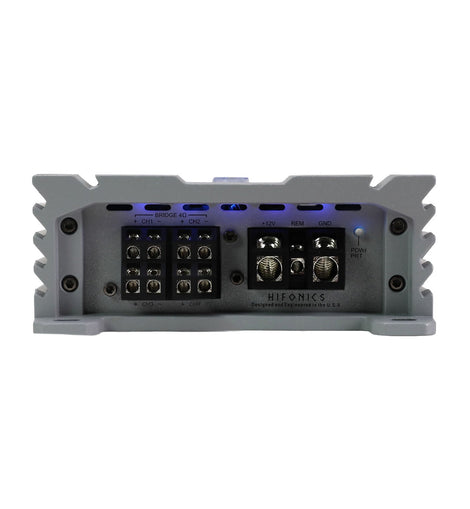

• Connection Type
  Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.

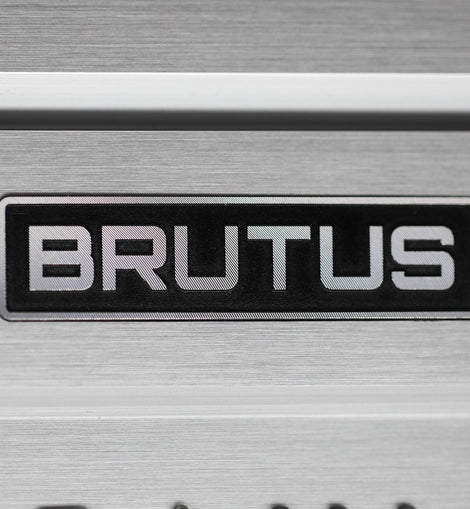

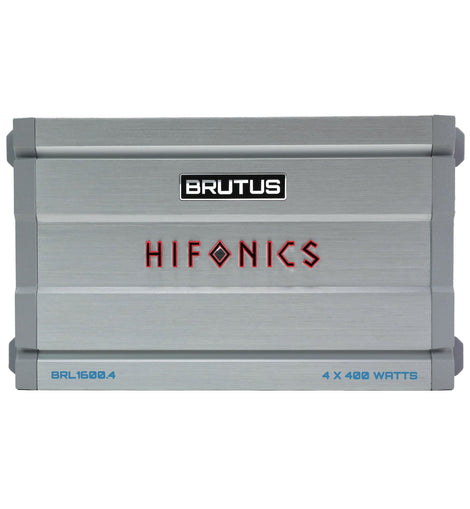

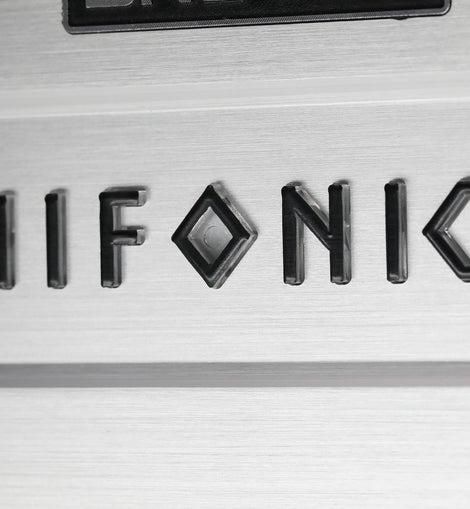

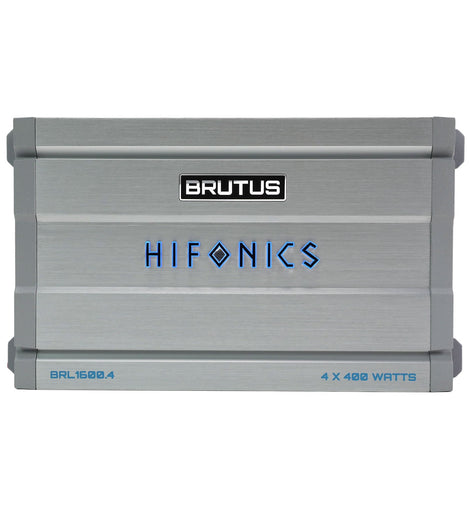

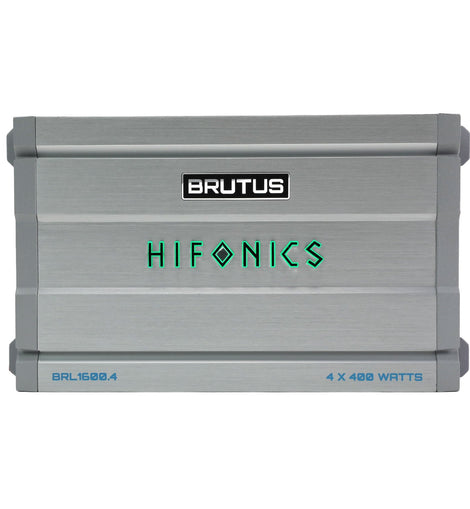

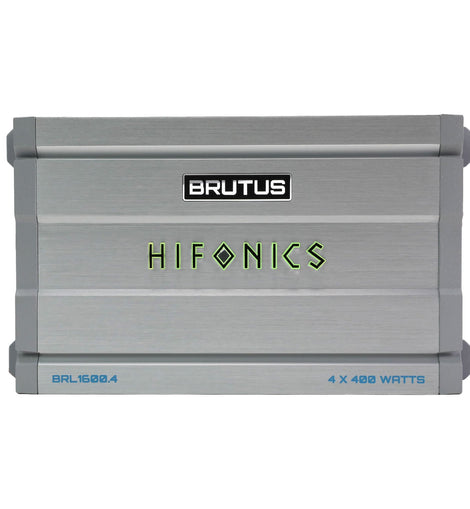

• Stylized Badging
  Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier's logo reflects the audio level, making it useful for gain adjustment.
• Triple Protection Circuits
  Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safe guards to protect your audio system and vehicle under most circumstances.

Specifications:

• Type
  Amplifier
• Brand
  Hifonics
• Series
  BRUTUS BRL
• Category
  Mobile
• Condition
  New
• Color
  Black
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Amp Class
  Super D Class™
• Amp Total Channels
  4
• Amp Max Power (watts)
  1600
• Amp Power @ 2 Ohms (ch x watts)
  4 x 450
• Amp Power @ 4 Ohms (ch x watts)
  4 x 300
• Amp Mono Bridged @ 4 Ohms (ch x watts)
  2 x 880
• Amp Crossover
  Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave
  40Hz-2KHz
• Amp Variable Low Pass Crossover 12dB per Octave
  40Hz-2KHz
• Amp Tone Control / Parametric EQ
  Built-in Bass Control
• Amp Variable Voltage
  0.2-9V
• Amp Signal to Noise
  88dB
• Amp Frequency Response
  15Hz-30kHz
• Amp Total Harmonic Distortion (THD)
  < 0.2%
• Amp Power Terminal 12v/GND
  2 AWG
• Amp Speaker Terminal Wire Gauge
  12 AWG
• Amp Fusing
  External 100A
