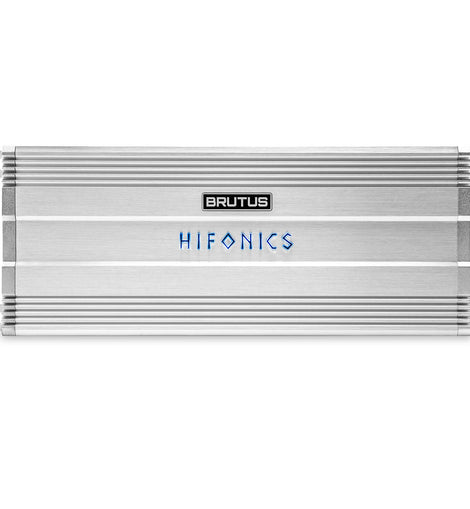

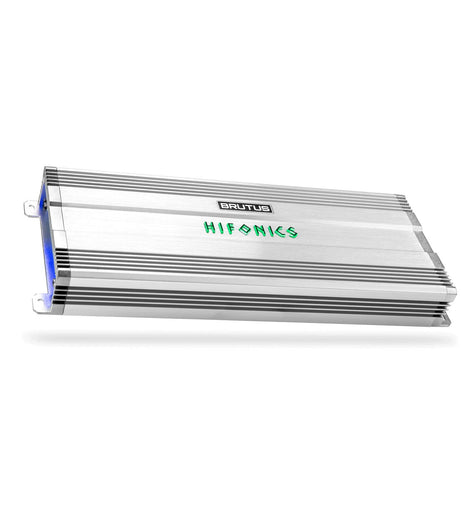

Hifonics BRUTUS BG-3000.1 mono block amplifier delivering 3000 watts with a built-in UV meter and dual toroidal transformer PWM power supply.

General Features:

• Compatible Vehicle Fitment
  Universal
• Ultra-Low EMI Design
  Shielded inductors are used in the BG series for increased sound quality that produces ultra-low EMI.
• Mass-Loaded Heat Sink
  The mass-loaded extruded aluminum heat sink results in better thermal management and output performance.
• High-End Preamplifier Circuit
  Accepts a wider range of input signals.
• RCA Inputs
  Nickel-plated RCA jacks create an efficient connection that are corrosion-resistant.
• High Tolerance Output Device
  BRUTUS BG amplifiers have MOSFETS designed for high output power and fast thermal dissipation through a SMT process that produces ultra-low EMI.
• Operation Mode
  Mono only
• Clean Board Construction
  4-layer PCB design, using a thinner substrate, improves heat dissipation and enhances performance stability.
• Class / Topology
  BG amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range.
• Power Supply
  Dual toroidal transformers paired with a high-frequency PWM drive results in higher power capacity compared to other transformer designs. This whole system is protected by a current overload limiter.
• Delayed Turn-On Function
  Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops.

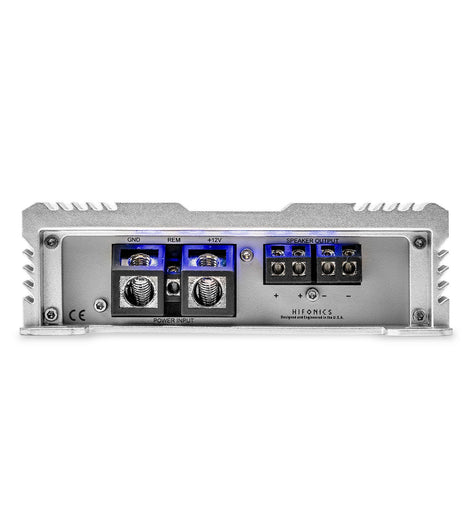

• Connection Type
  Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.

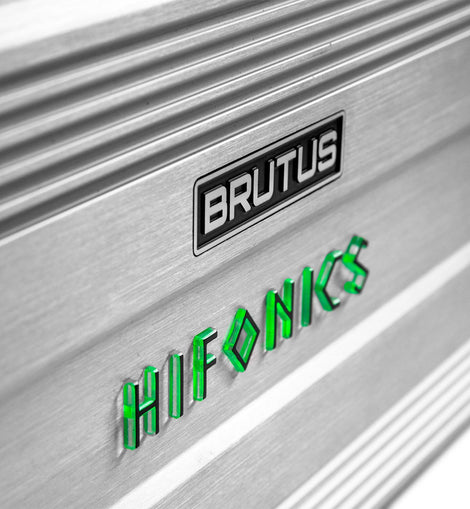

• Stylized Badging
  Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier's logo reflects the audio level, making it useful for gain adjustment.
• Triple Protection Circuits
  Over/under voltage, short circuit, and thermal protection circuits give you peace of mind that your investment (audio system and vehicle) will be protected under nearly every circumstance.

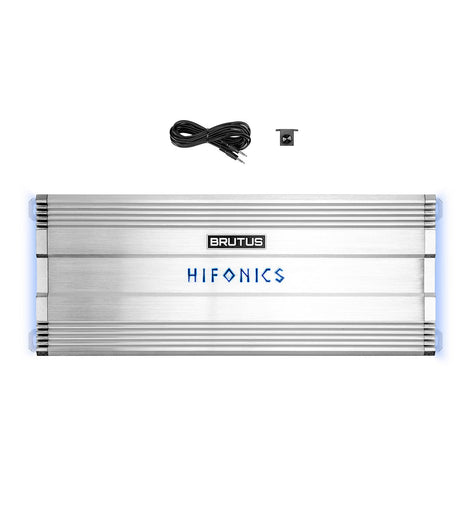

• Bass Remote Included
  The mono amplifier have an included bass remote that allows you to adjust the gain level relative to the setting on the amplifier's end panel.

Specifications:

• Type
  Amplifier
• Brand
  Hifonics
• Series
  BRUTUS BG
• Category
  Mobile
• Condition
  New
• Color
  Silver
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Amp Class
  Super D Class™
• Amp Total Channels
  1
• Amp Max Power (watts)
  3000
• Amp Power @ 1 Ohm (ch x watts)
  1 x 3000
• Amp Power @ 2 Ohms (ch x watts)
  1 x 2000
• Amp Power @ 4 Ohms (ch x watts)
  1 x 1400

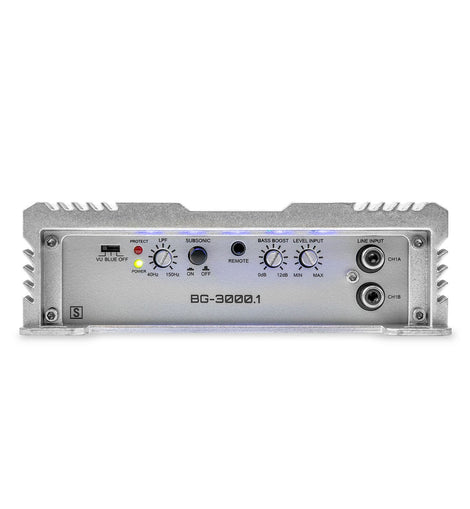

• Amp Crossover
  Variable Electronic 12dB Per Octave
• Amp Variable Low Pass Crossover 12dB per Octave
  40Hz-150Hz
• Amp Tone Control / Parametric EQ
  Built-in Bass Control
• Amp Bass Boost
  0-12dB
• Amp Subsonic Filter
  Switched On/Off
• Amp Variable Voltage
  0.2-6.5V
• Amp Signal to Noise
  75dB
• Amp Frequency Response
  10Hz-180Hz
• Amp Total Harmonic Distortion (THD)
  < 0.1%
• Amp Power Terminal 12v/GND
  1/0 AWG
• Amp Speaker Terminal Wire Gauge
  12 AWG
• Amp Fusing
  External 250A

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
