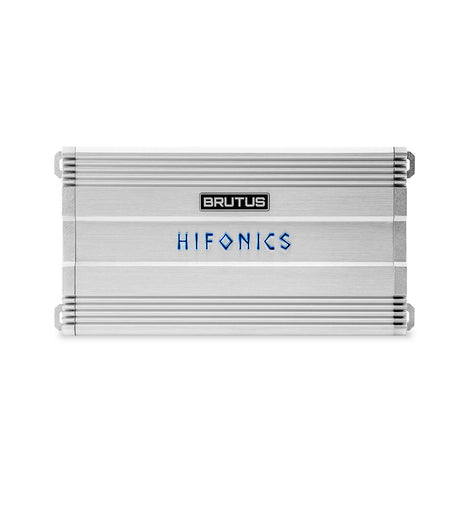

Hifonics BRUTUS BG-1000.2 two channel amplifier delivering 1000 watts with a built-in UV meter and dual toroidal transformer PWM power supply.

General Features:

• Compatible Vehicle Fitment
  Universal
• Ultra-Low EMI Design
  Shielded inductors are used in the BG series for increased sound quality that produces ultra-low EMI.
• Mass-Loaded Heat Sink
  The mass-loaded extruded aluminum heat sink results in better thermal management and output performance.
• High-End Preamplifier Circuit
  Accepts a wider range of input signals.
• RCA Inputs
  Nickel-plated RCA jacks create an efficient connection that are corrosion-resistant.
• High Tolerance Output Device
  BRUTUS BG amplifiers have MOSFETS designed for high output power and fast thermal dissipation through a SMT process that produces ultra-low EMI.
• High Level Inputs
  Easily tie into OEM audio systems that do not offer RCA output to maximize after-market amplifier power.
• Operation Mode
  2 channel operation mode allows either stereo or mono bridged operation.
• Clean Board Construction
  4-layer PCB design, using a thinner substrate, improves heat dissipation and enhances performance stability.
• Class / Topology
  BG amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range.
• Power Supply
  Dual toroidal transformers paired with a high-frequency PWM drive results in higher power capacity compared to other transformer designs. This whole system is protected by a current overload limiter.
• Delayed Turn-On Function
  Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops.

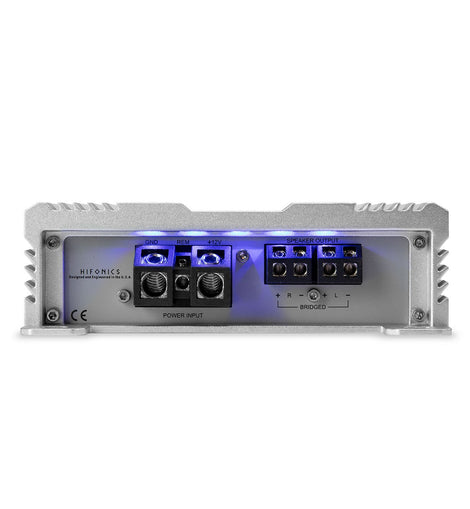

• Connection Type
  Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
• Full-Range RCA Outputs for Signal Pass Through
  One pair of RCA connectors for a full range, Ch1 & Ch2 output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables.
• Stylized Badging
  Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier's logo reflects the audio level, making it useful for gain adjustment.
• Triple Protection Circuits
  Over/under voltage, short circuit, and thermal protection circuits give you peace of mind that your investment (audio system and vehicle) will be protected under nearly every circumstance.
• Auto Turn-On
  The DC SIGNAL SENSE switch will allow the amplifier to turn on when a signal is received on the high level inputs. An amplifier remote turn on wire is not needed to power on the amplifier. This feature can also be turned off.

Specifications:

• Type
  Amplifier
• Brand
  Hifonics
• Series
  BRUTUS BG
• Category
  Mobile
• Condition
  New
• Color
  Silver
• Warranty
  1 Year
• Compatible Vehicles
  Universal
• Amp Class
  Super D Class™
• Amp Total Channels
  2
• Amp Max Power (watts)
  1000
• Amp Power @ 2 Ohms (ch x watts)
  2 x 575
• Amp Power @ 4 Ohms (ch x watts)
  2 x 300
• Amp Mono Bridged @ 4 Ohms (ch x watts)
  1 x 1000
• Amp Crossover
  Variable Electronic 12dB Per Octave, APF, HPF, LPF
• Amp Variable High Pass Crossover 12dB per Octave
  50Hz-5KHz
• Amp Variable Low Pass Crossover 12dB per Octave
  50Hz-5KHz
• Amp Bass Boost
  0-12dB
• Amp Variable Voltage
  0.2-7V
• Amp Signal to Noise
  105dB
• Amp Frequency Response
  10Hz-30kHz
• Amp Total Harmonic Distortion (THD)
  < 0.1%
• Amp Speaker Level Audio Inputs
  Yes
• Pre-amp Audio Outputs
  Pass Thru RCA
• Amp Power Terminal 12v/GND
  4 AWG
• Amp Speaker Terminal Wire Gauge
  12 AWG
• Amp Fusing
  External 80A
