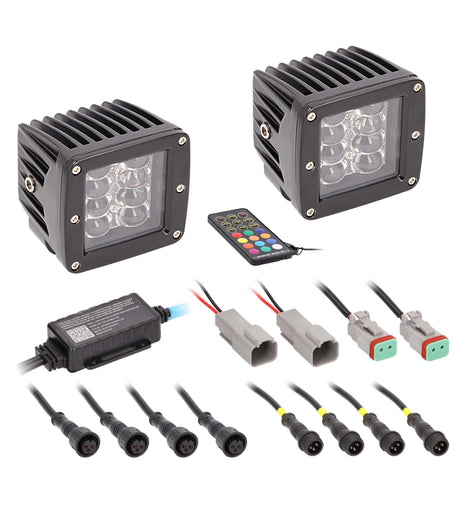

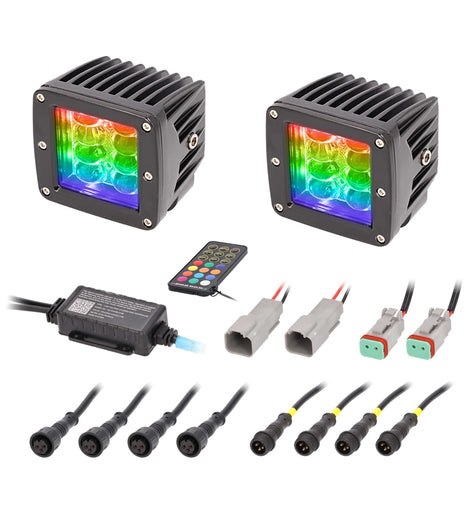

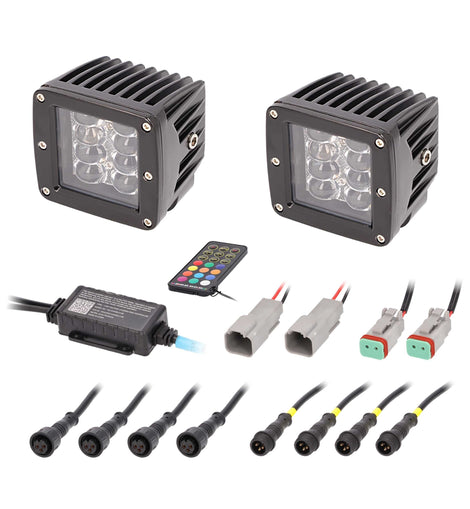

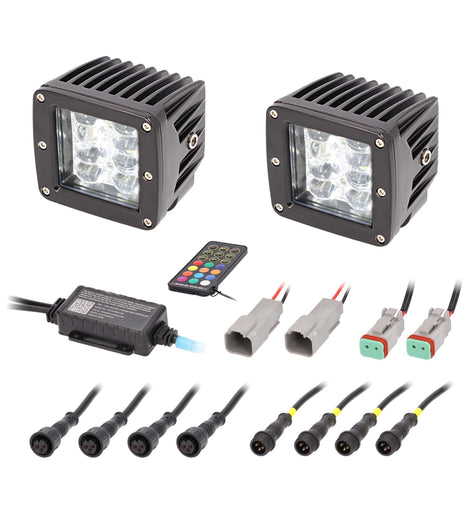

Heise HE-CHASE-CLKT Standard Mount Chasing LED Cube Lights

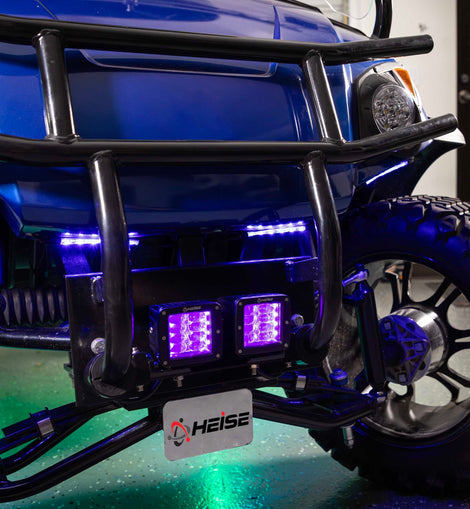

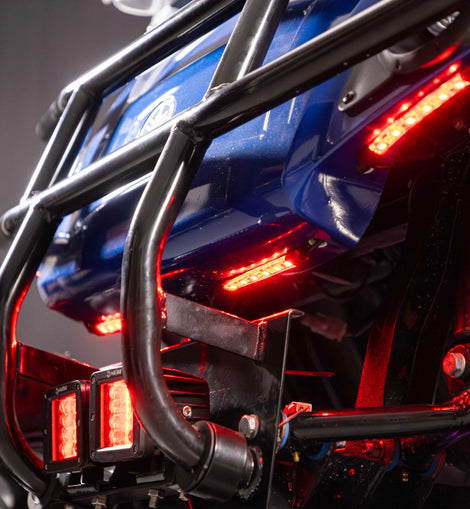

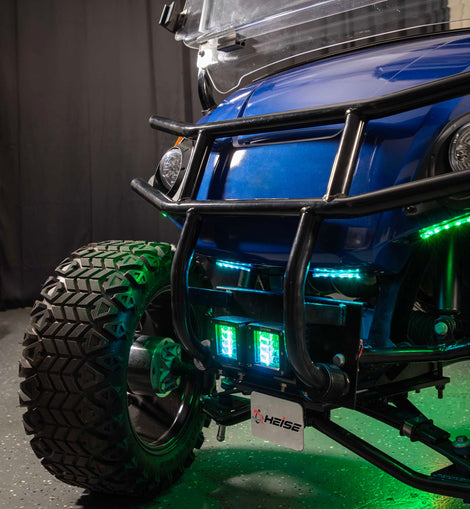

Upgrade your vehicle with these Standard Mount Chasing LED cube lights! They are constructed from lightweight die-cast aluminum, are water-resistant, and feature a durable polycarbonate lens. These lights connect to the included Heise Connect Chasing Controller and can be remotely controlled using the Heise Connect mobile app to choose from 170+ pre-programmed moving patterns, independent left and right turn signal triggers, a brake trigger, a music sync function, and more. Upgraded optics provide indirect placement allowing more control of the location and pattern of the beam.

General Features:

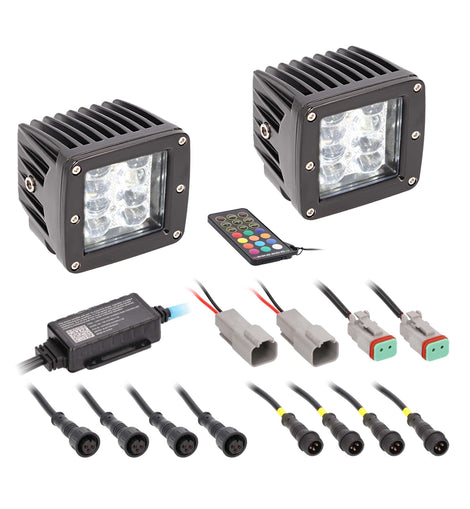

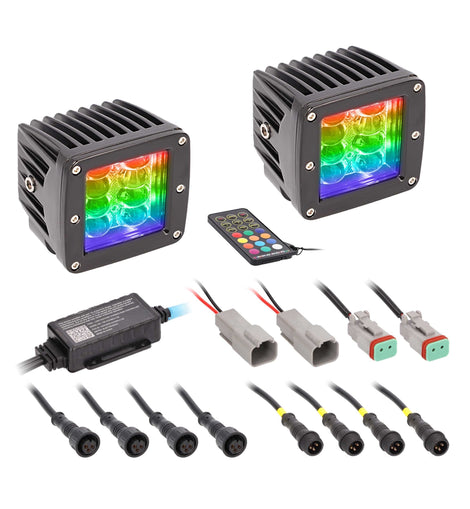

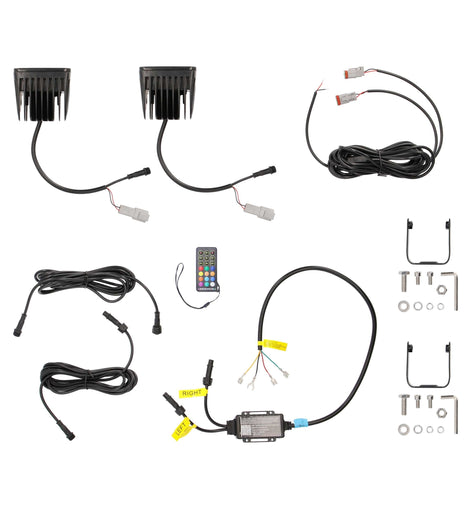

• Set of two cube lights

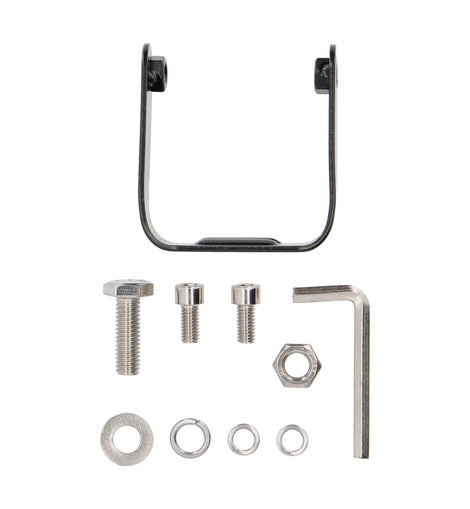

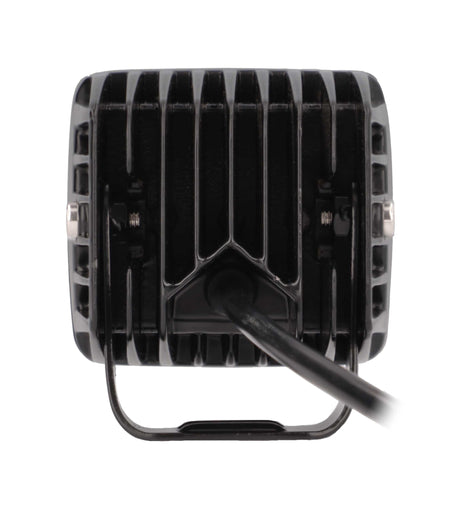

• Bracket mount
• Addressable LED s
• Heise Connect Chasing Controller included
• Wattage per light: 22W

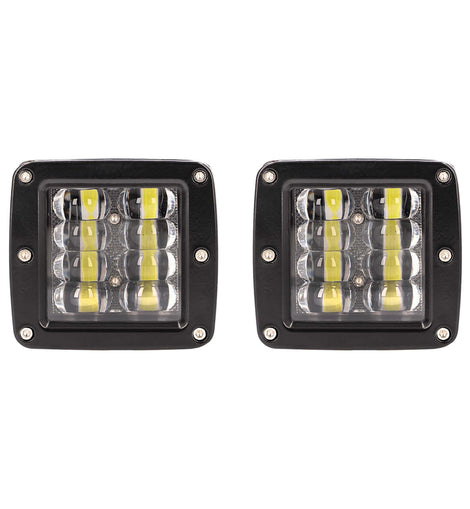

• Number of white LED s: 16
• Number of chasing LED s: 16
• Raw lumens per light: 2860lm
• Lux per light at 10m: 20.47 lx
• Current consumption per light @ 13.8V: 1.6A
• IP rating: IP67
• Input voltage: 9-36V DC
• Color temperature: 6000K
• Beam pattern: Spot
• Beam angle: 90°

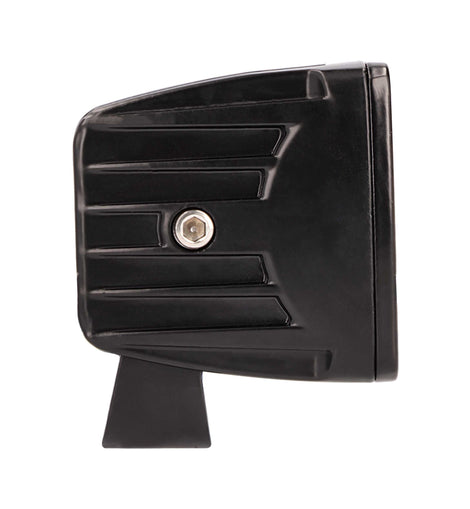

• Dimensions: 2.95"x4.72"×3.54"
• Housing material: Die-cast aluminum
• Housing color: Black
• Membrane: Sealed
• Lens material: Polycarbonate
• Hardware material: Aluminum
• Electronics: Integrated epoxy-encapsulated
• Operating temperature: -40°F to 140°F
• Protection: Reverse polarity

Heise Connect Low Voltage Chasing Controller
HE- CHASELV -CB

This controller is specifically designed to work with Heise Chasing LED s, making customization and control of these products easy. It features two wireless control options; an included remote control or using the Heise Connect downloadable app for smartphone or tablet. Users can easily group multiple controllers through the app, and every controller has left and right zones for independent turn signal control wires and a dedicated brake light trigger wire. This product works with all pre-existing Heise Chasing products.

• Addressable LED controller
• 170+ color-changing patterns
• Turn signal function (both left and right)
• Brake function
• DIY pattern function
• Music sync function
• App controlled (Heise Connect app) or via the included RF card remote
• Max load 10A
• Water-resistant Heise connector

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.

Heise Connect App
The Heise Connect app allows users to remotely control Heise LED lighting products from the palm of their hand. The app automatically connects via Bluetooth® and detects the type of control box connected to the app; RGB , RGBW , or Chasing, allowing groups of all products to be used and controlled within the same mobile app. A selectable color wheel lets users choose from 16 million RGB color options and a true white light color option available with RGBW products. Users can also select from 24 pre-programmed patterns for RGB and RGBW and 170+ pre-programmed moving patterns for Chasing. There is also a DIY pattern option for Chasing products that allows for selecting up to 16 colors and 3 motion effects. The app also features independent left and right turn signal triggers, a brake trigger, and a music sync function.

Information on Heise Connect App .
