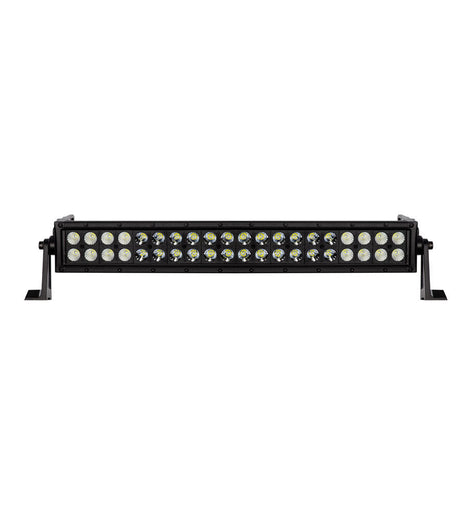

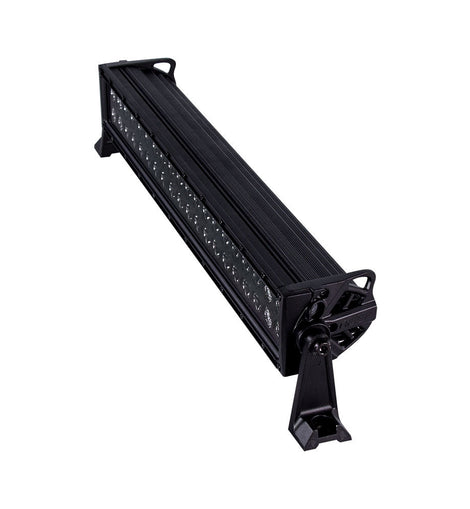

Heise HE-BDR22 Dual Row Blackout Lightbar - 22 Inch, 40 LED
Heise HE-BDR22 Dual Row Blackout Lightbar - 22 Inch, 40 LED
A new and improved design makes the latest generation of Heise Blackout Series LED lights a versatile lighting solution for different vehicles and uses. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement, allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and the driver's lighting coverage needs.
The hybrid 90° flood and 8° spot beam pattern combination delivers the best of both worlds with intense spotlights in the center flanked by widebeam lights on each side. Heise's protective vent port allows for internal moisture to escape and prevents any external moisture from entering the lightbar housing.
General Features:
- Universal 22" Blackout Series LED light bar
- Black Die-cast Aluminum housing and mounting brackets
- Reverse polarity protection
- Water-resistant IPX-67 Rating
- Combo Beam Pattern: Flood: 90°, Spot: 8°
- Lens material: Polycarbonate
- Hardware: 316 Stainless steel
- Membrane: Gore Protective Vent Port
- Integrated epoxy-encapsulated electronics
- Includes rear/side brackets and mounting hardware
Specifications:
- Color tempature: 6000K
- Lens per bar/in total: 40 LEDs
- Raw Lumens/Lux: 9600 lm / 655 lx
- Wattage: 120 watts
- Input Voltage: 10 - 30V
- Current Consumption 6.3A @ 13.8V
- Operating temperature: -40°C to +60°C

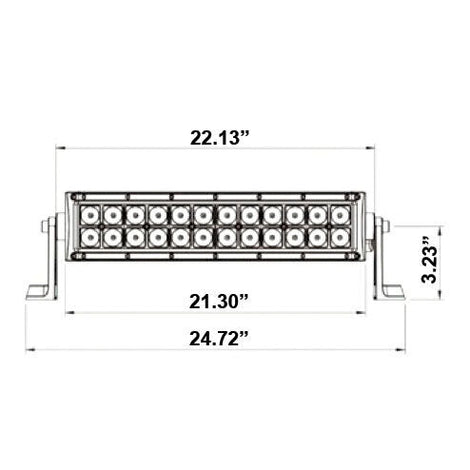

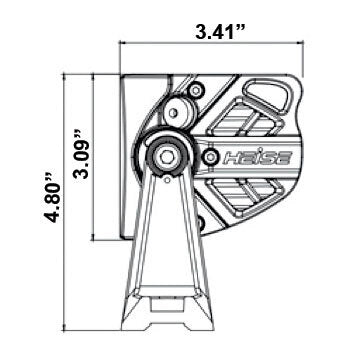

- Dimensions: 22.13"L x3.41"W x3.09"H
- Hole Dimensions:
- Brackets turned outward: 23.75"
- Brackets turned inward: 21.31"
- 1-year Manufacturer's Warranty
- MFR #: HE-BDR22
Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
