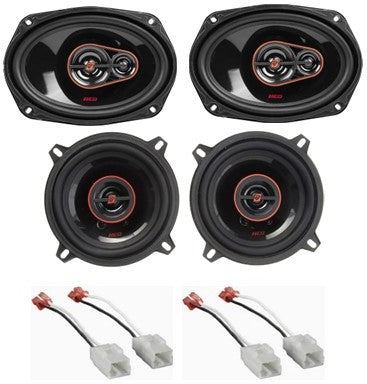

Cerwin Vega H7693 H752 Front and Rear Door Speaker Upgrade Compatible Fit 2002 2008 Dodge Ram 1500 & 2 Pair Metra 72-6514 Speaker Harness

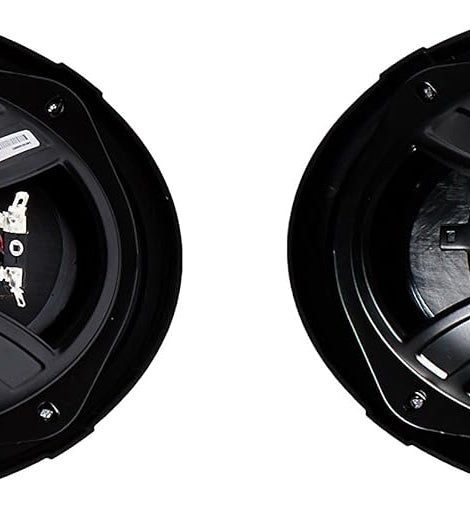

Cerwin Vega H7693 HED Series 6"x9" 3-Way Coaxial Speakers

Upgrade your sound with the HED Series Speakers from Cerwin-Vega —the ultimate choice for enhancing your vehicle's audio experience. Say goodbye to factory-installed speakers and embrace a new level of performance that delivers both exceptional loudness and crystal-clear clarity. Whether you're cruising down the road or blasting your favorite tracks, the HED Series ensures your music sounds its best.

General Features:

• SPEAKER SIZE - 6X9."

• SPEAKER TYPE - TRI AXIAL, SPEAKER TYPE - CO AXIAL

• OHMS (PER COIL) - 4

• NUMBER OF VOICE COILS - SINGLE

• CONE MATERIAL - POLYPROPYLENE

• DIAPHRAGM MATERIAL - MYLAR

• BASKET MATERIAL - STAMPED STEEL

• MAGNET TYPE - FERRITE (CERAMIC)

• SURROUND MATERIAL - TREATED FOAM

• CROSSOVER INCLUDED - YES - INTERNAL

• FREQUENCY RESPONSE (HZ): 50HZ-20KHZ

• VOICE COIL DIAMETER - INCH (MM) 1"

• THIELE/SMALL PARAMETERS

• SENSITIVTY (1W/1M): 86.5DB

• QTS: 53.5HZ

• FREE AIR RESPONSE FS (HZ): 53.5HZ

• VAS (L): 24.4

• XMAX (MM): 2.625(MM)

• POWER HANDLING RMS: 70W

• POWER HANDLING MAX: 420W

• MOUNTING DEPTH: 3.3" (86MM)

• MOUNTING DIAMETER: 7.71" X6.4" (196MMX163MM)

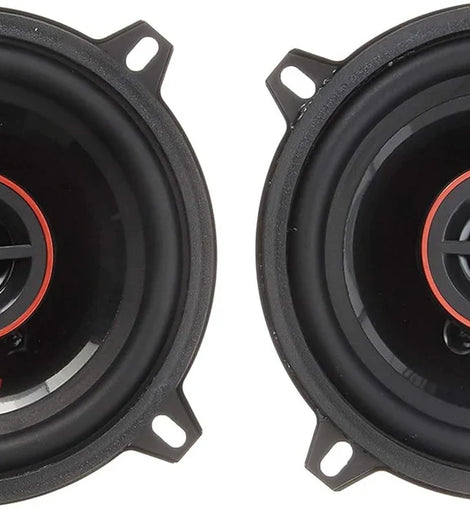

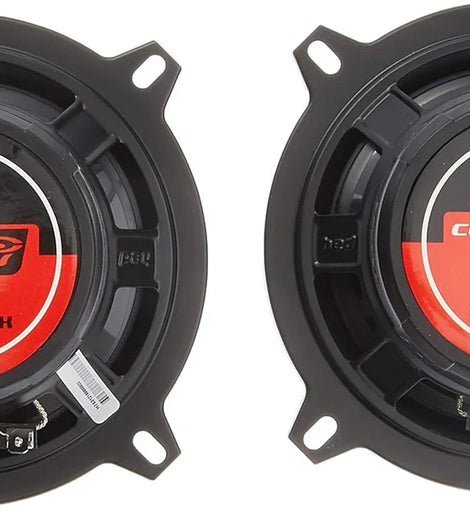

Cerwin Vega H752 5.25" 5.25" 550W 2-way coaxial speakers

Loudness and clarity define HED SERIES SPEAKERS. With the most complete assortment of size ranges in the CERWIN-VEGA MOBILE SPEAKER lineup, HED SERIES SPEAKERS has you covered

General Features:

• 5.25″ HED Series Coaxial Car Speakers
• Power Handling:
• Peak: 550 watts per pair / 275 watts each
• RMS: 90 watts per pair / 45 watts each
• Graphite-injected reinforced spun cone to give premium audio versatility
• Premium rubber surround for superior durability
• 1″ black polypropylene dome tweeters
• Linear woven treated red spider
• Stamped steel vented frame for increased airflow and performance
• Top-mount Depth: 1.85″
• Cutout Dimensions: 4.409″
• 4 ohms impedance
• Frequency Response: 60 - 20,000 Hz
• Sensitivity: 82.5 dB
• Authorized Internet Dealer

• 1-year Manufacturer's Warranty
