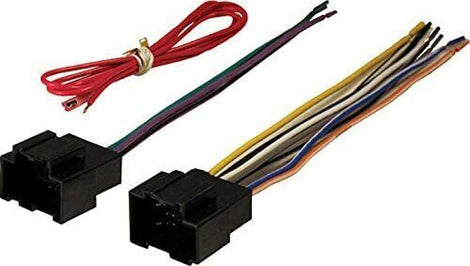

American International GWH406 Wiring Harness 2006-2007 GM, GMC, PONTIAC, SATURN

Aftermarket Radio Installation Wire Harness

For the installation of an aftermarket radio. This harness connects the aftermarket stereo harness to the vehicle factory harness providing a secure connection with pin-to-pin vehicle-specific compatibility to avoid wire splicing. In addition, this wire harness meets the standard EIA color code simplifying installation. If you sell your vehicle simply unplug the aftermarket radio and plug in the factory radio.

General Features:

• Plugs into car harness at radio
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
• Simply plug and play installation, no cutting required
• Designed for a standard audio system, premium audio may require a different harness
• Clearly marked color-coded wires
• Ideal for any aftermarket radio
• 18 gauge high-quality wire
• Direct OEM fit connection

Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Orange - Dash Light Dimmer/Illumination
• Green - Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White with Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple with Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray with Black Stripe - Right Front Speaker (-)

Compatible with the following vehicles (fits):

Buick

• Enclave 2008-2015
• Lucerne 2006-2011

Cadillac

• DTS 2006-2011
• Escalade 2007-2014
• SRX 2007-2013

Chevy

• Avalanche 2007-2013
• Captiva 2012-2015
• Equinox 2007-2009
• Express 2008-2015
• Impala 2006-2014
• Monte Carlo 2006-2007
• Silverado 1500 2007-2013
• Silverado 2500 2007-2014
• Silverado 3500 2007-2014
• Suburban 2007-2014
• Tahoe 2007-2014
• Traverse 2009-2012

GMC

• Acadia 2007-2015
• Savana 2008-2015
• Sierra 1500 2007-2013
• Sierra 2500 2007-2014
• Sierra 3500 2007-2014
• Yukon 2007-2014

Hummer

• H2 2008-2009

Pontiac

• G5 2007-2010
• Solstice 2006-2009
• Torrent 2007-2009

Saturn

• Aura 2007-2009
• Ion 2006-2007
• Outlook 2007-2009
• Sky 2007-2009
• Vue 2006-2009

Suzuki

• XL-7 2007-2009
