Galaxy Stage GS-2003 3' Long 20.5" Box Truss with Bolts - Professional 6061-T6 Aluminum GS20 Series Truss

Key Features:

• Professional GS20 Series box truss

• 3-foot heavy-duty truss section

• Constructed from 6061-T6 aluminum

• Engineered in the United States

• Manufactured by TUV-certified welders

• Industry-standard bolt connection design

• Compatible with other truss systems using the same bolt pattern

• Includes Grade-8 bolt hardware

• Lightweight and corrosion-resistant

• Suitable for indoor and outdoor applications

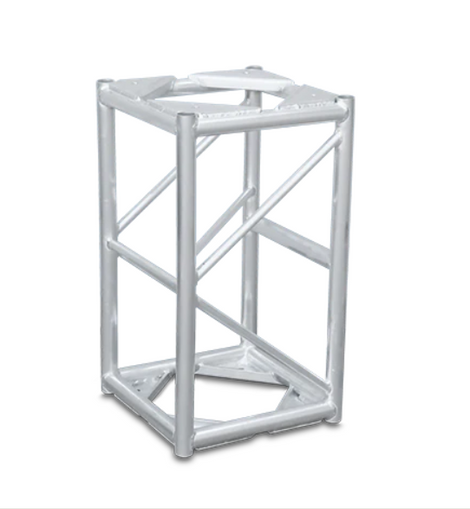

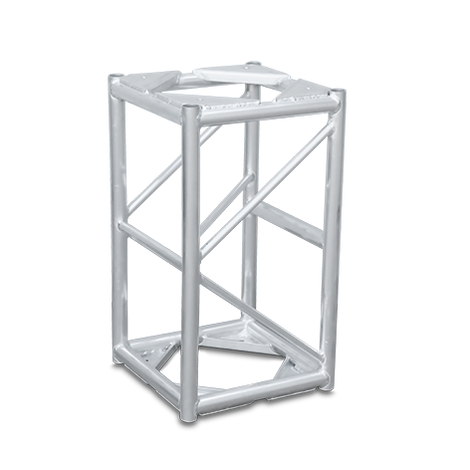

The Galaxy Stage GS-2003 is a professional-grade 3-foot box truss section from the Galaxy Stage GS20 Series. Designed and engineered in the United States, this heavy-duty truss is manufactured from high-strength 6061-T6 aluminum by TUV-certified welders to provide exceptional strength, reliability, and long-term durability.

Featuring a 20.5" x 20.5" square truss profile with 2" main chords and reinforced 1" diagonal bracing, the GS-2003 is ideal for supporting lighting fixtures, LED walls, video displays, speakers, stage roofs, and special effects equipment. Its industry-standard bolt connection system allows seamless integration with other professional truss brands utilizing the same bolt pattern and 5/8" Grade-8 steel hardware.

Perfect for concerts, touring productions, exhibition displays, theaters, houses of worship, trade shows, and permanent installations, the GS-2003 offers professional performance in demanding environments.

General Features:

• 3' Professional GS20 Box Truss Section

• 20.5" x 20.5" Square Truss Profile

• High-Strength 6061-T6 Aluminum Construction

• Heavy-Duty 2" Main Chords

• Reinforced 1" Diagonal Bracing

• Industry-Standard Bolt Connection System

• Compatible with Similar Bolt Truss Brands

• Manufactured by TUV-Certified Welders

• Includes Grade-8 Hardware

• Designed for Professional Stage, Lighting & Rigging Applications

Specifications:

• Model: GS-2003

• Series: GS20

• Type: Box Truss Section

• Length: 3 ft (36")

• Width: 20.5" (520mm)

• Height: 20.5" (520mm)

• Main Tube Diameter: 2" (50mm)

• Diagonal Bracing Diameter: 1" (25mm)

• Wall Thickness: 1/8" (3mm)

• Material: 6061-T6 Alloy Aluminum

• Connection Type: Bolt Truss

• Hardware Included: Grade-8 Bolt Set

• Manufacturing: TUV Certified Welders

Product Dimensions:

• Length: 36"

• Width: 20.5"

• Height: 20.5"

Weight (Approximate):

• Product Weight: 36 lbs (16.3 kg)

• Shipping Weight: 42 lbs (19 kg)

What's Included:

• (1) Galaxy Stage GS-2003 3' Long 20.5" Box Truss

• Complete Grade-8 Bolt Connection Set

Applications:
Ideal for stage roof systems, concert productions, lighting grids, LED wall structures, exhibition displays, theaters, churches, trade shows, touring productions, and professional event installations.

Package Dimensions (Approximate):

• 37" x 22" x 22"

• Shipping Weight: 42 lbs (Approx.)
