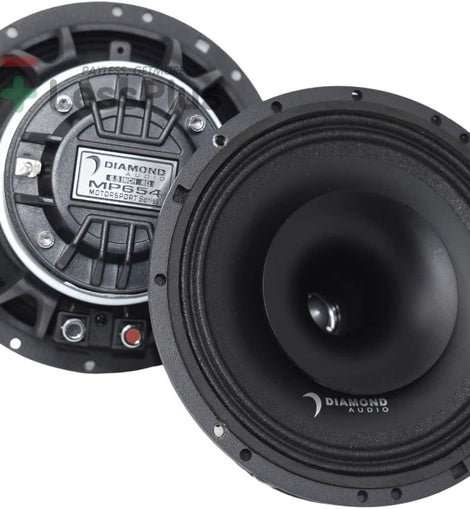

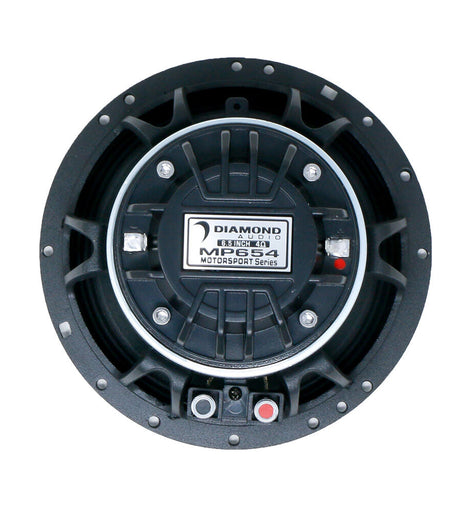

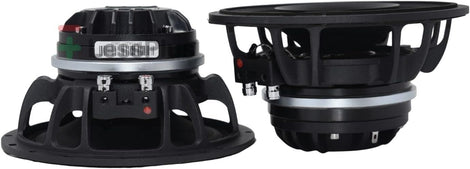

Diamond Audio MP654 Motorsport Series 6.5" Pro Full-Range Co-Ax Horn Speakers
Diamond Audio MP654 Motorsport Series 6.5" Pro Full-Range Co-Ax Horn Speakers
These speakers are louder, play lower, with more authority, and sound better right out of the box than any other pro audio speaker for Harley applications. With an oversized voice coil, extreme sensitivity for unreal output, high heat dissipation neodymium magnets, and mounting dimensions specific to late model Harley fairings, these speakers are at the very top of the food chain.
General Features:
- 150W RMS/300 MAX Power Handling
- Ferrite Strontium High Temp Magnet structure
- Heavy Duty Die-cast Aluminum Basket
- 1.5" 4 Ohm - Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
- 1.0" 8 Ohm - Single Layer High Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- Frequency Response: 110Hz -18Khz
- High Sensitivity 101dB 1W/1M
- 12dB Crossover
- Mounting Depth: 3.33" / 84.6mm
- Mounting Diameter: 5.73" / 145.5mm
- SPL (dB-MidBass) 92.7
- SPL (dB-Tweeter) 107
- Re(Ω)[series] 3.2
- Qms 10.73
- Qes 0.47
- Qts 0.45
- Fs(Hz) 103.3
- Vas(L) 6.6
- Cms(mm/N) 0.24
- Mms(g) 9.7
- Sd(m2) 138.9
- BL(T*M) 6.5
- Xmax(mm) 1.0
- Pwr(W) NOM/MAX 150/**300
- Total Diameter 6.52 (165.5) in. (mm)
- Mounting Diameter 5.73 (145.5) in. (mm)
- Mounting Depth 3.33 (91.6) in. (mm)
- Total Depth 3.88 (98.6)in. (mm)
- Magnet Diameter 3.94 (100) in. (mm)
