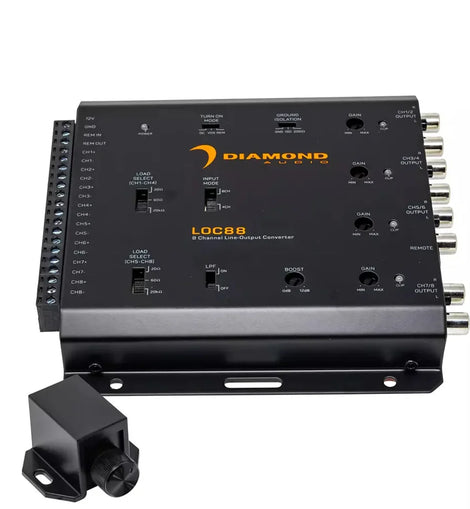

Diamond Audio LOC88 LOC Series 8-Channel Line-Output Converter (8 IN/8 OUT)

The Diamond Audio LOC88 8 IN / 8 OUT Line Output Converter is a sophisticated and adaptable tool for integrating aftermarket amplifiers with factory audio systems. Its comprehensive feature set, including adjustable load settings, ground isolation options, gain control, and advanced turn-on modes, ensures optimal signal processing and compatibility. Designed for durability and dependable operation, the LOC88 enhances your car audio system, providing superior sound quality and flexibility.

The Diamond Audio LOC88 is a versatile and advanced 8-input/8-output line output converter designed to seamlessly integrate factory audio systems with aftermarket amplifiers and other audio components. This device ensures optimal signal processing and compatibility, making it an essential tool for upgrading your car audio system.

General Features:

• Speaker Inputs: Connect to Head Unit or Amplifier Speaker Outputs: Receives the audio signal that your amplifier can't handle directly, ensuring compatibility with factory systems.
• Outputs: Connect to Amplifier Inputs: Processes the signal to match the requirements of your aftermarket amplifier, ensuring clean and powerful audio output.
• REM In and REM Out: REM Turn-On Input: Activates the device using a remote turn-on signal.
• REM Out: Provides a remote turn-on signal to one aftermarket amplifier, ensuring synchronized power control.
• Load Select: 20-ohm/60-ohm/20k-ohm Options: Adapts to various OEM head units that require specific resistance loads to output audio signals. Select the appropriate load to ensure proper functionality.
• Ground Isolation: Multiple Isolation Settings: Helps eliminate alternator whine or ground noise by trying different grounding configurations.
• GND: Power supply shares the same ground as the audio.
• ISO: Power supply ground is separated from the audio.
• 200-ohm: Adds a 200-ohm load between the power ground and audio ground.
• Gain Adjustment: 9.5V RMS Output: Adjusts the output signal for each channel pair to match the input sensitivity of your amplifiers.
• Clip Indicators: LED Indicators: Light up when the output signal gets distorted, helping to prevent clipping and ensure clean audio output.
• Low Pass Filter (LPF): Adjustable LPF: Filters signals above 250 Hz for the rear channels, ideal for subwoofer integration.
• Bass Boost: 0-12dB Boost at 45Hz: Enhances low-frequency output, providing a richer bass experience.
• Turn-On Modes: REM: Traditional remote turn-on method.
• DC Offset: Activates when the head unit is on, using a DC offset signal.
• Audio Detection (AUD): Activates when the head unit plays audio, whether radio, CD, or Bluetooth.
• Input Mode: 4CH to 6/8 Outputs: Distributes the signal from 4 speaker level inputs to 6 or 8 outputs, with LPF and Boost settings still applicable.
• Remote Level Control: Optional Remote Level Control for Rear Channels: Provides attenuation control for the rear channels, allowing for easy adjustment from the driver's seat.

Specifications:

• Channels: 8 In/8 Out
• Operating Voltage: 9V-16V
• Max Input Level(20kHΩ Load Setting): 40V/400W@ 4Ω
• Auto Turn On: DC Offset / Remote
• Output Voltage MAX @ 13.8V: 9.5V RMS
• Turn On Trigger (DC-Offset):3V-7V
• Load Input Impedance: 20Ω, 60Ω, 20kΩ (Default 20kΩ)
• Output Impedance: <120Ω
• Variable Gain Adjustment: -28dB - +1dB
• Signal To Noise: >110dBA @ 6.4v Output
• THD+N: <0.01%
• Input Sensitivity: .05V-40V
• Frequency Response: 10Hz-20Khz
• Current Draw(Max): 110mA
• Low Pass Filter: <250Hz (Sub Channel)
• Bass Boost: 0dB - +12dB (Sub Channel)
• Clip Indicator: 4 (1 Per Output)
• Remote Level Control: 0dB - 30dB
• Terminal Gauge: 18 AWG (Quick Connect)
