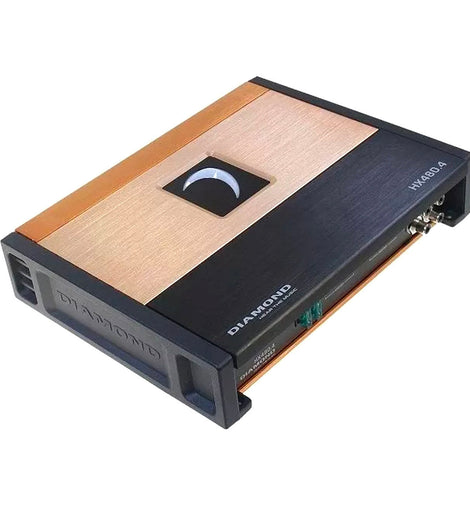

Diamond Audio HX480.4 4-Channel 480W RMS Full Range Class D Amplifier
Diamond Audio HX480.4 4-Channel 480W RMS Full Range Class D
AmplifierAudiophile-grade high tolerance components - 4-layer PCB board with balanced differential inputs - full-range digital class-d Ir chip sets - fine-tuned variable - crossover and phase control- top mounted controls for convenient amplifier adjustment turn to hex series amplifiers for superior sound quality and unparalleled power for the ultimate audiophile system set up. Composed of high-tolerance grade components and tuning adjustments to fit your listening desires, hex series amplifiers are the choice for those who expect the best!
General Features:
- 120 W x 4 @ 4Ω
- 185 W x 4 @ 2Ω
- 370 W x 2 @ 4Ω bridged
- S/N: ≤ 95 dBA / THD: .06%
- Dimensions: (Remote Included): 8.75" x 7.67" x 2" (222 x 195 x 51.5 mm)
- Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
- 4-Layer PCB Board with Balanced Differential Inputs
- Full Range Class D IR Chipset
- "SNAP" Capacitors used Throughout the Circuit
- Audiophile Grade High Tolerance Components
- Spring Steel FET Clips Provide a Cleaner Board Design
- Illuminated Logo / Fully Concealed Mounting
- Output Clip Indicators for Precise Set-Up
- Fine Tuned Fully Variable Crossovers and Phase Control
- Top Mounted Controls for Convenient Amplifier Adjustment
