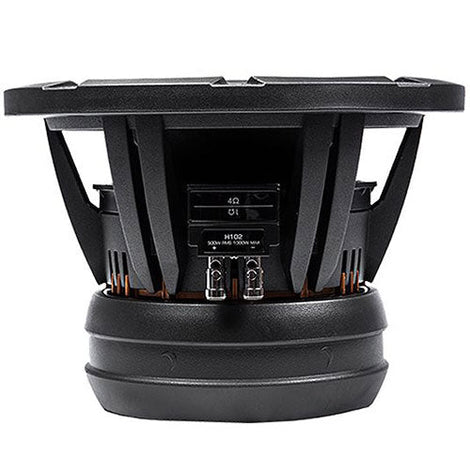

Diamond Audio H104 HEX 10" 500W RMS 4-Ohm Subwoofer
Diamond Audio H104 HEX 10" 500W RMS 4-Ohm Subwoofer
High-density, cast aluminum alloy deep-dawn basket - Ridged, two-part treated paper/fiberglass laminated woofer cone - FEA optimized high-power motor with vented pole piece - Copper anodized aluminum elevated radiating heat sink - Impedance selection via high-power terminal - 3 " high-temp copper voice coil on treated black high-strength aluminum former - Klippel® DA optimized motor and suspension symmetry.
General Information
- 10" Dual 4 ohm HEX Series Subwoofer
- Peak Power Handling: 1000 watts
- RMS Power Handling: 500 watts
- Kevlar Reinforced Semi-Pressed Paper Cone
- Cast aluminum frame
- Core aluminum radial heat sink
- 3" High Temperature Aluminum Voice coil
- 18.3 mm Xmax
- Double-stacked magnet motor structure
- Resonance Frequency (Fs): 36.0 Hz
- Sensitivity: 81 dB
- Recommended sealed box volume: 0.40 cubic feet
- Recommended ported box volume: 1.0 cubic feet
- Top-mount depth: 7"
- Cutout diameter: 9.0"
- Authorized Internet Dealer
-
1-year Manufacturer's Warranty
